C 230 PT - Shindaiwa Brush Cutter (SN: T12220001001 - T12220999999) CARBURETOR WYL-368 Parts Diagram

Brush Cutter

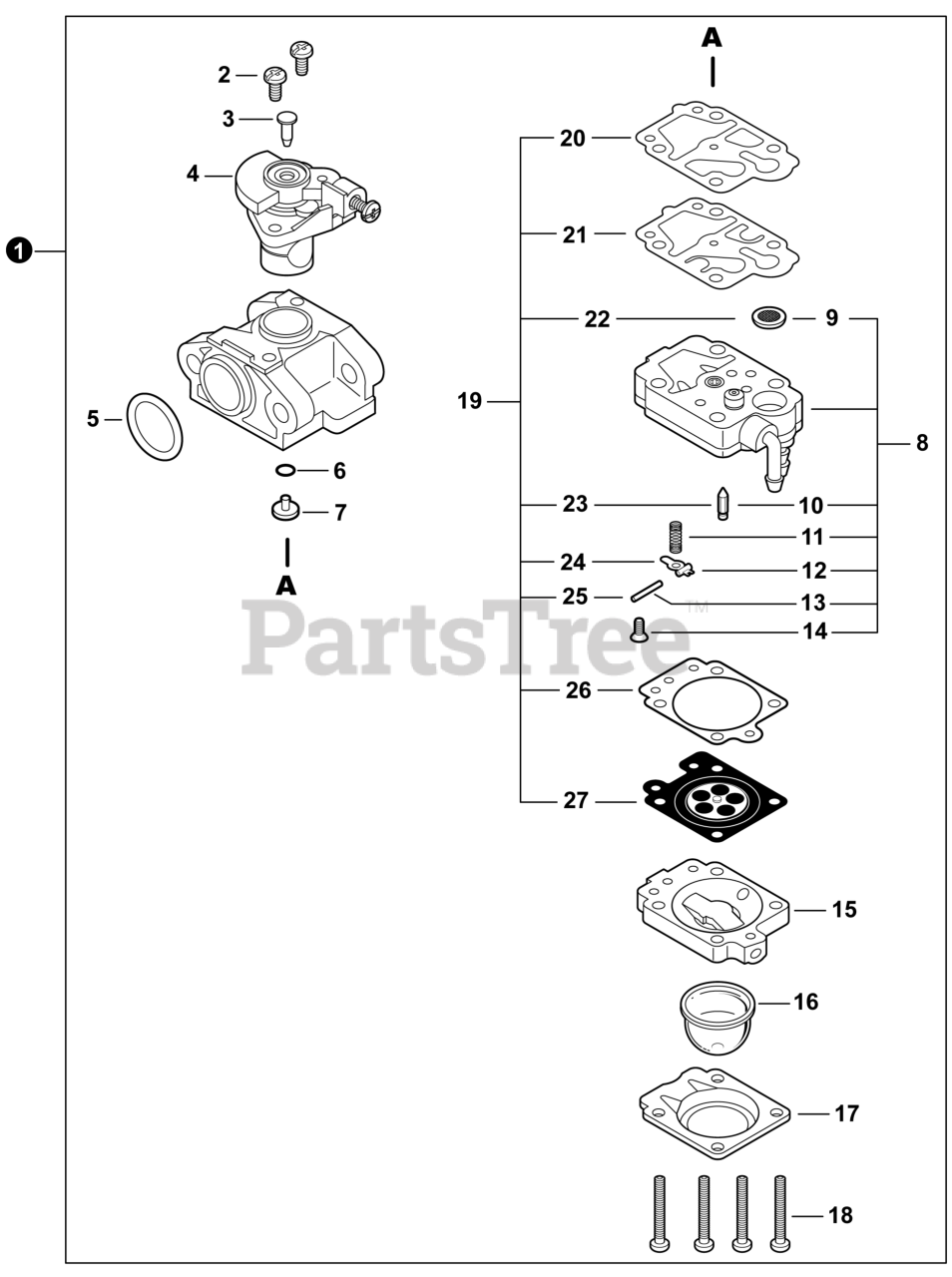

CARBURETOR WYL-368 Parts Diagram

  • Title

1

Echo A021004940

CARBURETOR - WYL-368

Note: Includes ITEMS 2-27

$96.99

$

Usually ships in 2-4 days

0

2

Echo 12311444330

SCREW, THROTTLE COLLAR

$0.99

$

Usually ships in 2-4 days

0

3

Echo 12314644330

PLUG

$0.99

$

Usually ships in 2-4 days

0

4

Echo 12311605160

VALVE ASSY, THROTTLE

$16.99

$

Usually ships in 2-4 days

0

5

Echo 90072000015

O-RING 15

$2.49

$

In Stock, Qty 12

0

6

Echo 12318340630

O-RING
(Superseded to 12318305960)

$19.99

$

In Stock, only 2 left!

0

7

Echo P003000270

JET, MAIN 33L

$3.49

$

Usually ships in 2-4 days

0

8

Echo P003000440

BODY ASSY, PUMP

Note: Includes ITEMS 9-14

$22.99

$

In Stock, Qty 14

0

9

Echo 12312610631

SCREEN, FUEL INLET

$1.99

$

In Stock, Qty 7

0

10

Echo 12313719830

VALVE, INLET NEEDLE

$22.99

$

Usually ships in 2-4 days

0

11

Echo P003000450

SPRING, METERING LEVER

$0.99

$

Usually ships in 2-4 days

0

12

Echo 12312303930

LEVER, METERING
(Superseded to 12312338330)

$7.99

$

In Stock, only 1 left!

0

13

Echo 12313803930

PIN, METERING LEVER

$6.99

$

In Stock, only 4 left!

0

14

Echo 12313905560

SCREW

$0.99

$

Usually ships in 2-4 days

0

15

Echo 12318005560

BODY ASSY, PURGE

$8.99

$

In Stock, Qty 5

0

16

Echo 12318140630

BULB, PURGE

$6.49

$

In Stock, Qty 20+

0

17

Echo 12314205560

RETAINER, PURGE BULB

$5.49

$

In Stock, only 3 left!

0

18

Echo 12311005560

SCREW

$2.99

$

In Stock, Qty 20+

0

19

Echo P003005690

REPAIR KIT, CARBURETOR

Note: Includes ITEMS 20-27

$14.99

$

Usually ships in 2-4 days

0

20

Echo 12312540630

GASKET, FUEL PUMP

$5.99

$

In Stock, only 2 left!

0

21

Echo 12311240630

DIAPHRAGM, FUEL PUMP

$14.99

$

In Stock, only 1 left!

0

22

Echo 12312610631

SCREEN, FUEL INLET

$1.99

$

In Stock, Qty 7

0

23

Echo 12313719830

VALVE, INLET NEEDLE

$22.99

$

Usually ships in 2-4 days

0

24

Echo 12312303930

LEVER, METERING
(Superseded to 12312338330)

$7.99

$

In Stock, only 1 left!

0

25

Echo 12313803930

PIN, METERING LEVER

$6.99

$

In Stock, only 4 left!

0

26

Echo 12314005560

GASKET, METERING DIAPHRAGM

$4.99

$

In Stock, only 1 left!

0

27

Echo P003001850

DIAPHRAGM, METERING

$9.49

$

In Stock, only 2 left!

0
