C 230 PT - Shindaiwa Brush Cutter (SN: T12220001001 - T12220999999) FAN COVER Parts Diagram

Brush Cutter

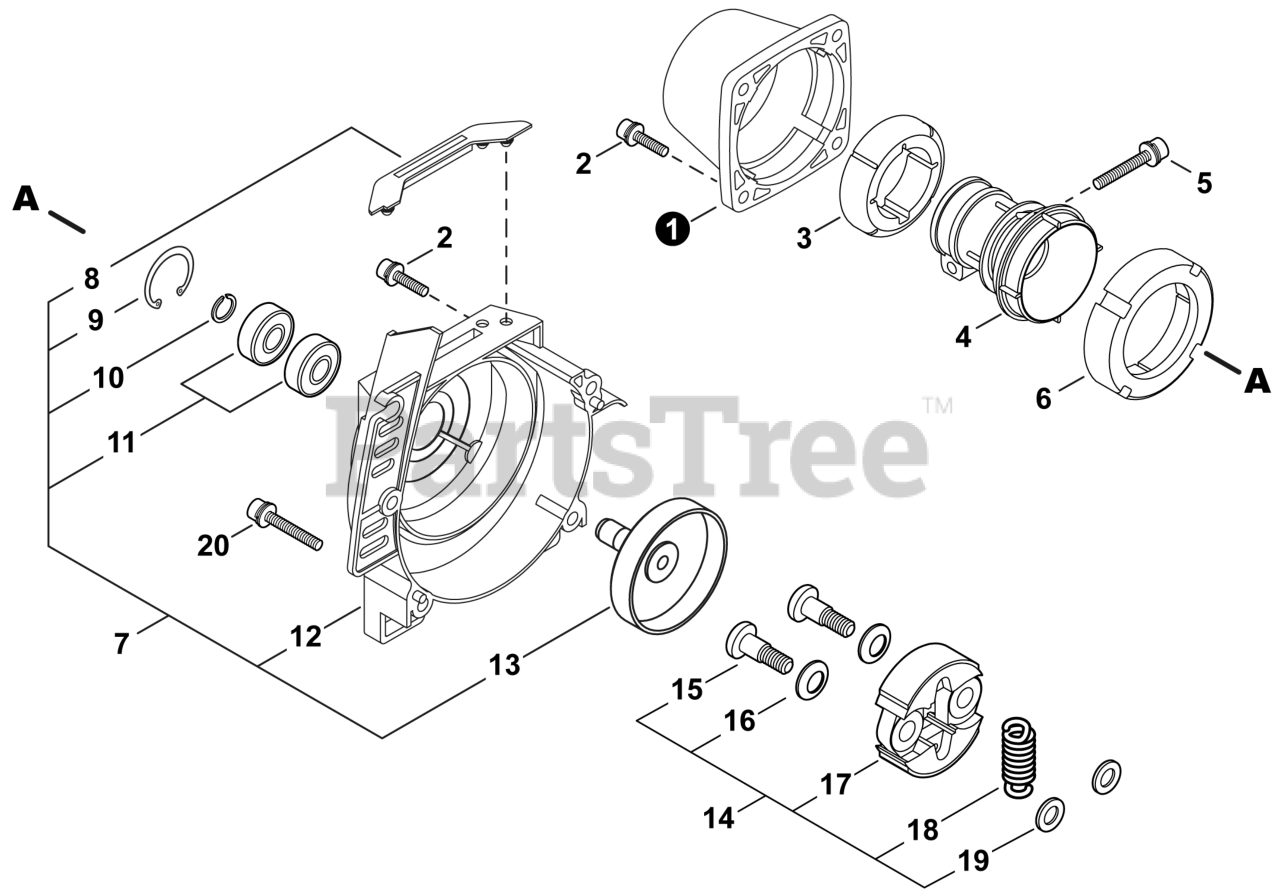

FAN COVER Parts Diagram

  • Title

1

Echo A575000460

COVER, AV CUSHION (RED)

$7.99

$

In Stock, only 2 left!

0

2

Echo V203000591

BOLT 5×16
(Superseded to V203000591)

$0.99

$

In Stock, Qty 20+

0

3

Echo V420002640

CUSHION, FRONT
(Superseded to V420002641)

$3.49

$

Usually ships in 2-4 days

0

4

Echo A575000180

CUSHION, AV

$18.99

$

Usually ships in 2-4 days

0

5

Echo V203000560

BOLT M5×25

$1.99

$

In Stock, Qty 8

0

6

Echo V420002650

HOLDER, REAR CUSHION

$4.49

$

In Stock, only 2 left!

0

7

Echo P021030352

COVER ASSY, FAN

Note: Includes ITEMS 8-13

$122.99

$

Usually ships in 2-4 days

0

8

Echo V420002620

CUSHION

$1.99

$

Usually ships in 2-4 days

0

9

Echo 9242426000

RING, SNAP Ø26

$0.99

$

In Stock, Qty 10

0

10

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

11

Echo 9404406000

BEARING, BALL 6000ZZ

$9.99

$

In Stock, Qty 15

0

12

Echo A172001370

COVER, FAN

$34.99

$

Usually ships in 2-4 days

0

13

Echo A556001300

DRUM, CLUTCH

$23.99

$

In Stock, Qty 20+

0

14

Echo A056000260

CLUTCH ASSY

Note: Includes ITEMS 15-19

$32.99

$

In Stock, Qty 20+

0

15

Echo A557000040

BOLT, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

16

Echo V346000040

WASHER, SPRING

$0.99

$

Usually ships in 2-4 days

0

17

Echo A553000060

SHOE, CLUTCH

$18.99

$

In Stock, only 4 left!

0

18

Echo A566000050

SPRING, CLUTCH

$2.99

$

In Stock, Qty 10

0

19

Echo V304000150

WASHER 6 MM

$0.99

$

Usually ships in 2-4 days

0

20

Echo V203000610

BOLT M5×45

$1.99

$

In Stock, Qty 20+

0
