C 230 PT - Shindaiwa Brush Cutter (SN: T12220001001 - T12220999999) STARTER Parts Diagram

Brush Cutter

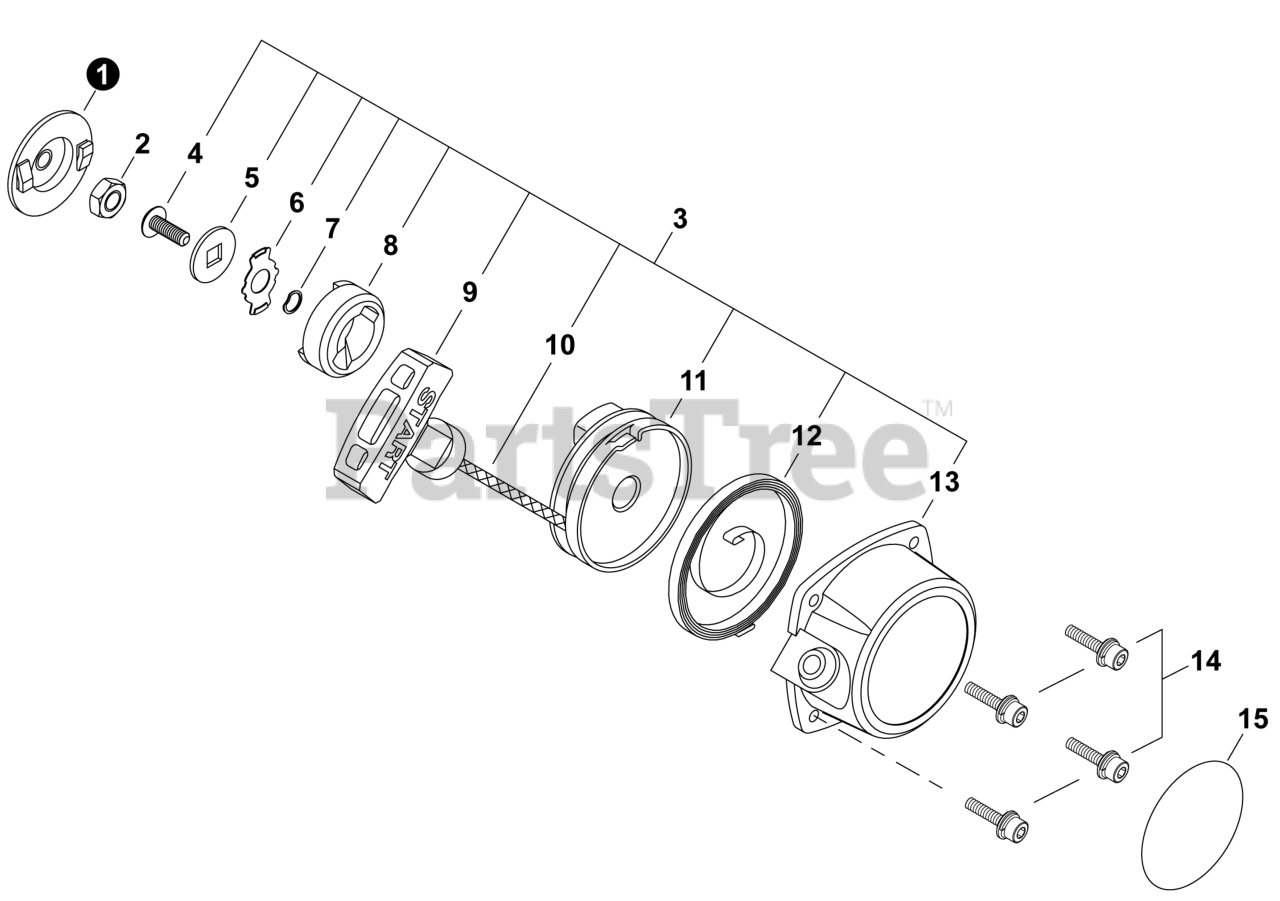

STARTER Parts Diagram

  • Title

1

Echo A520000080

PULLEY, STARTER

$3.99

$

In Stock, only 4 left!

0

2

Echo 90050300008

NUT M8×1

$0.99

$

In Stock, Qty 20+

0

3

Echo A051001861

STARTER ASSY, RECOIL

Note: Includes ITEMS 4-13

$33.99

$

In Stock, Qty 14

0

4

Echo P022034820

SCREW 5

$1.99

$

In Stock, Qty 5

0

5

Echo P022034840

WASHER

$1.99

$

In Stock, only 2 left!

0

6

Echo P022034830

RETAINER

$2.49

$

In Stock, Qty 5

0

7

Echo P022034810

WASHER, WAVE

$0.99

$

In Stock, Qty 9

0

8

Echo P022034800

PLATE, CAM

$4.49

$

In Stock, Qty 14

0

9

Echo P022034750

GRIP, STARTER

$3.99

$

Usually ships in 2-4 days

0

10

Echo P022034760

ROPE

$3.49

$

In Stock, Qty 10

0

11

Echo P022034780

REEL, ROPE

$4.49

$

In Stock, Qty 5

0

12

Echo P022034790

SPRING, RECOIL

$12.99

$

In Stock, Qty 12

0

13

Echo A500001060

CASE, RECOIL STARTER

$10.99

$

Usually ships in 2-4 days

0

14

Echo V202000380

BOLT, ADHESIVE M4×12

$1.99

$

Usually ships in 2-4 days

0

15

Echo X504006130

LABEL - RECOIL STARTER

$1.99

$

In Stock, only 3 left!

0
