C 230 - Shindaiwa Brush Cutter (Original Version) Crankcase, Cylinder, Muffler Parts Diagram

Brush Cutter

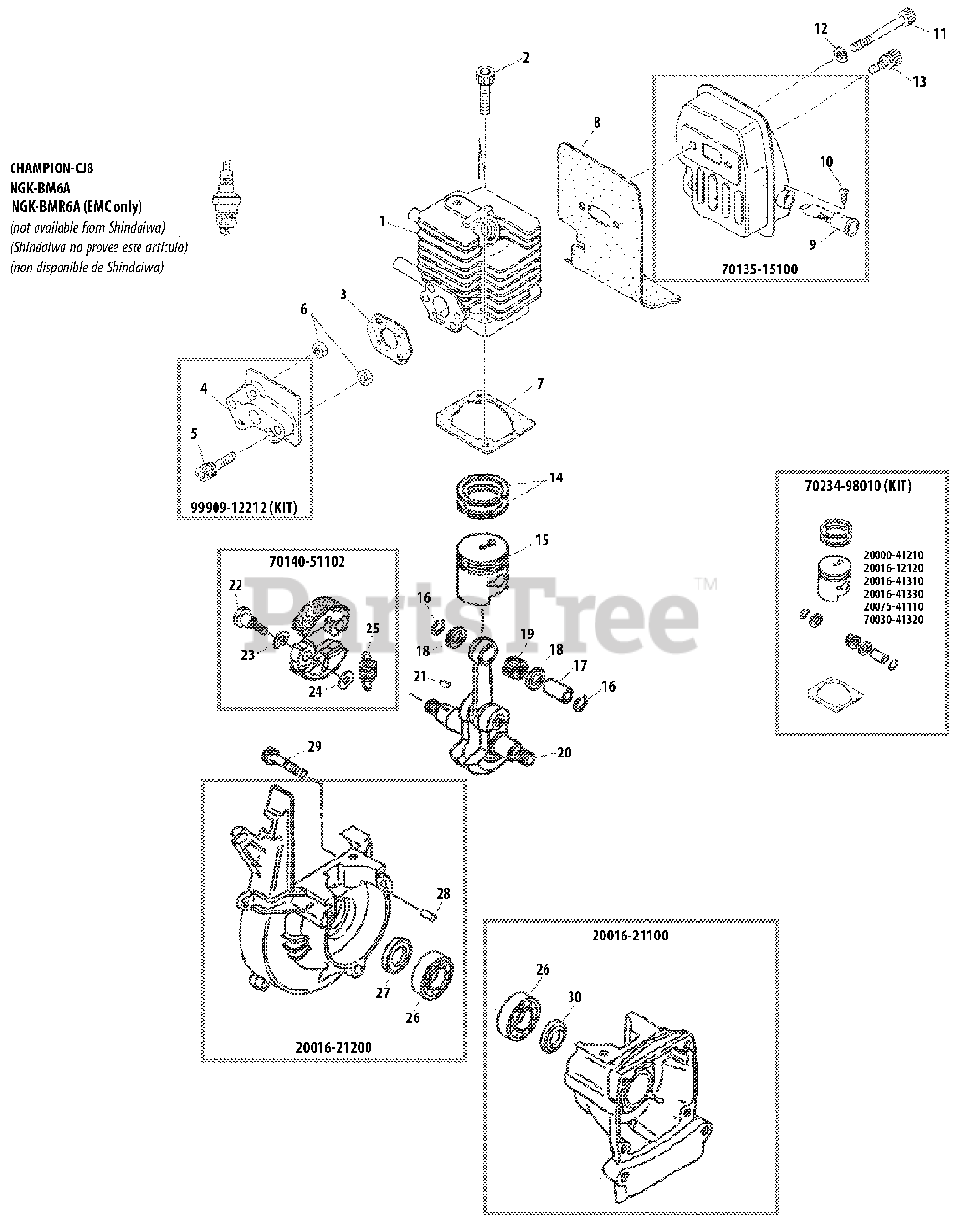

Crankcase, Cylinder, Muffler Parts Diagram

  • Title

1

Echo 20016-12110

CYLINDER
(Superseded to 20016-12112)

$58.99

$

In Stock, only 2 left!

0

2

Echo 01020-05250

BOLT 5×25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 8

0

3

Echo 20016-12222

GASKET, INTAKE
(Superseded to V103001200)

$1.49

$

In Stock, only 3 left!

0

99909-12212

Echo 99909-12212

INSULATOR ASSY

Note: IMPORTANT: PR192

$13.99

$

In Stock, only 2 left!

0

4

Echo 20016-12212

INSULATOR
(Superseded to 99909-12212)

Note: IMPORTANT: PR192

$13.99

$

In Stock, only 2 left!

0

5

Echo 11022-05305

BOLT SS M5×30
(Superseded to V203000480)

Note: IMPORTANT: PR192

$4.99

$

In Stock, only 2 left!

0

6

Echo 20011-12260

NUT M5×6.3
(Superseded to V263000260)

$1.49

$

In Stock, Qty 5

0

7

Echo 20016-12120

GASKET, CYLINDER
(Superseded to V100000490)

$1.99

$

In Stock, Qty 5

0

8

Echo 20016-15122

GASKET, EXHAUST
(Superseded to 20016-15123)

$9.49

$

In Stock, only 2 left!

0

70135-15100

Echo 70135-15100

MUFFLER ASSY
(Superseded to A030000120)

$37.99

$

Usually ships in 2-4 days

0

9

Echo 70103-15150

SCREEN, SPARK ARRESTER
(Superseded to A310000260)

$9.99

$

In Stock, only 2 left!

0

10

Echo 01270-03062

SCREW, TAPPING 3×6
(Superseded to 9137403006)

$1.49

$

In Stock, only 2 left!

0

11

Echo 01020-05500

BOLT M5×50
(Superseded to 90010505050)

$1.99

$

In Stock, Qty 11

0

12

Echo 01610-05080

WASHER, FLAT 5.5×10×0.8
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

13

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, only 3 left!

0

70234-98010

Echo 70234-98010

PISTON ASSY
(Superseded to 70234-98011)

$64.99

$

In Stock, only 3 left!

0

14

Echo 20000-41210

RING, PISTON
(Superseded to A101000400)

$6.99

$

In Stock, only 1 left!

0

15

Echo 20075-41110

PISTON
(Superseded to 70234-98310)

$42.99

$

Usually ships in 2-4 days

0

16

Echo 70030-41320

RING, SNAP
(Superseded to V580000070)

$1.49

$

In Stock, Qty 20+

0

17

Echo 20016-41310

PIN, PISTON
(Superseded to V606000060)

$3.99

$

In Stock, only 1 left!

0

18

Echo 20016-41340

WASHER, THRUST
(Superseded to V306000260)

$1.49

$

Usually ships in 2-4 days

0

19

Echo 20016-41330

BEARING, NEEDLE
(Superseded to 81593)

$10.99

$

In Stock, only 1 left!

0

7

Echo 20016-12120

GASKET, CYLINDER
(Superseded to V100000490)

$1.99

$

In Stock, Qty 5

0

20

Echo 20016-42002

CRANKSHAFT
(Superseded to A011000930)

$73.99

$

In Stock, only 1 left!

0

21

Echo 02403-03100

KEY, WOODRUFF 3×10
(Superseded to 9311503010)

$0.99

$

In Stock, Qty 13

0

70140-51102

Echo 70140-51102

CLUTCH ASSY
(Superseded to A056000260)

$35.99

$

In Stock, Qty 17

0

22

Echo 20087-51210

BOLT, CLUTCH
(Superseded to A557000040)

$3.49

$

In Stock, only 4 left!

0

23

Echo 20087-51231

WASHER, SPRING
(Superseded to V346000040)

$1.49

$

In Stock, Qty 8

0

24

Echo 22100-71430

WASHER 6 MM
(Superseded to V304000150)

$1.49

$

In Stock, Qty 6

0

25

Echo 70140-51220

SPRING, CLUTCH
(Superseded to A566000200)

$2.99

$

In Stock, only 2 left!

0

20016-21200

Echo 20016-21200

CRANKCASE ASSY, M
(Superseded to P021017920)

$50.99

$

Usually ships in 2-4 days

0

26

Echo 12900-60010

BEARING, BALL 6001 C3
(Superseded to V592000310)

$6.99

$

In Stock, Qty 9

0

27

Echo 20000-21211

SEAL, OIL 12
(Superseded to V505000080)

$3.49

$

In Stock, Qty 5

0

28

Echo 12492-40080

PIN, LOCATING Ø4×8
(Superseded to V622000040)

$1.49

$

In Stock, Qty 12

0

29

Echo 01020-05250

BOLT 5×25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 8

0

20016-21100

Echo 20016-21100

CRANKCASE ASSY, S
(Superseded to P021017910)

$44.99

$

Usually ships in 2-4 days

0

26

Echo 12900-60010

BEARING, BALL 6001 C3
(Superseded to V592000310)

$6.99

$

In Stock, Qty 9

0

30

Echo 22150-21250

SEAL, OIL 12
(Superseded to V505000140)

$3.49

$

In Stock, only 4 left!

0
