C 230 - Shindaiwa Brush Cutter (Original Version) Gearcase Parts Diagram

Brush Cutter

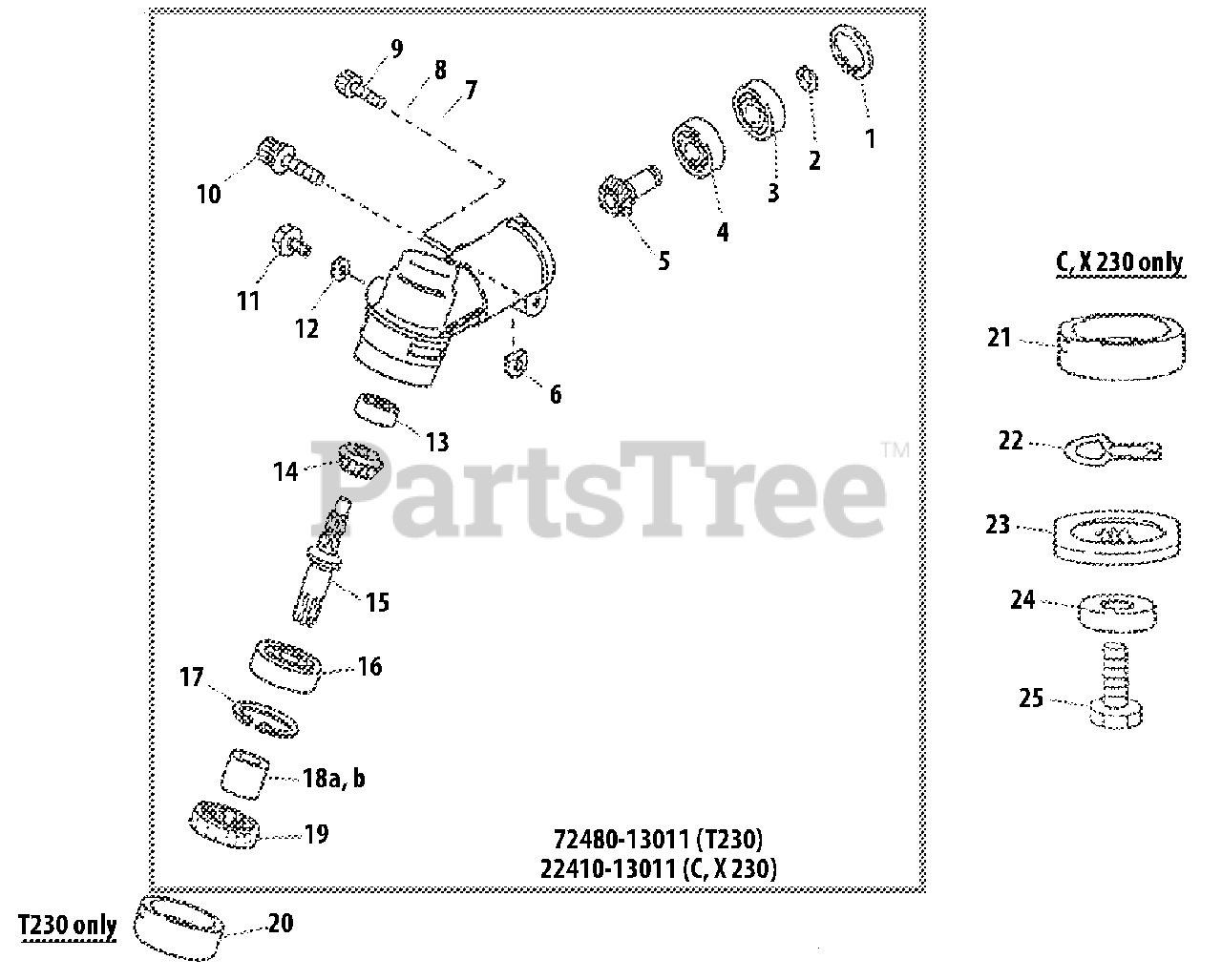

Gearcase Parts Diagram

  • Title

72480-13011

Echo 72480-13011

GEAR CASE ASSY
(Superseded to 63023-63020)

Note: T230

$104.99

$

In Stock, Qty 6

0

22410-13011

Echo 22410-13011

GEAR CASE ASSY
(Superseded to C051000400)

Note: C,X230

$134.99

$

Usually ships in 2-4 days

0

1

Echo 02432-22100

RING, SNAP Ø22
(Superseded to 9242422000)

$1.49

$

Usually ships in 2-4 days

0

2

Echo 22035-13340

RING, SNAP

$1.49

$

In Stock, Qty 11

0

3

Echo 02002-00608

BEARING, BALL 608ZZ
(Superseded to 90080400608)

$15.99

$

In Stock, only 2 left!

0

4

Echo 02000-00608

BEARING, BALL 608
(Superseded to 90080000608)

$7.49

$

In Stock, only 2 left!

0

5

Echo 22035-13391

GEAR, PINION
(Superseded to V651000700)

$21.99

$

Usually ships in 2-4 days

0

6

Echo 22000-13420

D-WASHER
(Superseded to V340000300)

$1.49

$

In Stock, Qty 6

0

7

Echo 01610-05080

WASHER, FLAT 5.5×10×0.8
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

8

Echo 01600-05131

WASHER, SPRING 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 9

0

9

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, only 3 left!

0

10

Echo 11023-05250

BOLT M5×25
(Superseded to V203000560)

$1.99

$

In Stock, only 3 left!

0

11

Echo 01014-06100

BOLT M6×10
(Superseded to 9103006010)

$1.49

$

In Stock, Qty 10

0

12

Echo 22000-13410

WASHER
(Superseded to V304000180)

$1.49

$

In Stock, only 2 left!

0

13

Echo 02006-00626

BEARING, BALL 626 DDU
(Superseded to 90081200626)

$15.99

$

Usually ships in 2-4 days

0

14

Echo 22035-13220

GEAR, BEVEL
(Superseded to V651000690)

$18.99

$

Usually ships in 2-4 days

0

15

Echo 22410-13210

SHAFT, GEAR
(Superseded to C534000680)

$19.99

$

In Stock, only 1 left!

0

16

Echo 02000-06000

BEARING, BALL 6000
(Superseded to 90080006000)

$13.99

$

In Stock, only 2 left!

0

17

Echo 02432-26120

RING, SNAP Ø26
(Superseded to 9242426000)

$1.49

$

In Stock, Qty 5

0

18

Echo 72432-13230

COLLAR
(Superseded to V356000490)

Note: T230

$3.99

$

In Stock, only 4 left!

0

18

Echo 22035-13230

SPACER
(Superseded to V356000480)

Note: C230

$3.49

$

In Stock, only 2 left!

0

19

Echo 22035-13140

SEAL, OIL
(Superseded to V509000000)

$3.99

$

In Stock, Qty 8

0

20

Echo 72432-13240

HOLDER
(Superseded to C535000500)

Note: T230

$6.99

$

In Stock, only 2 left!

0

21

Echo 22035-13242

PLATE, ADAPTOR - UPPER
(Superseded to C535000510)

$24.99

$

In Stock, only 1 left!

0

22

Echo 22410-13530

CLIP, BLADE
(Superseded to V490000530)

Note: C,X230

$1.99

$

In Stock, Qty 11

0

23

Echo 22410-13251

PLATE, ADAPTOR - LOWER
(Superseded to C535000520)

Note: C,X230

$13.99

$

In Stock, only 1 left!

0

24

Echo 22035-13290

GUARD, BOLT
(Superseded to C535000530)

Note: C,X230

$3.99

$

In Stock, only 2 left!

0

25

Echo 22035-13271

BOLT M7×18
(Superseded to V216000040)

Note: C,X230

$4.49

$

In Stock, only 2 left!

0
