C 230 - Shindaiwa Brush Cutter (SN: 09010691 - 09095610) Crankcase / Engine Cover / Fan Cover Parts Diagram

Brush Cutter

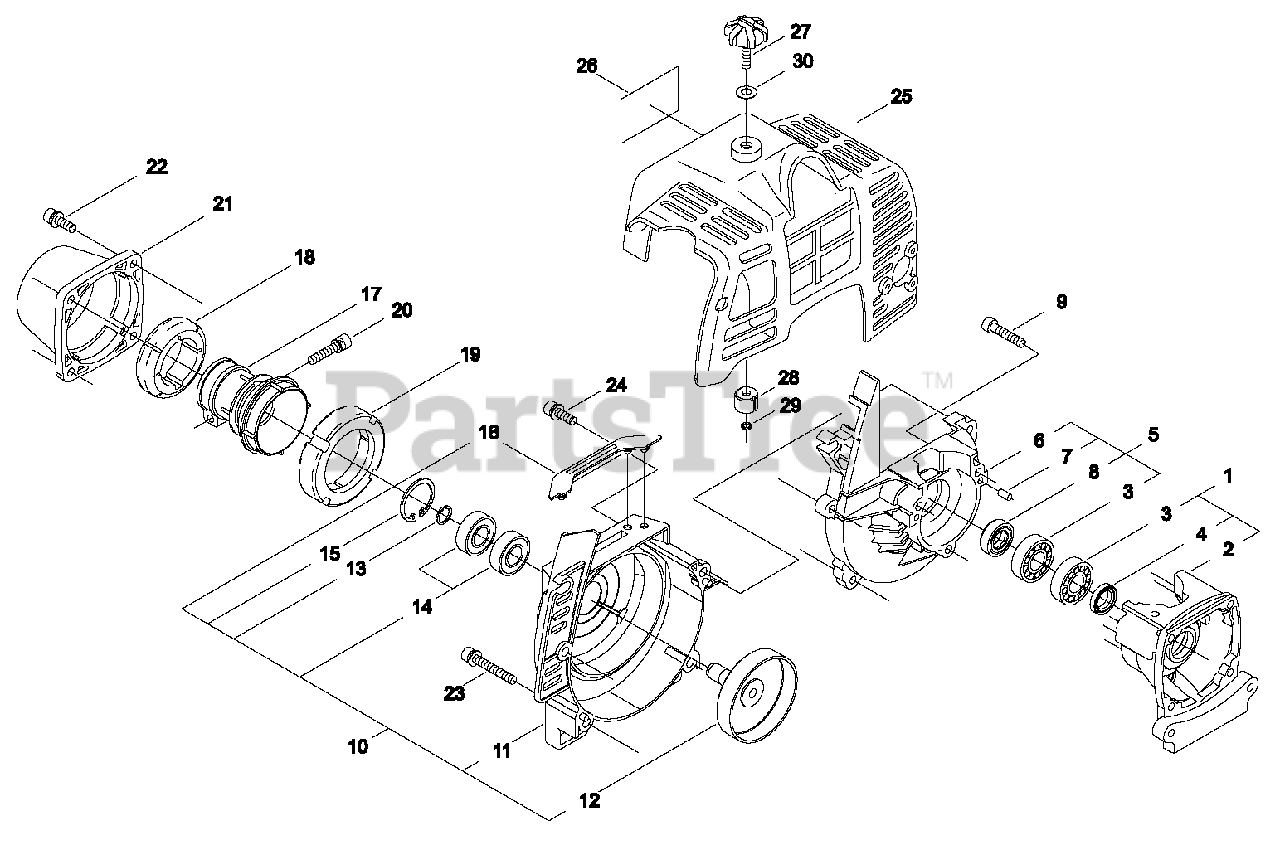

Crankcase / Engine Cover / Fan Cover Parts Diagram

  • Title

1

Echo P021017910

CRANKCASE ASSY - REAR

Note: 20016-21100

$37.99

$

Usually ships in 2-4 days

0

2

Echo A120000480

CRANKCASE - REAR

Note: 20016-21111

$24.99

$

Usually ships in 2-4 days

0

3

Echo V592000070

BEARING, BALL - 6001
(Superseded to V592000310)

Note: 12900-60010

$5.99

$

In Stock, only 3 left!

0

4

Echo V505000140

SEAL, OIL - 12

Note: 22150-21250

$3.49

$

In Stock, Qty 7

0

5

Echo P021017920

CRANKCASE ASSY - FRONT

Note: 20016-21200

$42.99

$

Usually ships in 2-4 days

0

6

Echo A120000490

CRANKCASE - FRONT

Note: 20016-21120

$29.99

$

Usually ships in 2-4 days

0

7

Echo V622000040

PIN - LOCATING
(Superseded to 90033040080)

Note: 12492-40080

$0.99

$

In Stock, Qty 20+

0

8

Echo V505000080

CRANKCASE ASSY - FRONT

Note: 20000-21211

$2.99

$

In Stock, Qty 19

0

9

Echo 90010505025

SCREW - 5X25

Note: 01020-05250

$1.49

$

In Stock, Qty 20+

0

10

Echo P021030350

FAN CASE ASSY
(Superseded to P021030352)

Note: 70140-31103

$122.99

$

Usually ships in 2-4 days

0

11

Echo A172001370

CASE, FAN

Note: 70140-31113

$34.99

$

Usually ships in 2-4 days

0

12

Echo A556000960

DRUM, CLUTCH
(Superseded to A556001300)

Note: 20087-31210

$23.99

$

In Stock, Qty 20+

0

13

Echo V583000160

RING, RETAINING

Note: 22000-13320

$1.49

$

In Stock, Qty 20+

0

14

Echo 9404406000

BEARING, BALL - 6000ZZ

Note: 02002-06000

$9.99

$

In Stock, Qty 15

0

15

Echo 9242426000

RING, RETAINING - 26

Note: 02432-26120

$0.99

$

In Stock, Qty 10

0

16

Echo V420002620

CUSHION

Note: 70140-31130

$1.99

$

Usually ships in 2-4 days

0

17

Echo A575000180

CLAMP, MAIN PIPE

Note: 20018-31411

$18.99

$

Usually ships in 2-4 days

0

18

Echo V420002640

CUSHION - FRONT
(Superseded to V420002641)

Note: 20018-31420

$3.49

$

Usually ships in 2-4 days

0

19

Echo V420002650

CUSHION - REAR

Note: 20018-31430

$4.49

$

In Stock, only 2 left!

0

20

Echo V203000560

SCREW - 5X25

Note: 11023-05250

$1.99

$

In Stock, Qty 8

0

21

Echo A575000460

CAP

Note: 70135-31470

$7.99

$

In Stock, only 2 left!

0

22

Echo V203000590

SCREW - 5X16
(Superseded to V203000591)

Note: 11022-05160

$0.99

$

In Stock, Qty 20+

0

23

Echo V203000610

SCREW - 5X45

Note: 11022-05450

$1.99

$

In Stock, Qty 20+

0

24

Echo V203000590

SCREW - 5X16
(Superseded to V203000591)

Note: 11022-05160

$0.99

$

In Stock, Qty 20+

0

25

Echo A160001840

COVER, ENGINE
(Superseded to A160001841)

Note: 70140-32111

$12.99

$

In Stock, only 1 left!

0

26

Echo X504001330

LABEL - IDENTIFICATION
(Superseded to X562001390)

Note: 70204-32120

$2.49

$

Usually ships in 2-4 days

0

27

Echo V299000420

THUMBSCREW

Note: 20018-31251

$3.49

$

In Stock, only 1 left!

0

28

Echo V353000430

INSULATOR

Note: 20018-31260

$1.99

$

In Stock, Qty 9

0

29

Echo V490000680

CLIP

Note: 20018-31270

$0.99

$

In Stock, Qty 9

0

30

Echo V347000030

WASHER - CONICAL

Note: 20024-81790

$0.99

$

In Stock, Qty 20+

0
