C 230 - Shindaiwa Brush Cutter (SN: 09010691 - 09095610) Debris Shield Parts Diagram

Brush Cutter

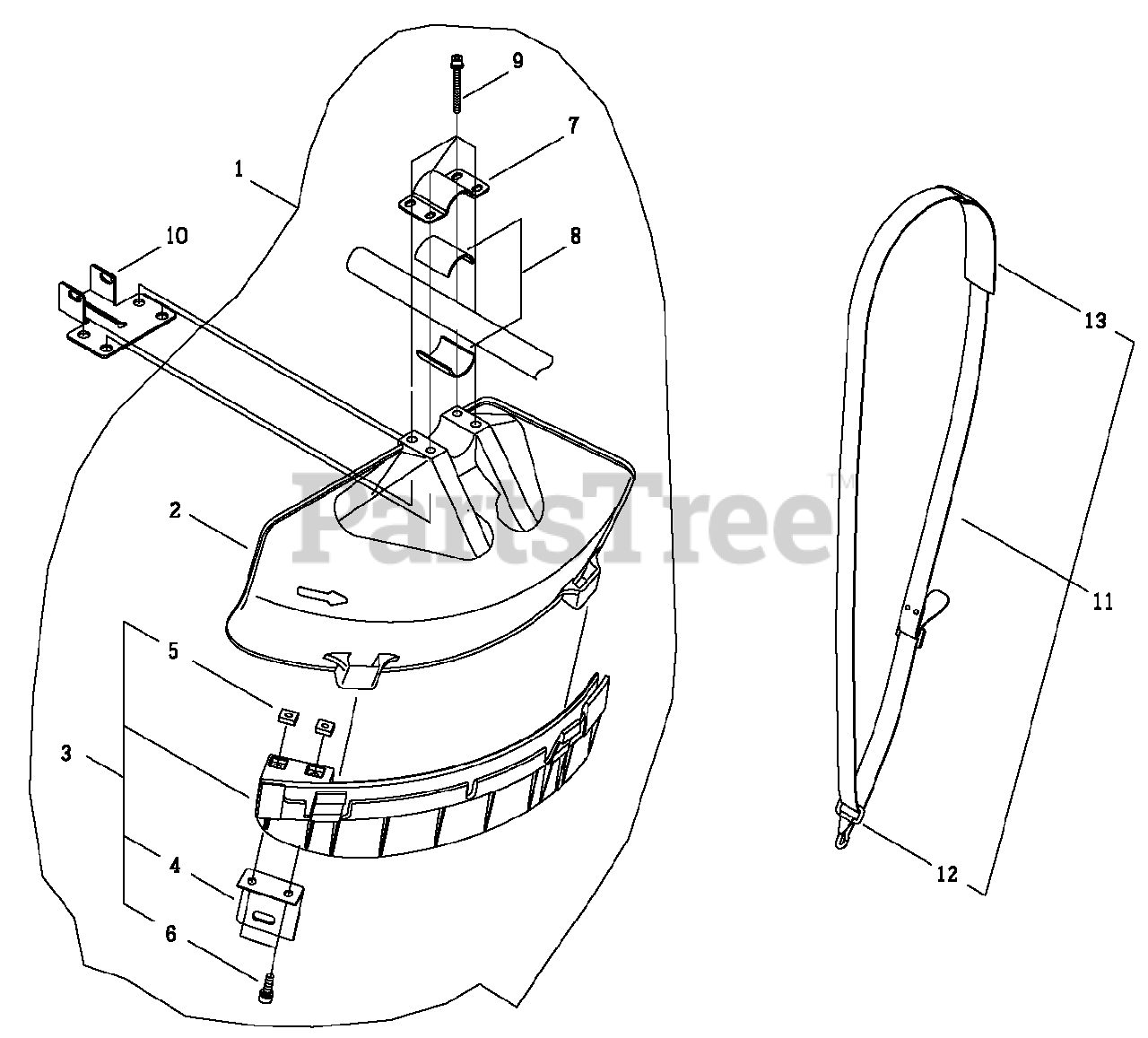

Debris Shield Parts Diagram

  • Title

1

Echo P021028440

DEBRIS SHIELD KIT
(Superseded to P021028441)

Note: 62903-66322

$71.99

$

In Stock, only 3 left!

0

2

Echo C550000430

SHIELD, DEBRIS

Note: 62903-66111

$37.99

$

Usually ships in 2-4 days

0

3

Echo P021028450

SHIELD GUARD KIT
(Superseded to P021028451)

Note: 62903-66332

$33.99

$

In Stock, only 2 left!

0

4

Echo C554000040

KNIFE, TRIMMER LINE

Note: 72480-16121

$6.49

$

In Stock, only 2 left!

0

5

Echo V263000130

NUT - 5

Note: 22420-16120

$1.49

$

In Stock, Qty 5

0

6

Echo V203000720

SCREW - 5X16
(Superseded to 9112205016)

Note: 11020-05160

$1.49

$

In Stock, only 2 left!

0

7

Echo C551000060

CLAMP - UPPER

Note: 72480-16210

$1.99

$

In Stock, Qty 6

0

8

Echo V375000340

SPACER

Note: 72480-16220

$1.99

$

In Stock, Qty 5

0

9

Echo V203000610

SCREW - 5X45

Note: 11022-05450

$1.99

$

In Stock, Qty 20+

0

10

Echo C551000150

CLAMP - LOWER

Note: 72480-16130

$4.99

$

In Stock, only 2 left!

0

11

Echo C062000340

SHOULDER STRAP ASSY

Note: 22410-17202

$15.99

$

Usually ships in 2-4 days

0

12

Echo C649000170

HOOK

Note: 37013-67310

$4.49

$

Usually ships in 2-4 days

0

13

Echo C644000080

PAD, SHOULDER

Note: 22007-17220

$3.99

$

Usually ships in 2-4 days

0
