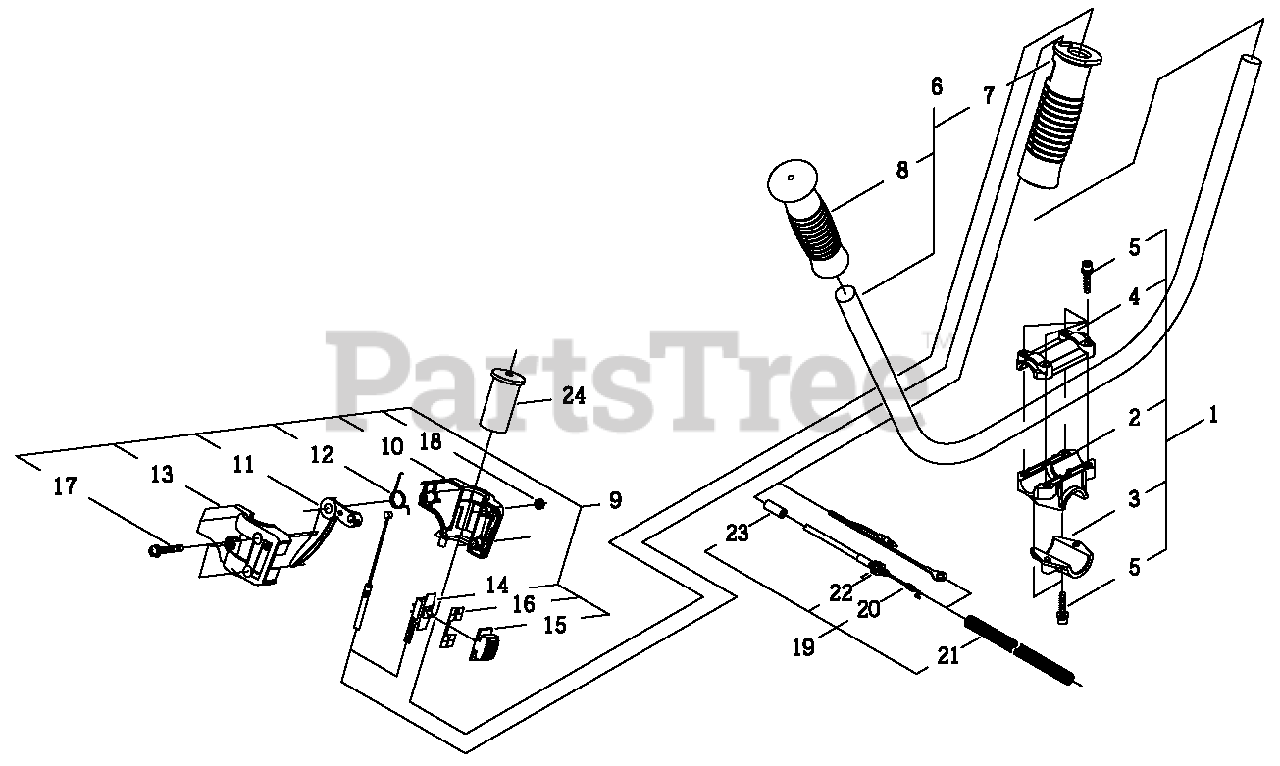

C 230 - Shindaiwa Brush Cutter (SN: 09010691 - 09095610) Throttle Control / Handlebar Parts Diagram

Brush Cutter

Throttle Control / Handlebar Parts Diagram

  • Title

1

Echo P021024920

BRACKET KIT, HANDLEBAR
(Superseded to P021024921)

Note: 34004-64020

$31.99

$

Usually ships in 2-4 days

0

2

Echo C423000440

BRACKET, LOWER HANDLEBAR

Note: 34004-64110

$10.99

$

In Stock, only 1 left!

0

3

Echo C423000450

BRACKET, MOUNTING

Note: 34004-64120

$5.49

$

Usually ships in 2-4 days

0

4

Echo C423000520

BRACKET, UPPER HANDLEBAR

Note: 34004-64130

$5.49

$

Usually ships in 2-4 days

0

5

Echo V203000630

BOLT M5×25

Note: 11022-05250

$1.49

$

In Stock, Qty 20+

0

6

Echo P021035430

HANDLEBAR ASSY

Note: 72481-14200

$130.99

$

Usually ships in 2-4 days

0

7

Echo C403000340

GRIP, THROTTLE

Note: 22421-14220

$18.99

$

Usually ships in 2-4 days

0

8

Echo C403000210

GRIP

Note: 22421-14230

$14.99

$

Usually ships in 2-4 days

0

9

Echo C044000410

THROTTLE CONTROL ASSY

Note: 22411-14302

$34.99

$

Usually ships in 2-4 days

0

10

Echo C401000080

CONTROL HANDLE - RIGHT

Note: 22410-14312

$6.99

$

In Stock, Qty 5

0

11

Echo C450000460

TRIGGER, THROTTLE

Note: 22410-14321

$8.49

$

In Stock, Qty 12

0

12

Echo V452000440

SPRING, RETURN

Note: 22410-14331

$1.99

$

In Stock, Qty 8

0

13

Echo C401000090

CONTROL HANDLE - LEFT

Note: 22410-14341

$7.49

$

In Stock, Qty 6

0

14

Echo A440001410

SWITCH, ON-OFF

Note: 22411-14351

$26.99

$

Usually ships in 2-4 days

0

15

Echo A444000090

KNOB, SWITCH

Note: 22420-12930

$2.99

$

In Stock, only 4 left!

0

16

Echo X510000500

PLATE, SWITCH

Note: 22420-12940

$2.99

$

Usually ships in 2-4 days

0

17

Echo 9157405030

SCREW M5×30

Note: 11206-05300

$1.49

$

In Stock, Qty 10

0

18

Echo 900502-00005

NUT M5

Note: 01501-05031

$0.99

$

In Stock, Qty 8

0

19

Echo P021023260

CABLE ASSY, THROTTLE

Note: 22411-14500

$

$

Not available

20

Echo V430002660

CABLE, THROTTLE

Note: 22411-14511

$11.99

$

In Stock, only 2 left!

0

21

Echo V475004540

TUBE, FLEXIBLE

Note: 22421-14540

$

$

Not available

22

Echo 900502-00006

NUT M6

Note: 01501-06041

$0.99

$

In Stock, Qty 11

0

23

Echo V475004550

PIPE

Note: 22411-14550

$

$

Currently unavailable

24

Echo V376001260

SPACER

Note: 22411-14611

$5.99

$

In Stock, only 2 left!

0
