C 230 - Shindaiwa Brush Cutter (SN: 36005611 - 36009050) Carburetor / Air Filter Parts Diagram

Brush Cutter

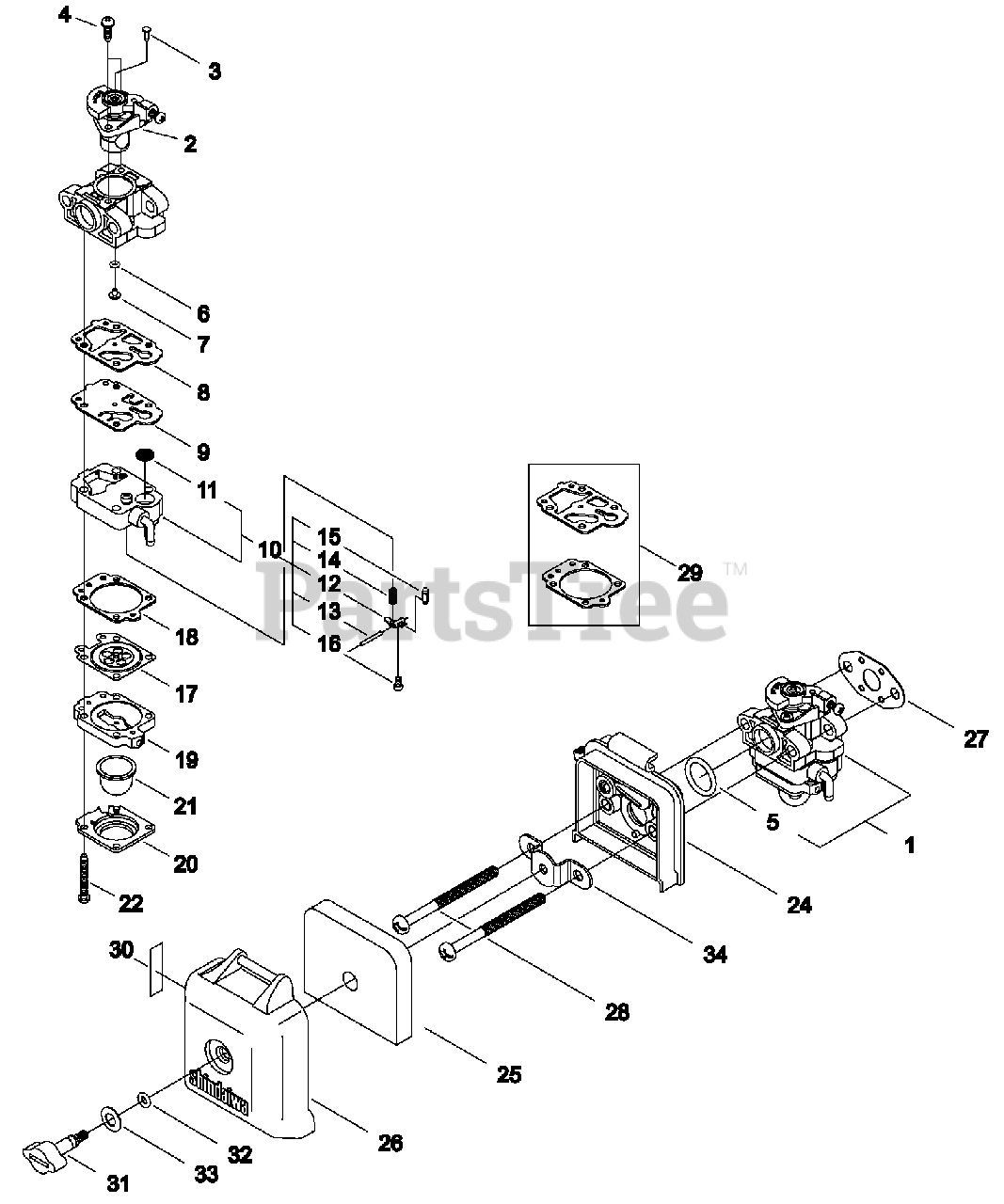

Carburetor / Air Filter Parts Diagram

  • Title

1

Echo A021002190

CARBURETOR

Note: 20016-81021

$72.99

$

In Stock, only 2 left!

0

2

Echo 12311605160

VALVE ASSY, THROTTLE

Note: 20016-81180

$16.99

$

Usually ships in 2-4 days

0

3

Echo 12314644330

PLUG

Note: 22154-81270

$0.99

$

Usually ships in 2-4 days

0

4

Echo 12311444330

SCREW, THROTTLE COLLAR

Note: 70064-81290

$0.99

$

Usually ships in 2-4 days

0

5

Echo 90072000015

O-RING 15

Note: 20016-81250

$2.49

$

In Stock, Qty 11

0

6

Echo 12318340630

O-RING
(Superseded to 12318305960)

Note: 70097-81220

$19.99

$

In Stock, only 2 left!

0

7

Echo 12318411810

JET, MAIN #40

Note: 70064-81230

$8.99

$

Usually ships in 2-4 days

0

8

Echo 12312540630

GASKET, PUMP

Note: 70097-81310

$5.99

$

In Stock, only 2 left!

0

9

Echo 12311240630

DIAPHRAGM, FUEL PUMP

Note: 70097-81320

$14.99

$

In Stock, only 3 left!

0

10

Echo P003000440

BODY ASSY, PUMP

Note: 20016-81410

$22.99

$

In Stock, Qty 14

0

11

Echo 12312610631

SCREEN, FUEL INLET

Note: 70030-81380

$1.99

$

In Stock, only 3 left!

0

12

Echo 123123-38330

LEVER, METERING
(Superseded to 12312338330)

Note: 22100-81230

$7.99

$

In Stock, only 1 left!

0

13

Echo 12313803930

PIN, METERING LEVER

Note: 22100-81250

$6.99

$

In Stock, only 3 left!

0

14

Echo P003000450

SPRING, METERING LEVER

Note: 20016-81270

$0.99

$

Usually ships in 2-4 days

0

15

Echo 12313719830

VALVE, INLET NEEDLE

Note: 20036-81440

$22.99

$

Usually ships in 2-4 days

0

16

Echo 12313905560

SCREW

Note: 20016-81450

$0.99

$

Usually ships in 2-4 days

0

17

Echo 12314103930

DIAPHRAGM, METERING

Note: 22100-81260

$15.99

$

In Stock, only 3 left!

0

18

Echo 12314005560

GASKET, METERING DIAPHRAGM

Note: 20016-81280

$4.99

$

In Stock, only 2 left!

0

19

Echo 12318005560

BODY ASSY, PURGE

Note: 20016-81420

$8.99

$

In Stock, only 2 left!

0

20

Echo 12314205560

RETAINER, PURGE BULB

Note: 20016-81510

$5.49

$

Usually ships in 2-4 days

0

21

Echo 12318140630

BULB, PURGE

Note: 20036-81670

$6.49

$

In Stock, Qty 20+

0

22

Echo 12311005560

SCREW

Note: 20016-81140

$2.99

$

In Stock, Qty 20+

0

24

Echo A023000230

CASE, AIR FILTER

Note: 70140-81710

$7.99

$

In Stock, only 2 left!

0

25

Echo A226000740

FILTER, AIR

Note: 20018-81750

$4.99

$

In Stock, Qty 8

0

26

Echo A232000940

COVER, AIR FILTER

Note: 70140-81760

$6.49

$

In Stock, only 2 left!

0

27

Echo V103001210

GASKET, CARBURETOR

Note: 20016-81530

$1.49

$

In Stock, Qty 8

0

28

Echo 9157905060

SCREW M5×60

Note: 11203-05608

$1.49

$

Usually ships in 2-4 days

0

29

Echo P050008650

GASKET KIT

Note: 20016-81910

$12.99

$

Usually ships in 2-4 days

0

30

Echo X506000130

LABEL, CHOKE

Note: 19404-00008

$1.49

$

In Stock, Qty 6

0

31

Echo V299000430

THUMBSCREW

Note: 20115-81780

$4.99

$

In Stock, only 2 left!

0

32

Echo V581000200

O-RING

Note: 22100-82430

$1.49

$

In Stock, Qty 5

0

33

Echo V347000030

WASHER, CONE M6

Note: 20024-81790

$1.49

$

In Stock, Qty 9

0

34

Echo A244000190

BRACKET

Note: 20018-81721

$4.49

$

In Stock, only 3 left!

0
