C 230 - Shindaiwa Brush Cutter (SN: T23420001001 - T23420999999) CARBURETOR S/N T23420036099 - T23420999999 Parts Diagram

Brush Cutter

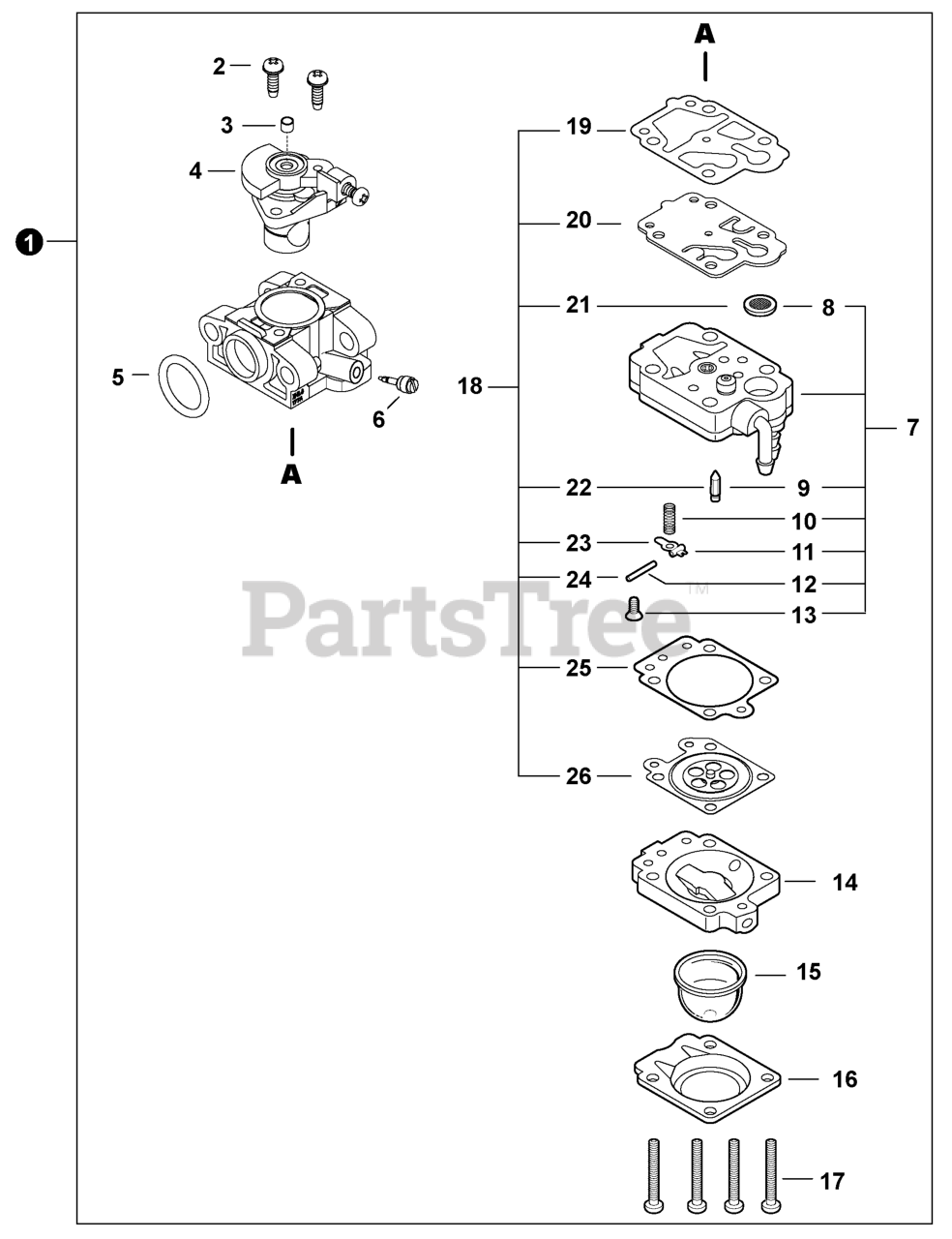

CARBURETOR S/N T23420036099 - T23420999999 Parts Diagram

  • Title

1

Echo A021005320

CARBURETOR - HLI GL-9

Note: Includes Items 2-26

$99.99

$

Usually ships in 2-4 days

0

2

Echo P006000740

SCREW, THROTTLE COLLAR

$1.99

$

Usually ships in 0 days

0

3

Echo A259000060

PLUG
(Superseded to P006000220)

$

$

Not available

4

Echo P006000730

VALVE ASSY, THROTTLE

$30.99

$

Usually ships in 0 days

0

5

Echo P006000580

O-RING

$2.49

$

Usually ships in 0 days

0

6

Echo P006000750

NEEDLE, HIGH SPEED

$9.49

$

Usually ships in 0 days

0

7

Echo P006000610

BODY ASSY, PUMP

Note: Includes Items 8-17

$44.99

$

Usually ships in 0 days

0

8

SCREEN, FUEL INLET

$

$

Not available

9

VALVE, INLET NEEDLE

$

$

Not available

10

SPRING, METERING LEVER

$

$

Not available

11

LEVER, METERING

$

$

Not available

12

PIN, METERING LEVER

$

$

Not available

13

SCREW

$

$

Not available

14

Echo P006000690

BODY ASSY, PURGE

$39.99

$

Usually ships in 0 days

0

15

Echo P006000700

BULB, PURGE

$7.99

$

Usually ships in 0 days

0

16

Echo P006000710

RETAINER, PURGE BULB

$6.49

$

Usually ships in 0 days

0

17

Echo P006000720

SCREW

$1.99

$

Usually ships in 0 days

0

18

Echo P021054770

REPAIR KIT, CARBURETOR

Note: Includes Items 19-26

$22.99

$

Usually ships in 0 days

0

19

GASKET, FUEL PUMP

$

$

Not available

20

DIAPHRAGM, FUEL PUMP

$

$

Not available

21

SCREEN, FUEL INLET

$

$

Not available

22

VALVE, INLET NEEDLE

$

$

Not available

23

LEVER, METERING

$

$

Not available

24

PIN, METERING LEVER

$

$

Not available

25

GASKET, METERING DIAPHRAGM

$

$

Not available

26

DIAPHRAGM, METERING

$

$

Not available
