C 230 - Shindaiwa Brush Cutter (SN: T23420001001 - T23420999999) FUEL SYSTEM Parts Diagram

Brush Cutter

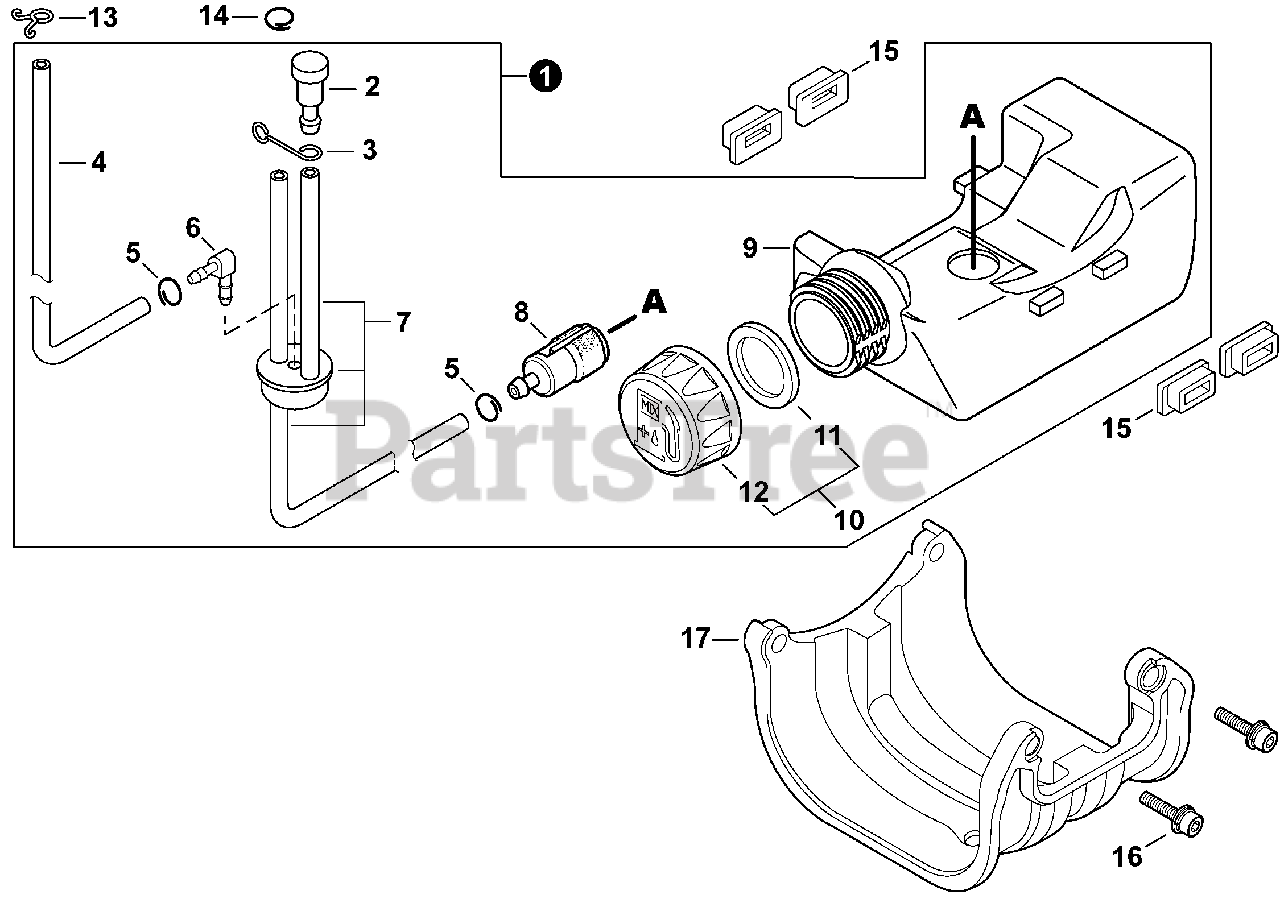

FUEL SYSTEM Parts Diagram

  • Title

1

Echo A038000430

TANK ASSY, FUEL
(Superseded to A038000431)

Note: Includes ITEMS 2-12

$55.99

$

In Stock, only 2 left!

0

2

Echo A356000040

VENT ASSY

$7.49

$

In Stock, Qty 20+

0

3

Echo A358000040

CLIP, VENT ASSY

$1.49

$

In Stock, Qty 5

0

4

Echo V471002790

PIPE, FUEL RETURN

$1.99

$

In Stock, Qty 18

0

5

Echo V490000500

CLIP 6

$1.49

$

In Stock, Qty 20+

0

6

Echo V186000270

CONNECTOR, PIPE

$3.49

$

In Stock, Qty 9

0

7

Echo V470001210

PIPE, FUEL

$4.99

$

In Stock, only 2 left!

0

8

Echo A369000070

FILTER, FUEL 125-528
(Superseded to A369000470)

$9.99

$

In Stock, Qty 20+

0

9

Echo A350001530

TANK, FUEL

$18.99

$

Usually ships in 2-4 days

0

10

Echo A033000070

CAP ASSY, FUEL

Note: Includes ITEMS 11-12

$4.99

$

In Stock, Qty 20+

0

11

Echo V107000010

GASKET, FUEL CAP

$1.99

$

In Stock, Qty 17

0

12

Echo A033000330

CAP ASSY, FUEL

$8.99

$

In Stock, only 3 left!

0

13

Echo V490000510

CLIP, SPRING 5.2

$1.49

$

In Stock, Qty 20+

0

14

Echo V490000500

CLIP 6

$1.49

$

In Stock, Qty 20+

0

15

Echo V420002630

CUSHION, FUEL TANK

$1.99

$

In Stock, Qty 13

0

16

Echo V203000591

BOLT 5x16
(Superseded to V203000591)

$1.49

$

In Stock, Qty 6

0

17

Echo A175000220

GUARD, PLASTIC FUEL TANK

$14.99

$

In Stock, only 2 left!

0
