C 230 - Shindaiwa Brush Cutter (SN: T23420001001 - T23420999999) GEAR CASE S/N T23420000001-T23420008600 Parts Diagram

Brush Cutter

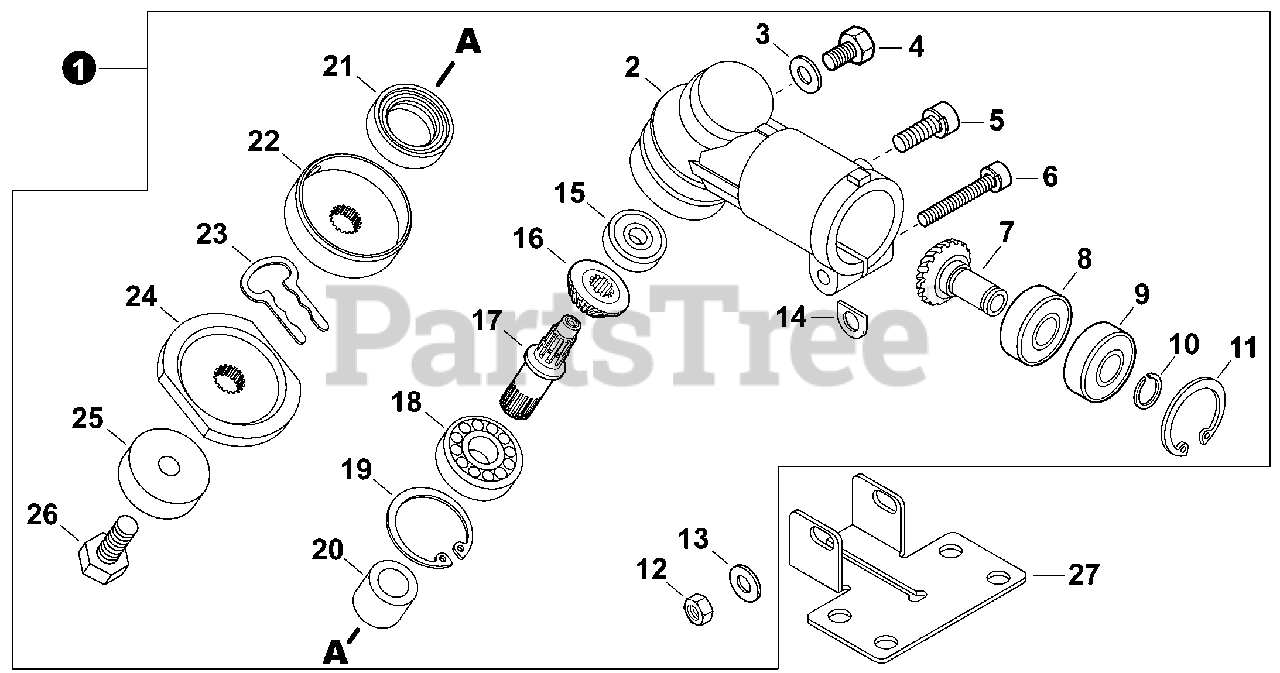

GEAR CASE S/N T23420000001-T23420008600 Parts Diagram

  • Title

1

Echo P021048040

GEAR CASE ASSY

Note: Includes ITEMS 2-26

$130.99

$

In Stock, only 3 left!

0

2

Echo C531000710

HOUSING, GEAR CASE
(Superseded to C531000711)

$22.99

$

Usually ships in 2-4 days

0

3

Echo V304000180

WASHER

$0.99

$

In Stock, Qty 9

0

4

Echo 9103006010

BOLT M6x10

$0.99

$

In Stock, Qty 9

0

5

Echo V203000591

BOLT 5x16
(Superseded to V203000591)

$0.99

$

In Stock, Qty 20+

0

6

Echo V203000601

BOLT M5x35
(Superseded to 90016205035)

$1.49

$

In Stock, Qty 16

0

7

Echo V651000700

GEAR, PINION

$19.99

$

Usually ships in 2-4 days

0

8

Echo 90080000608

BEARING, BALL 608

$5.99

$

In Stock, only 1 left!

0

9

Echo 90080400608

BEARING, BALL 608ZZ

$12.99

$

In Stock, only 3 left!

0

10

Echo 9241108000

E-RING 8

$0.99

$

In Stock, Qty 7

0

11

Echo 9242422000

RING, SNAP ?22

$0.99

$

In Stock, Qty 5

0

12

Echo 90050000005

NUT M5

$0.99

$

In Stock, Qty 20+

0

13

Echo 90060300005

WASHER 5.5x12x0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo V340000300

D-WASHER

$0.99

$

In Stock, Qty 10

0

15

Echo 90081200626

BEARING, BALL 626 DDU

$13.99

$

Usually ships in 2-4 days

0

16

Echo V651000690

GEAR, BEVEL

$15.99

$

Usually ships in 2-4 days

0

17

Echo C534000680

SHAFT, GEAR

$16.99

$

In Stock, only 1 left!

0

18

Echo 90080006000

BEARING, BALL 6000

$10.99

$

Usually ships in 2-4 days

0

19

Echo 9242426000

RING, SNAP ?26

$0.99

$

In Stock, Qty 10

0

20

Echo V356000480

SPACER

$2.99

$

In Stock, only 3 left!

0

21

Echo V509000000

SEAL, OIL

$3.49

$

In Stock, Qty 11

0

22

Echo C535000511

PLATE, ADAPTOR - UPPER

$20.99

$

In Stock, only 2 left!

0

23

Echo V490000530

CLIP, BLADE

$1.99

$

In Stock, Qty 15

0

24

Echo C535000521

PLATE, ADAPTOR - LOWER

$11.99

$

In Stock, Qty 5

0

25

Echo C535000530

GUARD, BOLT

$3.49

$

In Stock, Qty 8

0

26

Echo V216000040

BOLT M7x18

$3.99

$

In Stock, only 2 left!

0

27

Echo C551000150

PLATE, SHIELD MOUNTING

$4.49

$

In Stock, Qty 7

0
