C 230 - Shindaiwa Brush Cutter (SN: T23420001001 - T23420999999) THROTTLE CONTROL Parts Diagram

Brush Cutter

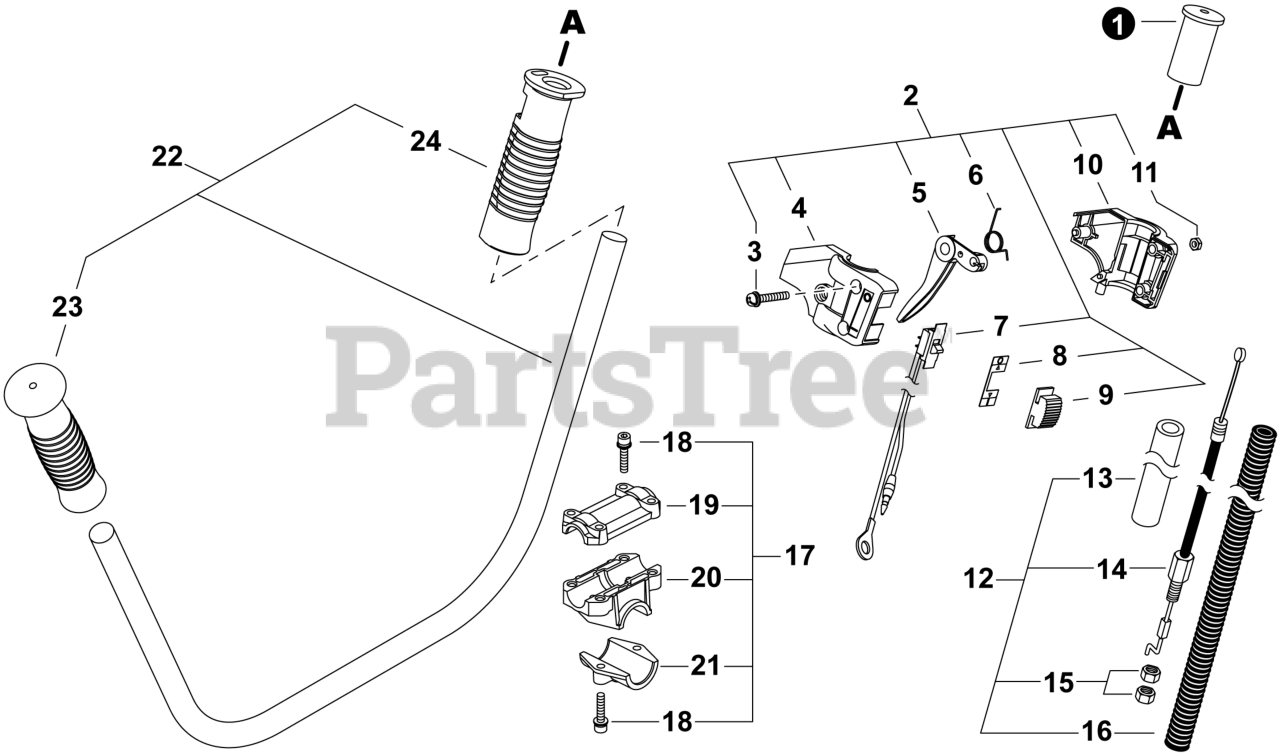

THROTTLE CONTROL Parts Diagram

  • Title

1

Echo V376001260

SPACER

$5.99

$

In Stock, only 2 left!

0

2

Echo C044000410

THROTTLE CONTROL ASSY

Note: Includes Items 3-11

$34.99

$

Usually ships in 2-4 days

0

3

Echo 9157405030

SCREW M5x30

$1.49

$

In Stock, Qty 10

0

4

Echo C401000090

CONTROL HANDLE - LEFT

$7.49

$

In Stock, Qty 6

0

5

Echo C450000460

TRIGGER, THROTTLE

$8.49

$

In Stock, Qty 12

0

6

Echo V452000440

SPRING, RETURN

$1.99

$

In Stock, Qty 8

0

7

Echo A440001410

SWITCH, ON-OFF

$26.99

$

Usually ships in 2-4 days

0

8

Echo X510000500

PLATE, SWITCH

$2.99

$

Usually ships in 2-4 days

0

9

Echo A444000090

KNOB, SWITCH

$2.99

$

In Stock, only 4 left!

0

10

Echo C401000080

CONTROL HANDLE - RIGHT

$6.99

$

In Stock, Qty 5

0

11

Echo 90050200005

NUT M5

$0.99

$

In Stock, Qty 8

0

12

Echo V471004290

TUBE 5x8x20

$2.99

$

Usually ships in 2-4 days

0

13

Echo P021023260

CABLE ASSY, THROTTLE

Note: Includes Items 14-16

$

$

Not available

14

Echo V430002660

CABLE, THROTTLE

$11.99

$

In Stock, only 2 left!

0

15

Echo 90050200006

NUT M6

$0.99

$

In Stock, Qty 11

0

16

Echo V475004540

TUBE, FLEXIBLE

$

$

Not available

17

Echo P021024921

BRACKET ASSY

Note: Includes Items 18-21

$31.99

$

Usually ships in 2-4 days

0

18

Echo V203000630

BOLT M5x25

$1.49

$

In Stock, Qty 20+

0

19

Echo C423000520

BRACKET, UPPER HANDLEBAR

$5.49

$

Usually ships in 2-4 days

0

20

Echo C423000440

BRACKET, LOWER HANDLEBAR

$10.99

$

In Stock, only 1 left!

0

21

Echo C423000450

BRACKET, MOUNTING

$5.49

$

Usually ships in 2-4 days

0

22

Echo P021035430

HANDLEBAR ASSY

Note: Includes Items 23-24

$130.99

$

Usually ships in 2-4 days

0

23

Echo C403000210

GRIP

$14.99

$

Usually ships in 2-4 days

0

24

Echo C403000340

GRIP, THROTTLE

$18.99

$

Usually ships in 2-4 days

0
