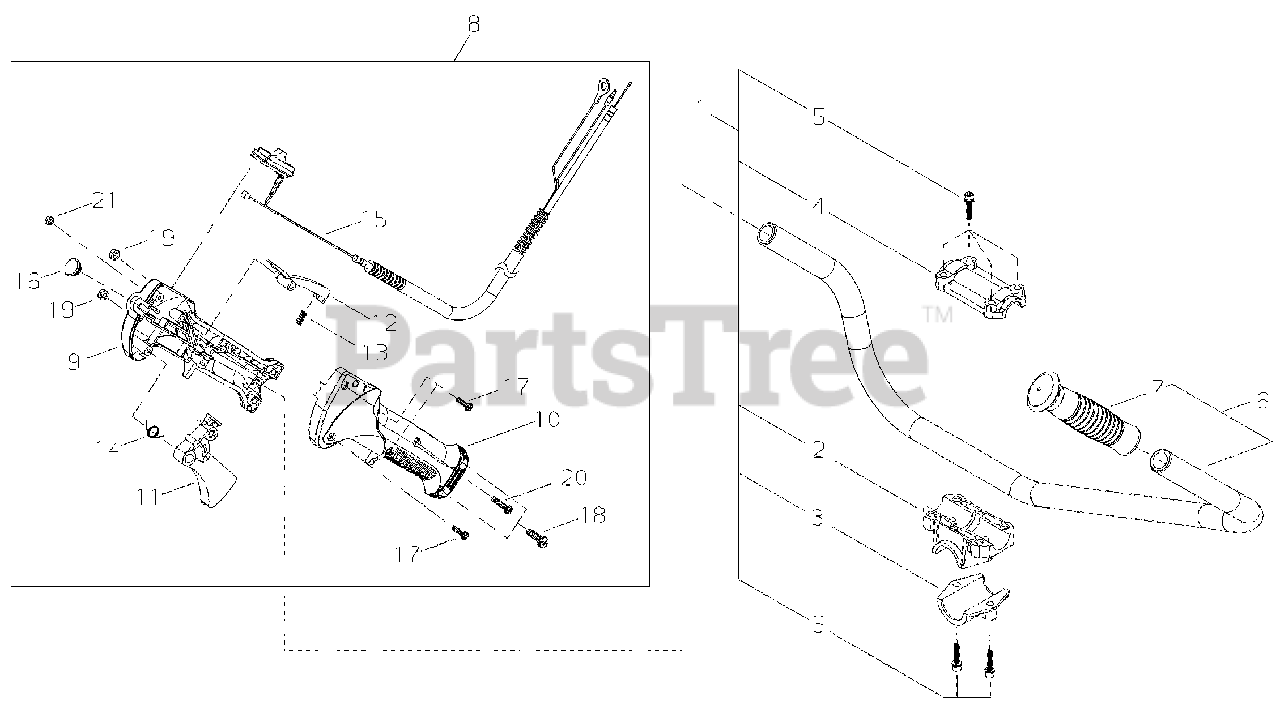

C 242 - Shindaiwa Brush Cutter (Original Version) Handle Assembly, Throttle Lever Assembly Parts Diagram

Brush Cutter

Handle Assembly, Throttle Lever Assembly Parts Diagram

  • Title

1

Echo 34004-64020

HANDLE BRACKET KIT
(Superseded to P021024920)

$26.99

$

In Stock, only 2 left!

0

2

Echo 34004-64110

BRACKET, HANDLE - LOWER
(Superseded to C423000440)

$8.99

$

In Stock, only 1 left!

0

3

Echo 34004-64120

BRACKET, MOUNTING
(Superseded to C423000450)

$4.49

$

In Stock, only 1 left!

0

4

Echo 34004-64130

BRACKET, HANDLE - UPPER
(Superseded to C423000520)

$4.99

$

Usually ships in 2-4 days

0

5

Echo 11022-05250

SCREW - 5X25
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

6

Echo 64117-64030

HANDLE ASSY
(Superseded to C080000120)

$68.99

$

Usually ships in 2-4 days

0

7

Echo 22421-14230

GRIP - LEFT
(Superseded to C403000210)

$11.99

$

Usually ships in 2-4 days

0

8

Echo 64117-64060

THROTTLE LEVER ASSY

$

$

Not available

9

Echo 64117-64320

HANDLE, CONTROL - RIGHT
(Superseded to C401000100)

$21.99

$

Usually ships in 2-4 days

0

10

Echo 64117-64330

HANDLE, CONTROL - LEFT
(Superseded to C401000110)

$21.99

$

Usually ships in 2-4 days

0

11

Echo 70871-65130

TRIGGER, THROTTLE
(Superseded to C450000580)

$3.99

$

Usually ships in 2-4 days

0

12

Echo 70871-65140

LEVER, TRIGGER LOCKOUT
(Superseded to C460000240)

$1.99

$

In Stock, only 1 left!

0

13

Echo 70871-65150

SPRING
(Superseded to V450001020)

$0.99

$

In Stock, Qty 9

0

14

Echo 70871-65160

SPRING
(Superseded to V452000690)

$0.99

$

In Stock, Qty 9

0

15

Echo 64117-64340

THROTTLE CONTROL ASSY
(Superseded to V043000400)

$50.99

$

Usually ships in 2-4 days

0

16

Echo 22150-33630

PLUG
(Superseded to V162000410)

$2.49

$

In Stock, only 4 left!

0

17

Echo 70871-65311

SCREW - 4X16 -- TAPPING
(Superseded to V252000360)

$0.99

$

Usually ships in 2-4 days

0

18

Echo 70871-65320

SCREW - 5X20
(Superseded to V253000580)

$0.99

$

Usually ships in 2-4 days

0

19

Echo 01501-05030

NUT - 5
(Superseded to 9201705000)

$0.99

$

In Stock, Qty 17

0

20

Echo 70871-65331

SCREW - 4X23
(Superseded to V252000370)

$1.99

$

In Stock, Qty 12

0

21

Echo 70871-65340

NUT - 4
(Superseded to V262000100)

$0.99

$

In Stock, Qty 20+

0
