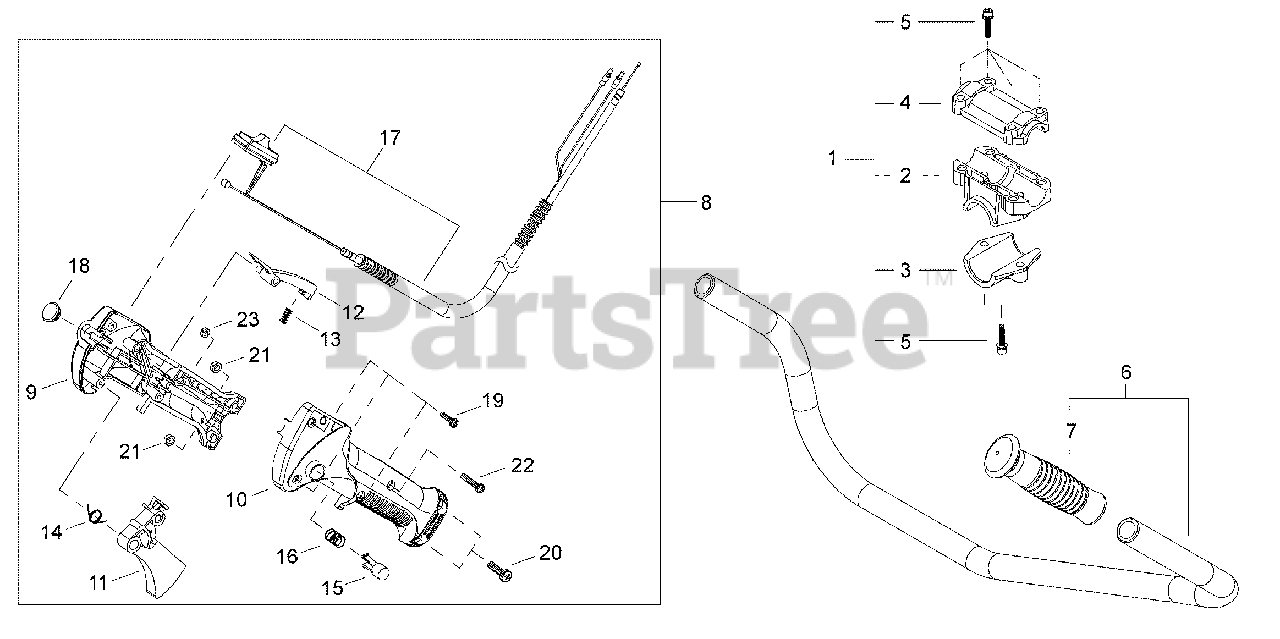

C 2510 - Shindaiwa Brush Cutter Handlebar, Throttle Parts Diagram

Brush Cutter

Handlebar, Throttle Parts Diagram

  • Title

1

Echo 34004-64020

HANDLE BRACKET KIT
(Superseded to P021024920)

Note: Includes ITEMS 2-5

$29.99

$

Usually ships in 2-4 days

0

2

Echo 34004-64110

BRACKET, HANDLE - LOWER
(Superseded to C423000440)

$9.99

$

In Stock, only 1 left!

0

3

Echo 34004-64120

BRACKET, MOUNTING
(Superseded to C423000450)

$4.99

$

In Stock, only 1 left!

0

4

Echo 34004-64130

BRACKET, HANDLE - UPPER
(Superseded to C423000520)

$5.49

$

Usually ships in 2-4 days

0

5

Echo 11022-05250

SCREW - 5X25
(Superseded to V203000630)

$1.49

$

In Stock, Qty 20+

0

6

Echo 64117-64030

HANDLE ASSY
(Superseded to C080000120)

Note: Includes ITEM 7

$76.99

$

Usually ships in 2-4 days

0

7

Echo 22421-14230

GRIP - LEFT
(Superseded to C403000210)

$12.99

$

Usually ships in 2-4 days

0

8

Echo 64907-64060

THROTTLE CONTROL ASSY

Note: Includes ITEMS 9-23

$80.99

$

Usually ships in 2-4 days

0

9

Echo 64117-64320

HANDLE, CONTROL - RIGHT
(Superseded to C401000100)

$23.99

$

Usually ships in 2-4 days

0

10

Echo 64907-64340

HANDLE, CONTROL - LEFT
(Superseded to C401000230)

$21.99

$

Usually ships in 2-4 days

0

11

Echo 70871-65130

TRIGGER, THROTTLE
(Superseded to C450000580)

$4.49

$

In Stock, only 1 left!

0

12

Echo 70871-65140

LEVER, TRIGGER LOCKOUT
(Superseded to C460000240)

$2.49

$

In Stock, only 1 left!

0

13

Echo 70871-65150

SPRING
(Superseded to V450001020)

$1.49

$

In Stock, Qty 9

0

14

Echo 70871-65160

SPRING
(Superseded to V452000690)

$1.49

$

In Stock, Qty 9

0

15

Echo 70871-65170

BUTTON, THROTTLE LOCK
(Superseded to C461000080)

$2.49

$

Usually ships in 2-4 days

0

16

Echo 70871-65180

SPRING
(Superseded to V450001010)

$1.49

$

In Stock, Qty 6

0

17

Echo 64907-64310

IGNITION SWITCH ASSY
(Superseded to V043000440)

$50.99

$

Usually ships in 2-4 days

0

18

Echo 22150-33630

PLUG
(Superseded to V162000410)

$2.99

$

In Stock, only 1 left!

0

19

Echo 70871-65311

SCREW - 4X16 -- TAPPING
(Superseded to V252000360)

$1.49

$

Usually ships in 2-4 days

0

20

Echo 70871-65320

SCREW - 5X20
(Superseded to V253000580)

$1.49

$

In Stock, Qty 10

0

21

Echo 01501-05030

NUT - 5
(Superseded to 9201705000)

$1.49

$

In Stock, Qty 12

0

22

Echo 70871-65331

SCREW - 4X23
(Superseded to V252000370)

$1.99

$

Usually ships in 2-4 days

0

23

Echo 70871-65340

NUT - 4
(Superseded to V262000100)

$1.49

$

In Stock, Qty 10

0
