C-26 - Troy-Bilt 13-Bushel Dump Cart MAIN ASSEMBLY Parts Diagram

13-Bushel Dump Cart

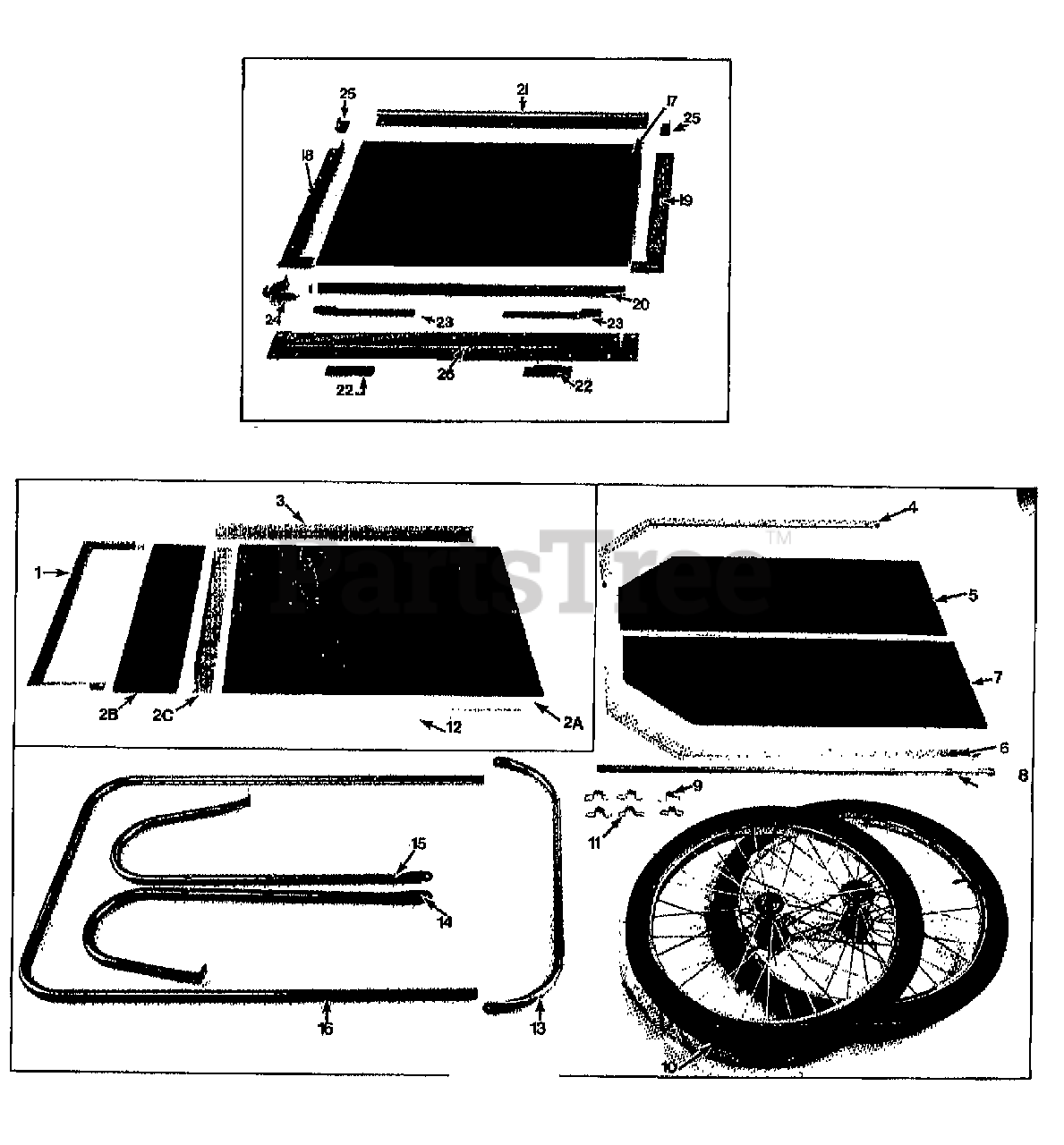

MAIN ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 03626

PROTECTOR-M26 REAR EDGE

$

$

Currently unavailable

2A

Troy-Bilt 03153

PANEL-BOTTOM FRT W/TNUTS

$

$

Currently unavailable

2B

Troy-Bilt 03152

PANEL-REAR BOTTOM W/TNUTS

$

$

Currently unavailable

2C

Troy-Bilt 03147

SUPT-REAR BOTTOM KM26

$

$

Currently unavailable

3

Troy-Bilt 03057

ANGLE-26 SOLID FRONT BOT LT

$

$

Currently unavailable

4

Troy-Bilt 03059

PROTECTOR-SIDE LT

$

$

Currently unavailable

5

Troy-Bilt 03149

PANEL-03052 LFT KM26 W/NUTS

$

$

Currently unavailable

6

Troy-Bilt 03058

PROTECTOR-26 TOP EDGE RT

$

$

Currently unavailable

7

Troy-Bilt 03150

PANEL-RT W/TNUTS KM26

$

$

Currently unavailable

8

Troy-Bilt 03616

AXLE-MODEL 26

$

$

Currently unavailable

9

Troy-Bilt 03203

CLAMP-AXLE 20 & 26

$

$

Currently unavailable

10

Troy-Bilt 03870

WHEEL&TIRE-COMP. M26

$

$

Currently unavailable

10

Troy-Bilt 03886

TUBE-(ONLY) M26

$

$

Currently unavailable

10

Troy-Bilt 03876

TIRE (ONLY) M26 DIA TREAD

$

$

Currently unavailable

10

Troy-Bilt 03956

BEARINGS-WHEEL 20&26

$

$

Currently unavailable

11

Troy-Bilt 03906

WHEEL-RIM & BEARING

$

$

Currently unavailable

11

Troy-Bilt 03145

CLAMP-HANDLE KM26

$

$

Currently unavailable

12

Troy-Bilt 03055

ANGLE-BOTM 26 SOLID FRONT RT

$

$

Currently unavailable

13

0

N/A

$

$

Not available

14

Troy-Bilt 03143

BRACE-CROSS KM26

$

$

Currently unavailable

15

Troy-Bilt 03141

STAND-RIGHT HAND KM26

$

$

Currently unavailable

16

Troy-Bilt 03142

STAND-LEFT HAND KM26

$

$

Currently unavailable

16

Troy-Bilt 03144

HANDLE-KM26

$

$

Currently unavailable

17

Troy-Bilt 03151

PANEL-FRNT DOOR W/T NUTS

$

$

Currently unavailable

18

Troy-Bilt 03067

SUPT-SIDE 26 SWING FRONT LT

$

$

Currently unavailable

19

Troy-Bilt 03068

SUPT-SIDE 26 SWING FRONT RT

$

$

Currently unavailable

20

Troy-Bilt 03063

EDGE-BOT 26 SWING FRONT

$

$

Currently unavailable

21

Troy-Bilt 03064

EDGE-TOP 26 SWING FRONT

$

$

Currently unavailable

22

Troy-Bilt 03073

PLATE-LATCH 20&26 SWING FRONT

$

$

Currently unavailable

23

Troy-Bilt 03074

LATCH-20&26 SWING FRONT

$

$

Currently unavailable

24

Troy-Bilt 03069

ASSM-20&26 PLUNGER

$

$

Currently unavailable

25

Troy-Bilt 03072

HINGE-20&26 SWING FRONT

$

$

Currently unavailable

26

Troy-Bilt 03065

SUPT-BOT 26 SWING FRONT

$

$

Currently unavailable

?27

Troy-Bilt 03208

SCR-PH 1/4-20 X .5

$

$

Currently unavailable

?28

Troy-Bilt 03209

BOLT-1/4 X 5/8 PAN HD

$

$

Currently unavailable

?29

Troy-Bilt 9675

BOLT-SLPH 1/4-20 X.875-ZP

$

$

Currently unavailable

?30

Troy-Bilt 03213

BOLT-1/4 X 1 PAN HD

$

$

Currently unavailable

?31

Troy-Bilt 9676

BOLT-SLPH 1/4-20X1.125ZP

$

$

Currently unavailable

?32

Troy-Bilt 9850

BOLT-SLPH-1/4-20X1 3/8 ZP

$

$

Currently unavailable

?33

Troy-Bilt 9550

SCR-HH 5/16-18X.5 GD5 YEL

$

$

Currently unavailable

?34

Troy-Bilt 03207

NUT-LK 1/4-20

$

$

Currently unavailable

?35

Troy-Bilt 9846

NUT-H/LK 5/16-18 NYLOCK

$

$

Currently unavailable

?36

Troy-Bilt 03205

NUT-HT/LK 1/4-20X.375

$

$

Currently unavailable

?37

Troy-Bilt 03075

SPACER-20&26 SWING FRONT

$

$

Currently unavailable

?38

Troy-Bilt 9427

BUSHING-.31X.188X.38

$

$

Currently unavailable

?39

Troy-Bilt 9667

SCR-WOOD RHS M8X.75 ZP

$

$

Currently unavailable

?40

Troy-Bilt 03658

PIVOT-HINGE M26 R/D

$

$

Currently unavailable

?41

Troy-Bilt 03617

CASE FEET

$

$

Currently unavailable

?42

Troy-Bilt 03204

PIN-COTTER 3/32 X 1 1/4

$

$

Currently unavailable

Troy-Bilt 03077

HDW PKG-26 SWING FRONT

$

$

Currently unavailable

Troy-Bilt 11052

KIT-HDW CART M26 T/B

$

$

Currently unavailable
