C 27 - Shindaiwa Brush Cutter Fuel Tank Parts Diagram

Brush Cutter

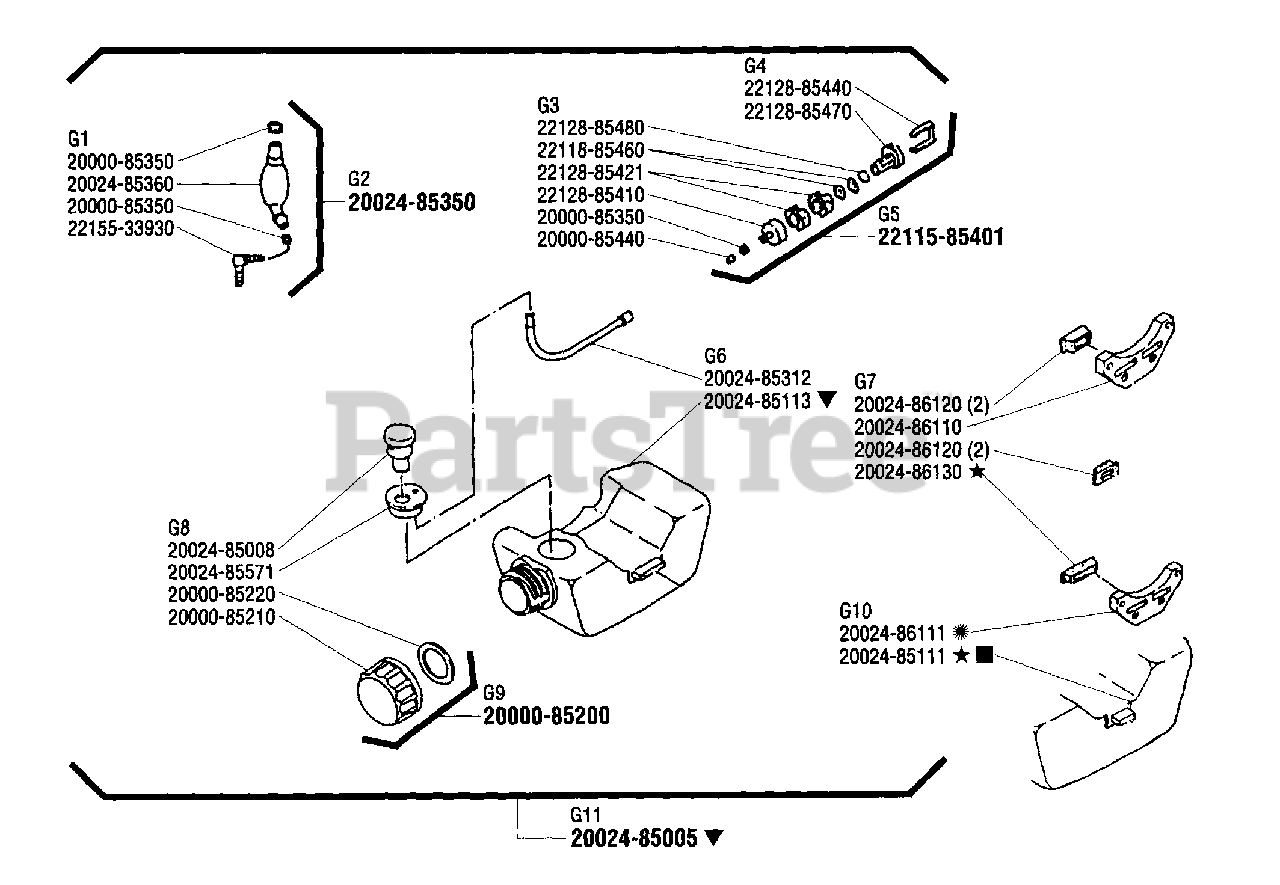

Fuel Tank Parts Diagram

  • Title

G11-20024-85005

Echo 20024-85005

FUEL TANK ASSY
(Superseded to P021018070)

Note: PR 127

$

$

Not available

G2-20024-85350

Echo 20024-85350

PUMP ASSY
(Superseded to A035000000)

$6.99

$

Usually ships in 2-4 days

0

G1-20000-85350

Echo 20000-85350

CLAMP B
(Superseded to V490000610)

$0.99

$

In Stock, Qty 20+

0

G1-20024-85360

Echo 20024-85360

PUMP
(Superseded to V470000980)

$6.99

$

In Stock, Qty 7

0

G1-22155-33930

Echo 22155-33930

JOINT
(Superseded to V186000280)

$3.49

$

In Stock, Qty 15

0

G5-22115-85401

Echo 22115-85401

FUEL FILTER ASSY
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

G3-20000-85350

Echo 20000-85350

CLAMP B
(Superseded to V490000610)

$0.99

$

In Stock, Qty 20+

0

G3-20000-85440

Echo 20000-85440

CHECK VALVE
(Superseded to A356000080)

$7.49

$

In Stock, Qty 7

0

G3-22118-85460

Echo 22118-85460

SCREEN
(Superseded to A371000010)

$9.49

$

In Stock, Qty 20+

0

G3-22128-85410

Echo 22128-85410

WEIGHT, FUEL
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

G3-22128-85421

Echo 22128-85421

FILTER ELEMENT, FELT
(Superseded to A371000000)

$2.99

$

In Stock, Qty 18

0

G3-22128-85480

Echo 22128-85480

RING
(Superseded to V583000200)

$9.49

$

In Stock, Qty 20+

0

G4-22128-85440

Echo 22128-85440

CLIP, FILTER
(Superseded to V490000750)

$9.49

$

In Stock, Qty 20+

0

G4-22128-85470

Echo 22128-85470

SLEEVE
(Superseded to A372000000)

$

$

Not available

G6-20024-85113

Echo 20024-85113

FUEL TANK
(Superseded to A350001220)

Note: PR 127

$15.99

$

Usually ships in 2-4 days

0

G6-20024-85312

Echo 20024-85312

FUEL PIPE
(Superseded to V470000990)

$5.49

$

Usually ships in 2-4 days

0

G7-20024-86110

Echo 20024-86110

TANK HOLDER, USE 20024-86112
(Superseded to 20024-86112)

$5.99

$

In Stock, only 1 left!

0

G7-20024-86120

Echo 20024-86120

CUSHION, FRONT TANK
(Superseded to V420002630)

$1.49

$

In Stock, Qty 20+

0

G7-20024-86130

Echo 20024-86130

CUSHION, REAR TANK
(Superseded to 62074-85220)

Note: PR 87

$

$

Not available

G8-20024-85008

Echo 20024-85008

BREATHER ASSY
(Superseded to A039000010)

$14.99

$

In Stock, only 1 left!

0

G8-20024-85571

Echo 20024-85571

GROMMET
(Superseded to V137000060)

$3.49

$

In Stock, only 3 left!

0

G9-20000-85200

Echo 20000-85200

FUEL CAP ASSY, USE 20000-85201
(Superseded to 20000-85201)

$3.99

$

In Stock, Qty 17

0

G8-20000-85210

Echo 20000-85210

$

$

Currently unavailable

G8-20000-85220

Echo 20000-85220

GASKET, FUEL
(Superseded to 20000-85221)

$1.99

$

In Stock, Qty 20+

0

G10-20024-85111

Echo 20024-85111

FUEL TANK
(Superseded to 20024-85112)

Note: PR 87. Not available, use 20024-85113

$15.99

$

Usually ships in 2-4 days

0

G10-20024-86111

Echo 20024-86111

TANK HOLDER
(Superseded to 20024-86112)

Note: SB 29

$5.99

$

In Stock, only 1 left!

0
