C 270 - Shindaiwa Brush Cutter (EMC Version) Engine Parts Diagram

Brush Cutter (EMC Version)

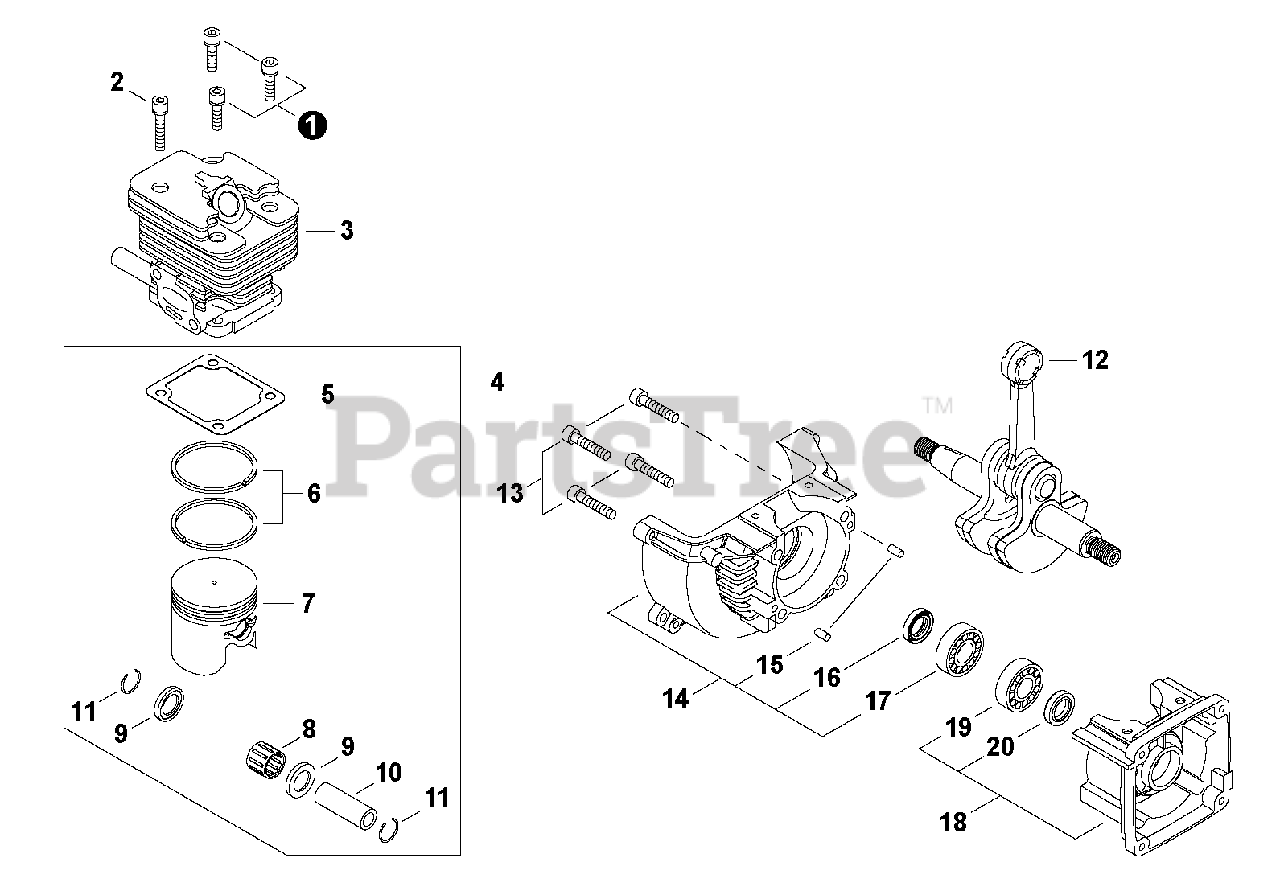

Engine Parts Diagram

  • Title

1

Echo V203000720

BOLT M5×16
(Superseded to 9112205016)

$1.49

$

In Stock, only 2 left!

0

2

Echo V203000730

BOLT

$1.99

$

In Stock, only 2 left!

0

3

Echo A130001230

CYLINDER

$70.99

$

In Stock, only 2 left!

0

4

Echo P021030550

PISTON KIT

$

$

Not available

5

Echo V100000410

GASKET, CYLINDER

$3.49

$

In Stock, Qty 7

0

6

Echo A101000330

RING, PISTON

$5.99

$

In Stock, only 4 left!

0

7

Echo A100000610

PISTON

$35.99

$

Usually ships in 2-4 days

0

8

Echo V554000000

BEARING, NEEDLE

$7.99

$

Usually ships in 2-4 days

0

9

Echo V392000020

WASHER, THRUST 9

$2.99

$

In Stock, Qty 8

0

10

Echo V607000020

PIN, PISTON

$5.49

$

Usually ships in 2-4 days

0

11

Echo V580000090

RING, SNAP

$6.49

$

Usually ships in 2-4 days

0

12

Echo A011000770

CRANKSHAFT ASSY

$74.99

$

In Stock, only 2 left!

0

13

Echo 90010505025

BOLT 5×25

$1.49

$

In Stock, Qty 8

0

14

Echo P021027920

CRANKCASE ASSY, M
(Superseded to P021027921)

$34.99

$

Usually ships in 2-4 days

0

15

Echo 90033050100

PIN, LOCATING 5×10

$1.49

$

Usually ships in 2-4 days

0

16

Echo V505000080

SEAL, OIL 12

$3.49

$

In Stock, Qty 5

0

17

Echo V592000330

BEARING, BALL 6201 C3
(Superseded to 9403536201)

$9.99

$

In Stock, only 3 left!

0

18

Echo P021027910

CRANKCASE ASSY, S
(Superseded to P021027911)

$41.99

$

Usually ships in 2-4 days

0

19

Echo V592000330

BEARING, BALL 6201 C3
(Superseded to 9403536201)

$9.99

$

In Stock, only 3 left!

0

20

Echo V505000080

SEAL, OIL 12

$3.49

$

In Stock, Qty 5

0
