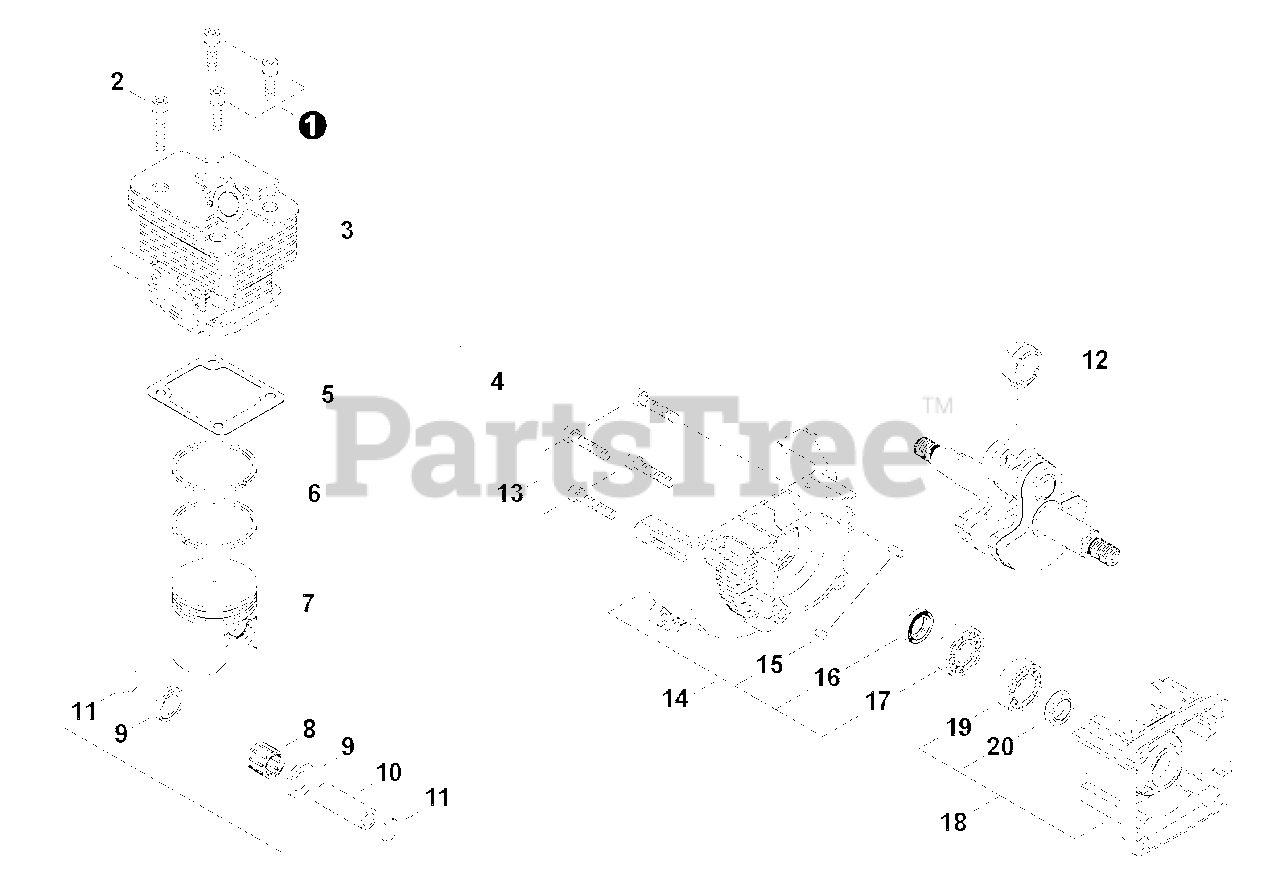

C 270 - Shindaiwa Brush Cutter (EMC Version) Engine Parts Diagram

Brush Cutter (EMC Version)

Engine Parts Diagram

  • Title

1

Echo V203000720

Bolt M5x16
(Superseded to 9112205016)

$0.99

$

In Stock, Qty 20+

0

2

Echo V203000730

Bolt

$1.99

$

Usually ships in 2-4 days

0

3

Echo A130001230

Cylinder

$58.99

$

In Stock, only 1 left!

0

4

Echo P021030550

Piston Kit

$61.99

$

In Stock, only 1 left!

0

5

Echo V100000410

Gasket, Cylinder

$2.99

$

In Stock, Qty 20+

0

6

Echo A101000330

Ring, Piston

$4.99

$

In Stock, Qty 5

0

7

Echo A100000610

Piston

$29.99

$

Usually ships in 2-4 days

0

8

Echo V554000000

Bearing, Needle

$6.49

$

Usually ships in 2-4 days

0

9

Echo V392000020

Washer, Thrust 9

$2.49

$

In Stock, Qty 10

0

10

Echo V607000020

Pin, Piston

$4.49

$

Usually ships in 2-4 days

0

11

Echo V580000090

Ring, Snap

$5.49

$

In Stock, only 2 left!

0

12

Echo A011000770

Crankshaft Assy

$62.99

$

Usually ships in 2-4 days

0

13

Echo 90010505025

Bolt 5x25

$1.49

$

In Stock, Qty 20+

0

14

Echo P021027920

Crankcase Assy, M

$24.99

$

In Stock, only 2 left!

0

15

Echo 90033050100

Pin, Locating 5x10

$0.99

$

Usually ships in 2-4 days

0

16

Echo V505000080

Seal, Oil 12

$2.99

$

In Stock, Qty 19

0

17

Echo V592000330

Bearing, Ball 6201 C3
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 12

0

18

Echo P021027910

Crankcase Assy, S
(Superseded to P021027911)

$34.99

$

Usually ships in 2-4 days

0

19

Echo V592000330

Bearing, Ball 6201 C3
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 12

0

20

Echo V505000080

Seal, Oil 12

$2.99

$

In Stock, Qty 19

0
