C 270 - Shindaiwa Brush Cutter (EMC Version) Gear Case S/N 20029542-20030347 Parts Diagram

Brush Cutter (EMC Version)

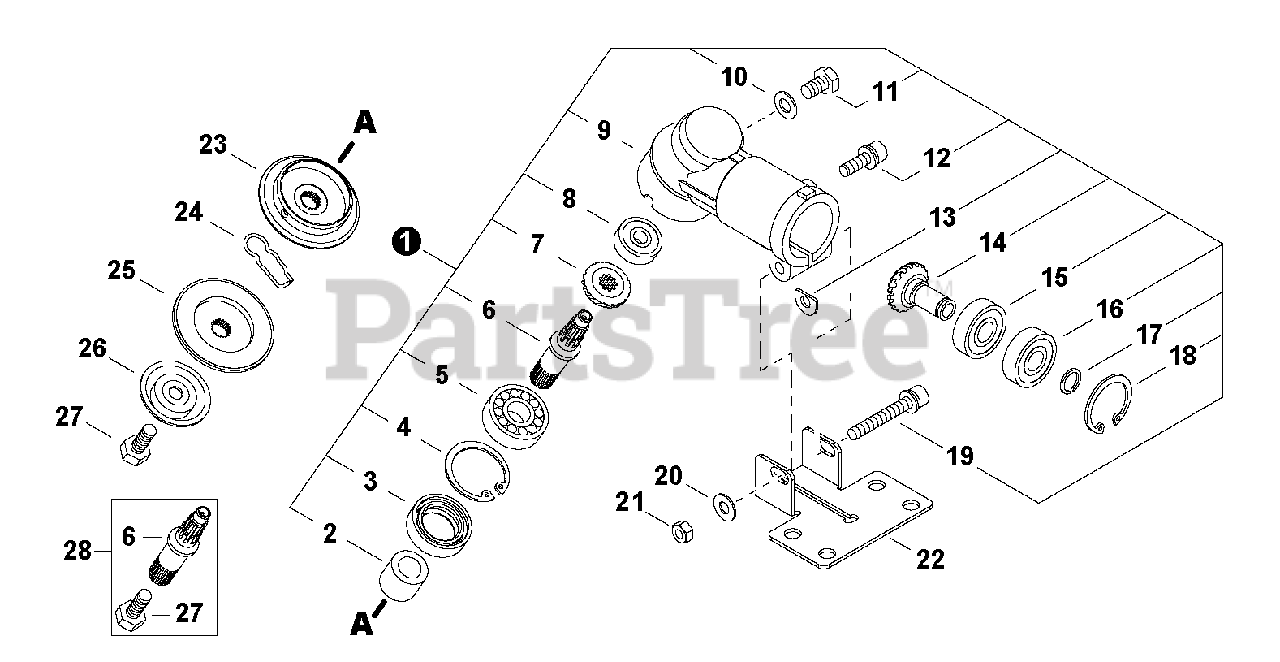

Gear Case S/N 20029542-20030347 Parts Diagram

  • Title

1

Echo P021039240

GEAR CASE ASSY
(Superseded to P021039241)

$256.99

$

Usually ships in 2-4 days

0

2

Echo V356000500

SPACER

$4.99

$

In Stock, only 2 left!

0

3

Echo V510000000

SEAL, OIL

$5.49

$

In Stock, only 2 left!

0

4

Echo 9242432000

RING, SNAP Ø32
(Superseded to 90070200032)

$2.49

$

In Stock, only 2 left!

0

5

Echo 90081006201

BEARING, BALL 6201

$8.49

$

In Stock, only 2 left!

0

6

Echo C534000900

SHAFT, GEAR

$

$

Currently unavailable

7

Echo V651000450

GEAR, BEVEL

$23.99

$

In Stock, Qty 13

0

8

Echo 9402840609

BEARING, BALL

$14.99

$

Usually ships in 2-4 days

0

9

Echo C531000580

CASE, GEAR
(Superseded to C531000581)

$29.99

$

Usually ships in 2-4 days

0

10

Echo V307000230

WASHER

$1.49

$

In Stock, only 3 left!

0

11

Echo V206000250

BOLT M6×10

$1.99

$

In Stock, Qty 18

0

12

Echo V203000590

BOLT M5×16
(Superseded to V203000591)

$1.49

$

In Stock, Qty 6

0

13

Echo V340000280

D-WASHER

$1.49

$

In Stock, Qty 6

0

14

Echo V651000460

GEAR, PINION

$26.99

$

In Stock, Qty 16

0

15

Echo 90085506901

BEARING, BALL 6901

$17.99

$

In Stock, only 2 left!

0

16

Echo 90085906901

BEARING, BALL 6901ZZ

$25.99

$

Usually ships in 2-4 days

0

17

Echo V583000170

RING, SNAP Ø12
(Superseded to 90070600012)

$1.49

$

In Stock, Qty 20+

0

18

Echo 9242424000

RING, SNAP Ø24

$1.49

$

In Stock, only 4 left!

0

19

Echo V204000450

BOLT M6×40

$1.99

$

In Stock, only 1 left!

0

20

Echo 90060300006

WASHER 6.5×13×1

$0.99

$

In Stock, Qty 20+

0

21

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

22

Echo C551000140

PLATE, SHIELD MOUNTING

$4.49

$

In Stock, Qty 7

0

23

Echo C535000640

PLATE, ADAPTOR - UPPER
(Superseded to C535000641)

$34.99

$

Usually ships in 2-4 days

0

24

Echo V641000150

CLIP, BLADE
(Superseded to V641000250)

$2.99

$

In Stock, only 2 left!

0

25

Echo C535000650

PLATE, ADAPTOR - LOWER
(Superseded to C535000651)

$30.99

$

Usually ships in 2-4 days

0

26

Echo C535000630

GUARD, BOLT

$5.99

$

Usually ships in 2-4 days

0

27

Echo V205001070

BOLT 8

$3.49

$

Usually ships in 2-4 days

0

28

Echo P021039350

GEAR SHAFT SET

$29.99

$

In Stock, only 1 left!

0
