C 270 - Shindaiwa Brush Cutter (EMC Version) Ignition / Flywheel Parts Diagram

Brush Cutter (EMC Version)

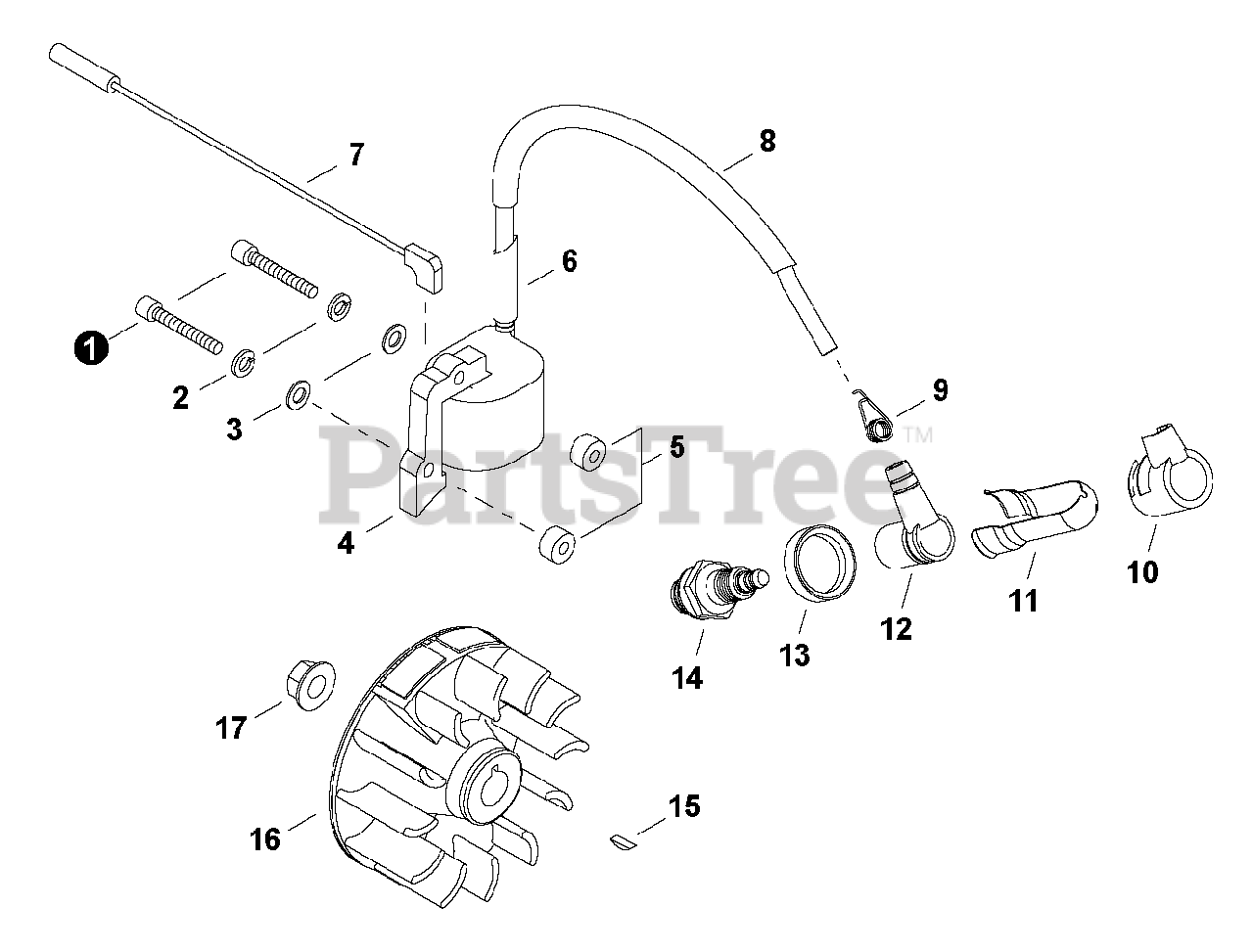

Ignition / Flywheel Parts Diagram

  • Title

1

Echo 90010504030

BOLT 4×30

$1.49

$

In Stock, only 3 left!

0

2

Echo 900605-00004

WASHER, SPRING 4 MM

$0.99

$

In Stock, Qty 20+

0

3

Echo 90060300004

WASHER 4 MM

$0.99

$

In Stock, Qty 6

0

4

Echo A411000910

COIL, IGNITION

$82.99

$

In Stock, Qty 7

0

5

Echo V322000040

INSULATOR 4.2×11×6

$1.49

$

In Stock, only 4 left!

0

6

Echo V475004430

TUBE, INSULATOR

$1.49

$

Usually ships in 2-4 days

0

7

Echo V485001510

LEAD - GROUND

$2.99

$

In Stock, only 2 left!

0

8

Echo V475004640

TUBE

$1.99

$

In Stock, only 3 left!

0

9

Echo A426000050

TERMINAL, SPARK PLUG

$1.99

$

In Stock, Qty 6

0

10

Echo A429000110

COVER, CAP

$1.99

$

In Stock, Qty 17

0

11

Echo V151000050

SHIELD

$6.49

$

Usually ships in 2-4 days

0

12

Echo A427000090

CAP, SPARK PLUG

$7.49

$

In Stock, only 2 left!

0

13

Echo V495001440

SEAL, SPARK PLUG

$1.49

$

In Stock, only 4 left!

0

14

Echo 15901010130

SPARK PLUG - BMR6A

$3.99

$

Usually ships in 2-6 days

0

15

Echo 9311503010

KEY, WOODRUFF 3×10

$0.99

$

In Stock, Qty 13

0

16

Echo A409000570

FLYWHEEL

$52.99

$

In Stock, only 2 left!

0

17

Echo V265000140

NUT M8

$1.49

$

In Stock, only 3 left!

0
