C 270 - Shindaiwa Brush Cutter (EMC Version) Intake / Exhaust Parts Diagram

Brush Cutter (EMC Version)

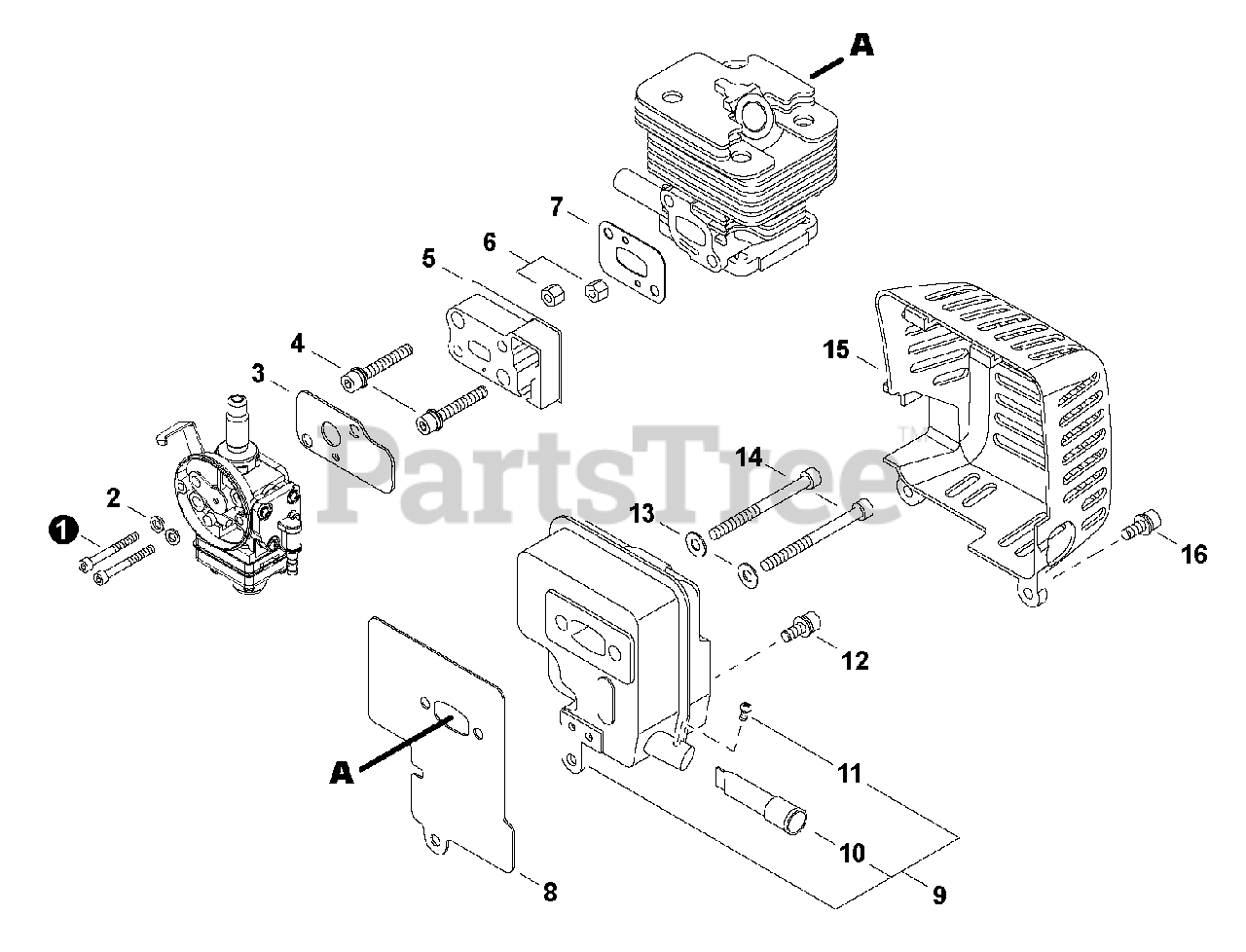

Intake / Exhaust Parts Diagram

  • Title

1

Echo 9110005065

BOLT M5×65

$0.99

$

In Stock, Qty 16

0

2

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

3

Echo V103000890

GASKET, CARBURETOR

$2.49

$

Usually ships in 2-4 days

0

4

Echo V203000351

BOLT 5×20

$1.49

$

In Stock, Qty 8

0

5

Echo A200000590

INSULATOR
(Superseded to A200000591)

$13.99

$

In Stock, only 1 left!

0

6

Echo V263000180

NUT

$1.49

$

In Stock, only 4 left!

0

7

Echo V103000840

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

8

Echo V104001200

GASKET, MUFFLER

$7.49

$

In Stock, only 2 left!

0

9

Echo A030000190

MUFFLER ASSY

$40.99

$

In Stock, only 2 left!

0

10

Echo A310000260

SCREEN, SPARK ARRESTER

$9.99

$

In Stock, only 2 left!

0

11

Echo 9137403006

SCREW, TAPPING 3×6

$1.49

$

In Stock, only 2 left!

0

12

Echo V203000701

BOLT 5
(Superseded to V203000700)

$1.49

$

In Stock, Qty 20+

0

13

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

15

Echo A320000650

COVER, MUFFLER

$15.99

$

In Stock, only 4 left!

0

16

Echo V203000590

BOLT M5×16
(Superseded to V203000591)

$1.49

$

In Stock, Qty 6

0
