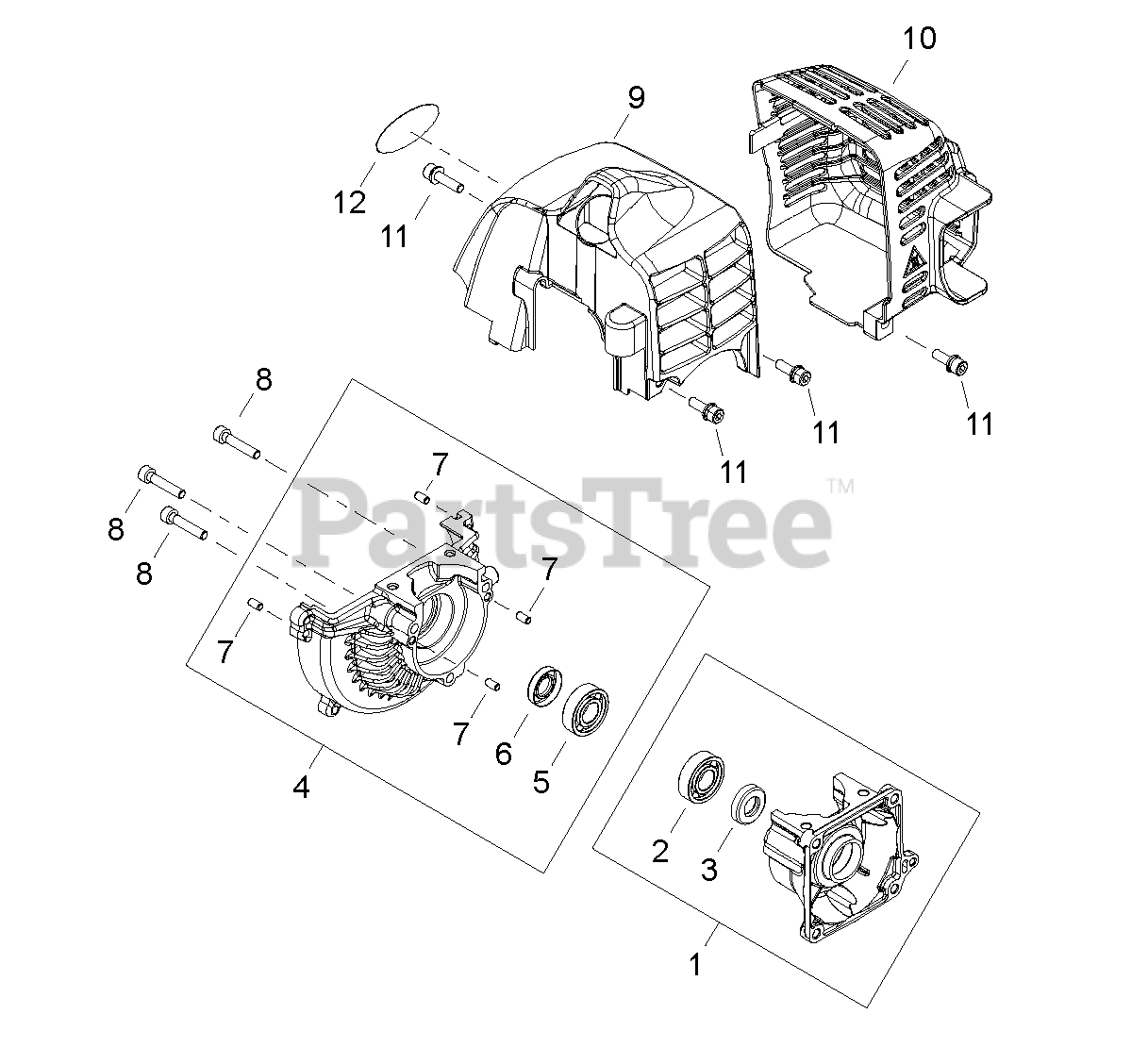

C 282 - Shindaiwa Brush Cutter (Original Version) Crankcase / Engine Cover / Muffler Cover Parts Diagram

Brush Cutter

Crankcase / Engine Cover / Muffler Cover Parts Diagram

  • Title

1

Echo 62128-21010

CRANKCASE ASSY - REAR
(Superseded to P021028130)

$53.99

$

Usually ships in 2-4 days

0

2

Echo 1290062010

BEARING, BALL - 6201C3
(Superseded to 9403536201)

$9.99

$

Usually ships in 2-4 days

0

3

Echo 12310-12002

SEAL, OIL
(Superseded to V505000090)

$7.49

$

In Stock, Qty 7

0

4

Echo 62128-21020

CRANKCASE ASSY - FRONT
(Superseded to P021028140)

$47.99

$

In Stock, Qty 5

0

5

Echo 1290062010

BEARING, BALL - 6201C3
(Superseded to 9403536201)

$9.99

$

Usually ships in 2-4 days

0

6

Echo 12310-12002

SEAL, OIL
(Superseded to V505000090)

$7.49

$

In Stock, Qty 7

0

7

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$1.49

$

In Stock, Qty 15

0

8

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 5

0

9

Echo 62128-32110

COVER, ENGINE
(Superseded to A160001550)

$25.99

$

Usually ships in 2-4 days

0

10

Echo 62128-32310

COVER, MUFFLER
(Superseded to A320000691)

$9.99

$

In Stock, only 1 left!

0

11

Echo 11060-05203

SCREW - 5X20
(Superseded to V203000760)

$1.99

$

In Stock, only 4 left!

0

12

Echo 62128-91320

LABEL - MODEL 282
(Superseded to X504002100)

$1.99

$

Usually ships in 2-4 days

0
