C 300 (UT-20775) - Homelite String Trimmer Shaft - Spool & String - Grass Deflector Parts Diagram

String Trimmer

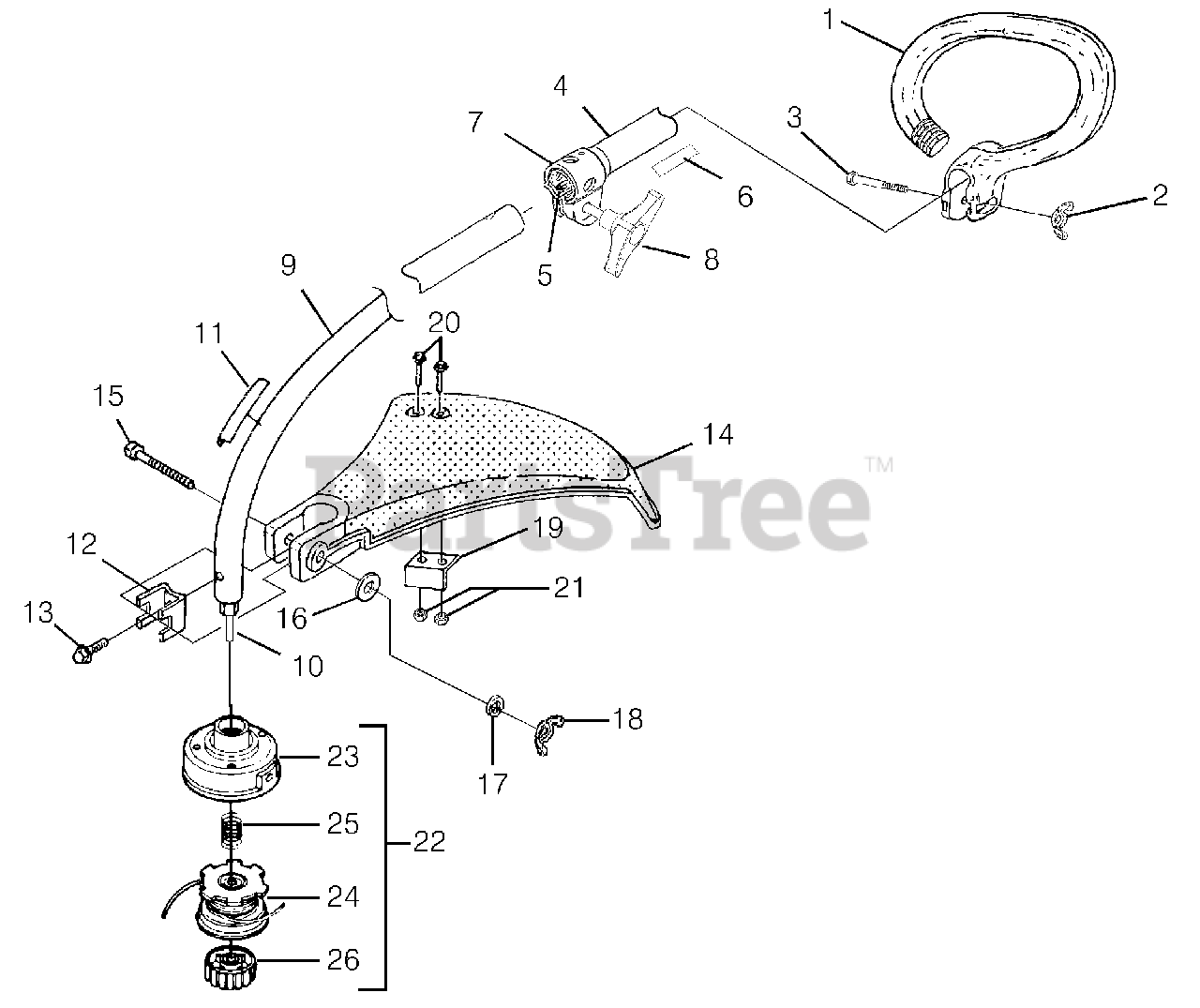

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite UP06959

HANDLE-Anti-Vibe
(Superseded to 308472001)

$

$

Not available

2

Homelite UP04262

NUT-Wing, Washer Faced (1/4-20)
(Superseded to 93992)

Note: Torque Spec 5 - 25 in/lbs (.6 - 2.8 Nm)

$

$

Not available

3

Homelite UP06523

SCREW-Cap Hex Hd. (1/4-20 x 2")
(Superseded to 80295)

$2.99

$

Usually ships in 3-7 days

0

4

Homelite UP05136

DRIVESHAFT ASSY. (Upper)
(Superseded to UP05136A)

$46.99

$

Usually ships in 3-7 days

0

5

Homelite A07667

FLEXSHAFT w/Collar & Liner
(Superseded to A07667A)

$

$

Not available

6

Homelite UP04116

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

7

Homelite UP03839

COUPLER ASSEMBLY
(Superseded to UP03839A)

$

$

Not available

8

Homelite UP05137

KNOB
(Superseded to PS02071)

$

$

Not available

9

Homelite UP03851

DRIVESHAFT HOUSING (Lower)
(Superseded to UP03851A)

$19.99

$

Usually ships in 3-7 days

0

10

Homelite UP04541

SHAFT-Flex
(Superseded to A07673)

$35.99

$

Usually ships in 3-7 days

0

11

Homelite UP04352

DECAL-Warning
(Superseded to PS02750)

$

$

Not available

12

Homelite UP04137

CLAMP
(Superseded to 07928)

$

$

Not available

13

Homelite UP04256

SCREW-Sems Hex (10-24 X 3/8")
(Superseded to PS05243)

Note: Torque Spec 15 - 25 in/lbs (1.7 - 2.8 Nm)

$

$

Not available

14

Homelite UP06710

DEFLECTOR & BLADE KIT (55 Deg.)
(Superseded to UP06710A)

$

$

Not available

15

Homelite UP06523

SCREW-Cap Hex Hd. (1/4-20 X 2")
(Superseded to 80295)

$2.99

$

Usually ships in 3-7 days

0

16

Homelite UP03415

WASHER-Flat (1/4")
(Superseded to 84006)

$

$

Not available

17

Homelite UP03409

WASHER-Lock (1/4")
(Superseded to 83009)

$4.99

$

Usually ships in 3-7 days

0

18

Homelite UP04262

NUT-Wing, Washer Faced (1/4-20)
(Superseded to 93992)

Note: Torque Spec 5 - 25 in/lbs (.6 - 2.8 Nm)

$

$

Not available

19

Homelite UP04119

BLADE-Cut-Off

$

$

Not available

20

Homelite UP04159

SCREW-Mech. Hex Hd. (10-24 X 7/8")
(Superseded to 82531)

$

$

Not available

21

Homelite UP03885

NUT-Hex (10-24)
(Superseded to 81208)

Note: Torque Spec 30 - 40 in/lbs (3.4 - 4.5 Nm)

$

$

Not available

22

Homelite DA03001A

STRINGHEAD-Complete (.080")
(Superseded to UP04408A)

$

$

Not available

23

Homelite UP06567

HOUSING & EYELET (Dual Line)
(Superseded to A98231A)

$

$

Not available

24

Homelite UP00145

SPOOL & STRING (.080")
(Superseded to 308044002)

$

$

Not available

25

Homelite UP06526

SPRING-Compression
(Superseded to 06713)

$1.49

$

In Stock, only 2 left!

0

26

Homelite DA98866A

RETAINER-Spool (R.H. Thread, Black)
(Superseded to UP04273A)

$

$

Not available
