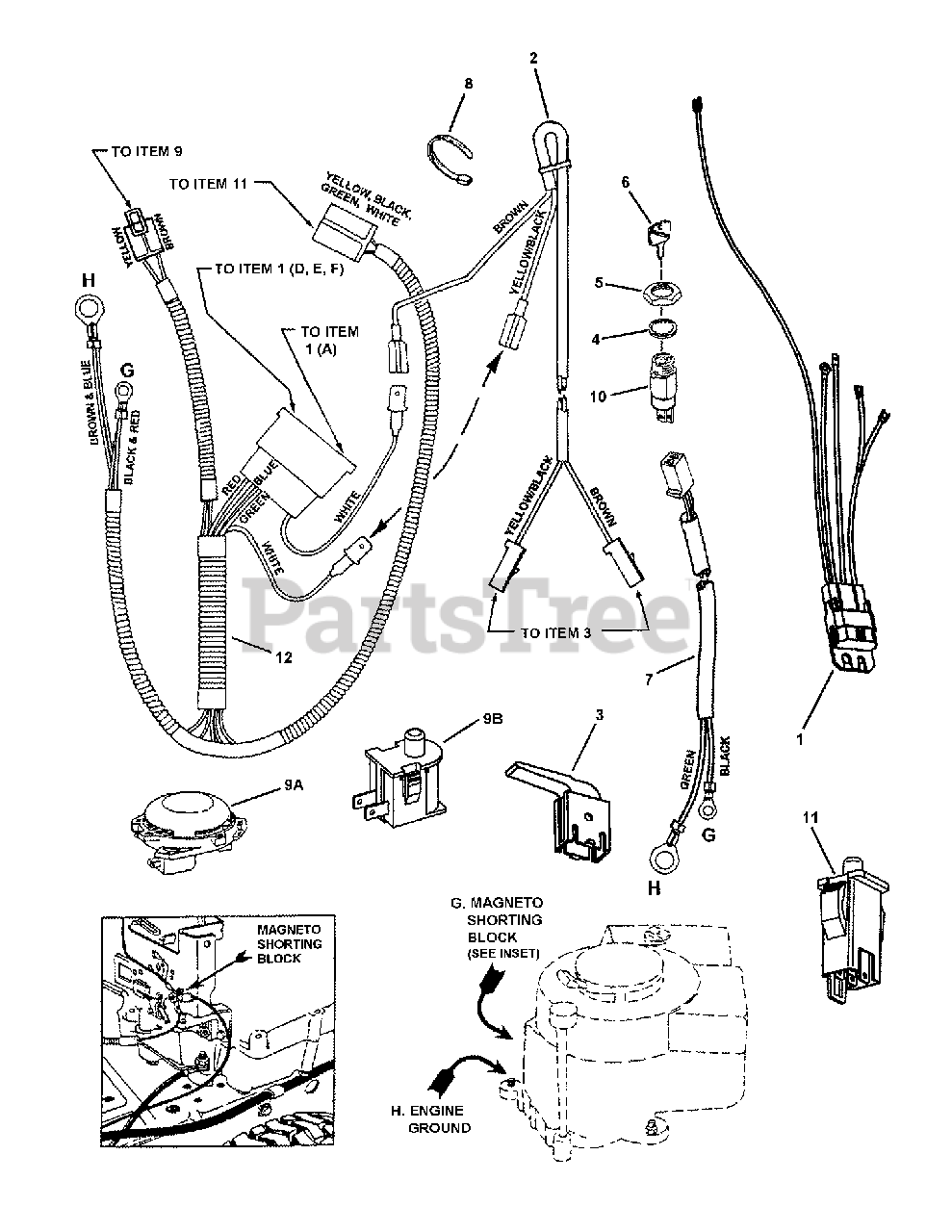

C 3011523BV (7800364) - Snapper 30" Rear-Engine Riding Mower, 11.5hp, CARB ELECTRICAL SYSTEMS (For 11.5HP Briggs Recoil) Parts Diagram

30" Rear-Engine Riding Mower, 11.5hp, CARB

ELECTRICAL SYSTEMS (For 11.5HP Briggs Recoil) Parts Diagram

  • Title

1

Snapper 7028606

INTERLOCK MODULE, Briggs
(Superseded to 7028606YP)

Note: ref. 7063064 (KIT, Briggs RER Module)

$53.99

$

In Stock, only 2 left!

0

2

Snapper 7028386

HARNESS (Deck Interlock Wiring)
(Superseded to 7028386YP)

$14.99

$

In Stock, only 2 left!

0

3

Snapper 7018524

SWITCH, Deck Interlock (NO)
(Superseded to 7018524YP)

$19.99

$

Usually ships in 2-12 days

0

4

Snapper 7091546

WASHER, 5/8" Internal Tooth Lock
(Superseded to 1960547SM)

Note: or 7090880

$4.49

$

In Stock, Qty 6

0

5

Snapper 7015438

NUT, 5/8-32 Hex
(Superseded to 7015438YP)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7011138

IGNITION KEY, Pair
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 9

0

7

Snapper 7073714

HARNESS, Ground (Recoil Start)
(Superseded to 7073714YP)

$17.99

$

Usually ships in 2-12 days

0

8

Snapper 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

9A

Snapper 7029211

SWITCH, Seat, Quick Mount (NC)
(Superseded to 1714771SM)

Note: used on 11 & 13 HP Engines

$20.99

$

In Stock, Qty 5

0

9B

Snapper 7023354

SWITCH, Seat (NC)
(Superseded to 7023354YP)

Note: used on 11-1/2 HP Engines

$12.99

$

Usually ships in 2-12 days

0

10

Snapper 7017817

SWITCH, Ignition (2-Pole) (Recoil Start)
(Superseded to 7017817YP)

$31.99

$

In Stock, only 2 left!

0

11

Snapper 7022886

SWITCH, Operator Presence Control (OPC) Traction (NC/NO)
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

12

Snapper 7028607

HARNESS, Operator Presence Control (OPC) Wire
(Superseded to 7028607YP)

$51.99

$

Usually ships in 2-12 days

0
