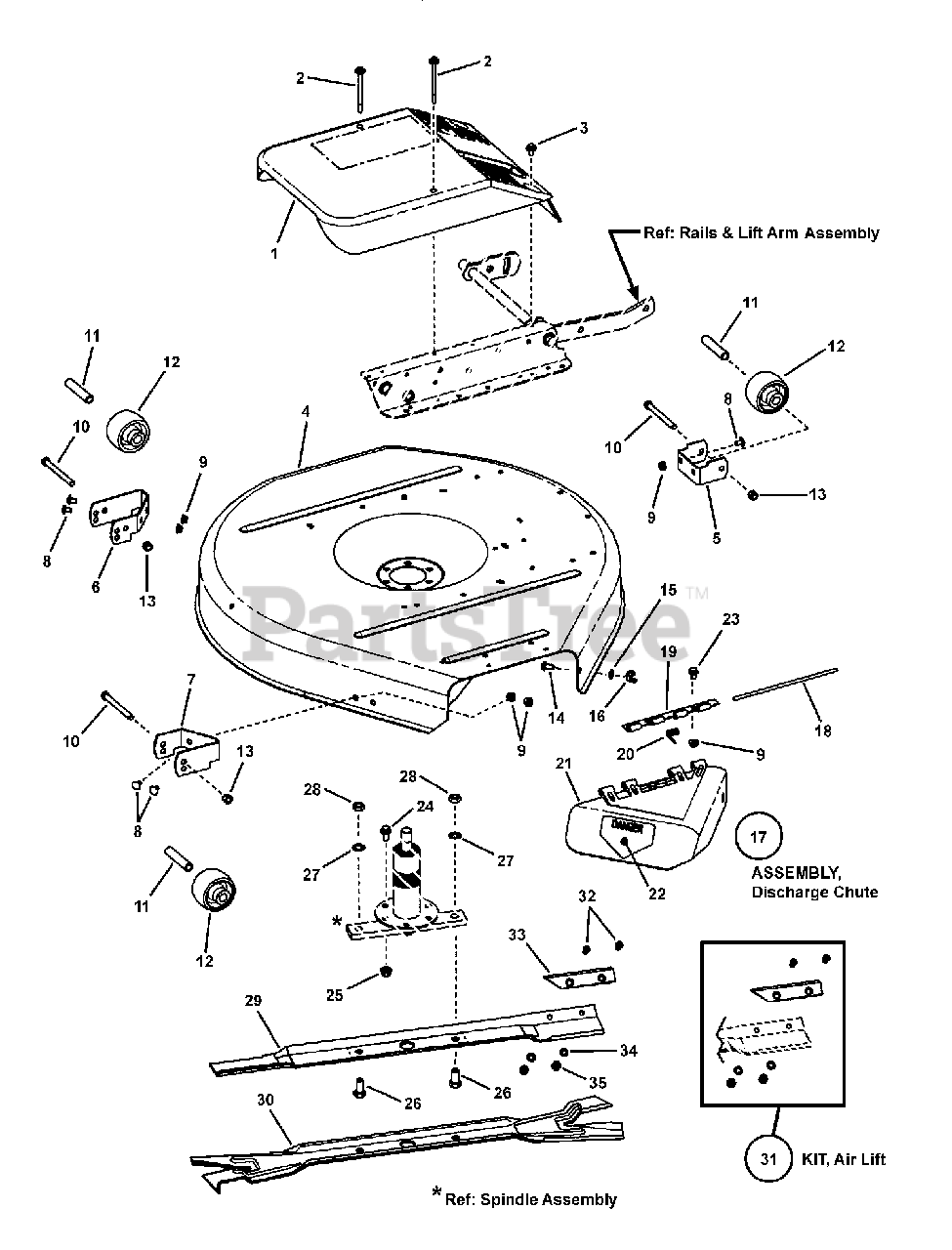

C 3012523BVE (7800366) - Snapper 30" Rear-Engine Riding Mower, 12.5hp, CARB CUTTING DECK, DEFLECTOR (30") Parts Diagram

30" Rear-Engine Riding Mower, 12.5hp, CARB

CUTTING DECK, DEFLECTOR (30") Parts Diagram

  • Title

1

Snapper 7073434

COVER, Spindle
(Superseded to 7073434YP)

$132.99

$

Usually ships in 2-12 days

0

2

Snapper 7091015

SCREW, 1/4-20 x 3-1/2" Hex Head w/Free Spinning Washer
(Superseded to 7091015YP)

$

$

Not available

3

Snapper 7091016

SCREW, 1/4-20 x 5/8" Hex Head w/Free Spinning Washer
(Superseded to 7091016YP)

$4.49

$

In Stock, Qty 14

0

4

Snapper 7061971

DECK, 30" Replacement (Painted deck with decals)
(Superseded to 7061971YP)

$956.99

$

Usually ships in 2-12 days

0

5

Snapper 7034024

* BRACKET, Front Anti-Scalp

$

$

Not available

6

Snapper 7034026

* BRACKET, Anti-Scalp, 30" L.H. Rear
(Superseded to 7034026YP)

$29.99

$

Usually ships in 2-12 days

0

7

Snapper 7034025

* BRACKET, Anti-Scalp, 30" R.H. Rear
(Superseded to 7034025YP)

$29.99

$

Usually ships in 2-12 days

0

8

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage, GR 5
(Superseded to 703798)

$4.49

$

In Stock, only 4 left!

0

9

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: or 7091070

$5.99

$

In Stock, Qty 20+

0

10

Snapper 7090859

* SCREW, 3/8-24 x 3-3/4" Hex Head Cap, GR 5
(Superseded to 703876)

Note: or 7091532

$6.99

$

In Stock, only 2 left!

0

11

Snapper 7015272

* SPACER
(Superseded to 7015272YP)

$7.49

$

In Stock, only 4 left!

0

12

Snapper 7019190

* WHEEL, Gage
(Superseded to 7019190YP)

$11.99

$

In Stock, Qty 15

0

13

Snapper 7090289

* NUT, 3/8-24 Hex Center Lock, GR 5 or B
(Superseded to 703458)

Note: or 7091518 (3/8-24 Hex Nyloc Nut)

$4.99

$

In Stock, Qty 12

0

14

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7091296

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0

16

Snapper 7091537

NUT, 5/16-18 Wing
(Superseded to 7091537YP)

Note: or 7090492

$4.49

$

In Stock, only 2 left!

0

17

Snapper 7500483

ASSEMBLY, 30" Deflector (Incl. items 18, 19 & 20)

Note: or 7052553 (includes 7013010 decal)

$

$

Currently unavailable

18

Snapper 7026846

PIN, Hinge (Straight, 8-7/8" long)
(Superseded to 7026846YP)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 7024569

HINGE, Deflector (8" long)
(Superseded to 7024569YP)

$34.99

$

Usually ships in 2-12 days

0

20

Snapper 7016428

SPRING, Hinge
(Superseded to 7016428YP)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7025047

DEFLECTOR, 30" Deck
(Superseded to 7025047YP)

$48.99

$

In Stock, only 4 left!

0

22

Snapper 7013010

DECAL, Danger, (Cut Finger)
(Superseded to 7013010SM)

$9.99

$

In Stock, Qty 11

0

23

Snapper 7090606

BOLT, 5/16-18 x 5/8" Hex Flange Lock, GR 5
(Superseded to 703823)

Note: or 7091510

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: or 7090612

$4.49

$

In Stock, Qty 9

0

25

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: or 7090613

$4.99

$

In Stock, Qty 15

0

26

Snapper 7090392

SCREW, 1/2-20 x 1" Hex Head Cap, GR 5
(Superseded to 703880)

$4.49

$

In Stock, Qty 8

0

27

Snapper 7090509

WASHER, 1/2" Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 5

0

28

Snapper 7090559

NUT, 1/2-20 Hex Jam
(Superseded to 703903)

$3.49

$

In Stock, Qty 15

0

29

Snapper 7018069

BLADE, 30"
(Superseded to 7018069BZYP)

$33.99

$

In Stock, only 2 left!

0

30

Snapper 7026565

BLADE, Ninja, 30"
(Superseded to 7026565BZYP)

$76.99

$

In Stock, only 2 left!

0

31

Snapper 7060735

KIT, Air Lift (Includes items 4 thru 7)
(Superseded to 7060735YP)

$65.99

$

In Stock, only 1 left!

0

32

Snapper 7090228

SCREW, 5/16-24 x 11/16" Oval Head Machine
(Superseded to 7090228SM)

$5.99

$

In Stock, Qty 20+

0

33

Snapper 7031724

AIR-LIFT (30" Models)
(Superseded to 7031724YP)

$29.99

$

Usually ships in 2-12 days

0

34

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

35

Snapper 7090223

NUT, 5/16-24 Hex
(Superseded to 703331)

$4.49

$

In Stock, Qty 17

0
