C 302 - Shindaiwa Brush Cutter (SN: U42229001001 - U42229999999) FUEL SYSTEM Parts Diagram

Brush Cutter

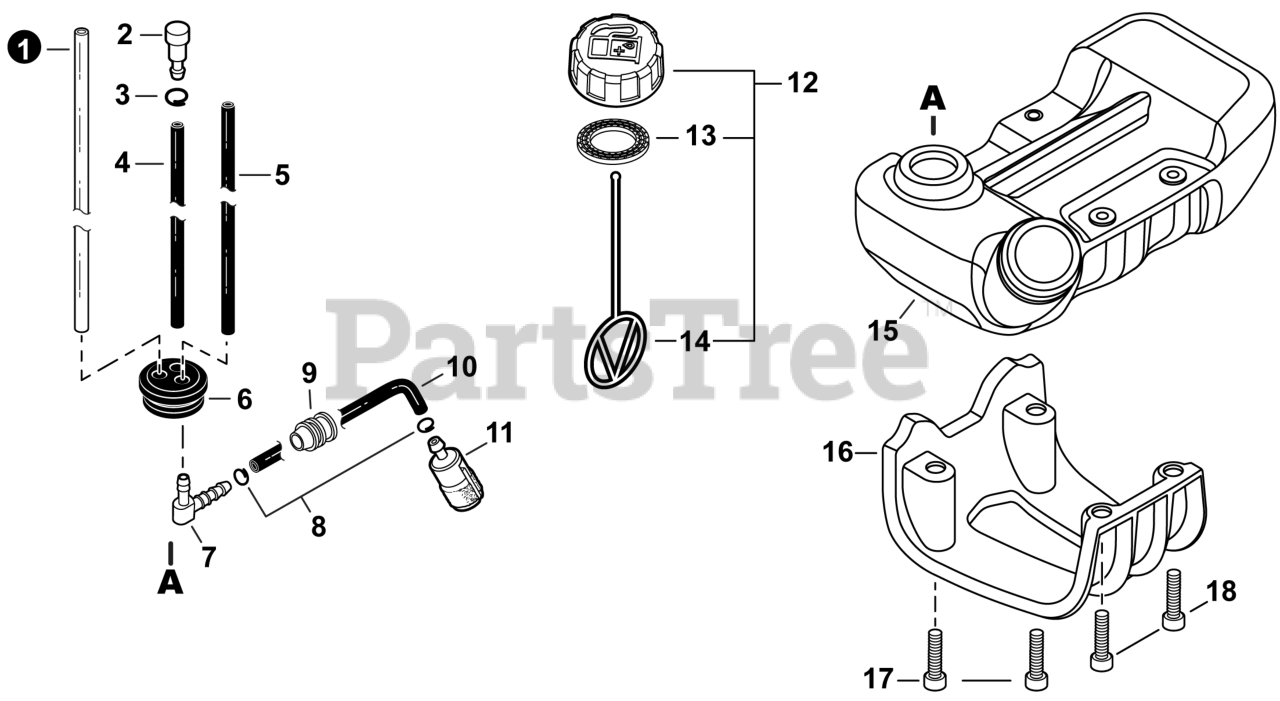

FUEL SYSTEM Parts Diagram

  • Title

1

Echo 13201049730

PIPE, FUEL 3x6x85 CLEAR

$2.49

$

In Stock, Qty 11

0

2

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

3

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

4

Echo V471003321

PIPE, FUEL 3x6x95 BLACK

$2.99

$

Usually ships in 2-4 days

0

5

Echo V471005610

PIPE, FUEL 3x5.5x70 BLACK

$3.49

$

In Stock, only 3 left!

0

6

Echo 13211555931

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

7

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

8

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

9

Echo A413000190

BOOT

$1.99

$

Usually ships in 2-4 days

0

10

Echo V470002361

PIPE, FUEL 3x5x140x35 BLACK

$5.49

$

Usually ships in 2-4 days

0

11

Echo A369000470

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

12

Echo P021053040

CAP ASSY, FUEL
(Superseded to P021041930)

Note: Includes Items 13-14

$5.99

$

In Stock, Qty 20+

0

13

Echo V107000210

GASKET, FUEL CAP
(Superseded to V107000150)

$4.49

$

In Stock, Qty 20+

0

14

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

15

Echo A350002730

TANK, FUEL

$50.99

$

In Stock, only 1 left!

0

16

Echo A175000400

GUARD, FUEL TANK

$3.99

$

In Stock, only 1 left!

0

17

Echo V805000230

BOLT, TORX 5x25

$1.49

$

In Stock, Qty 10

0

18

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0
