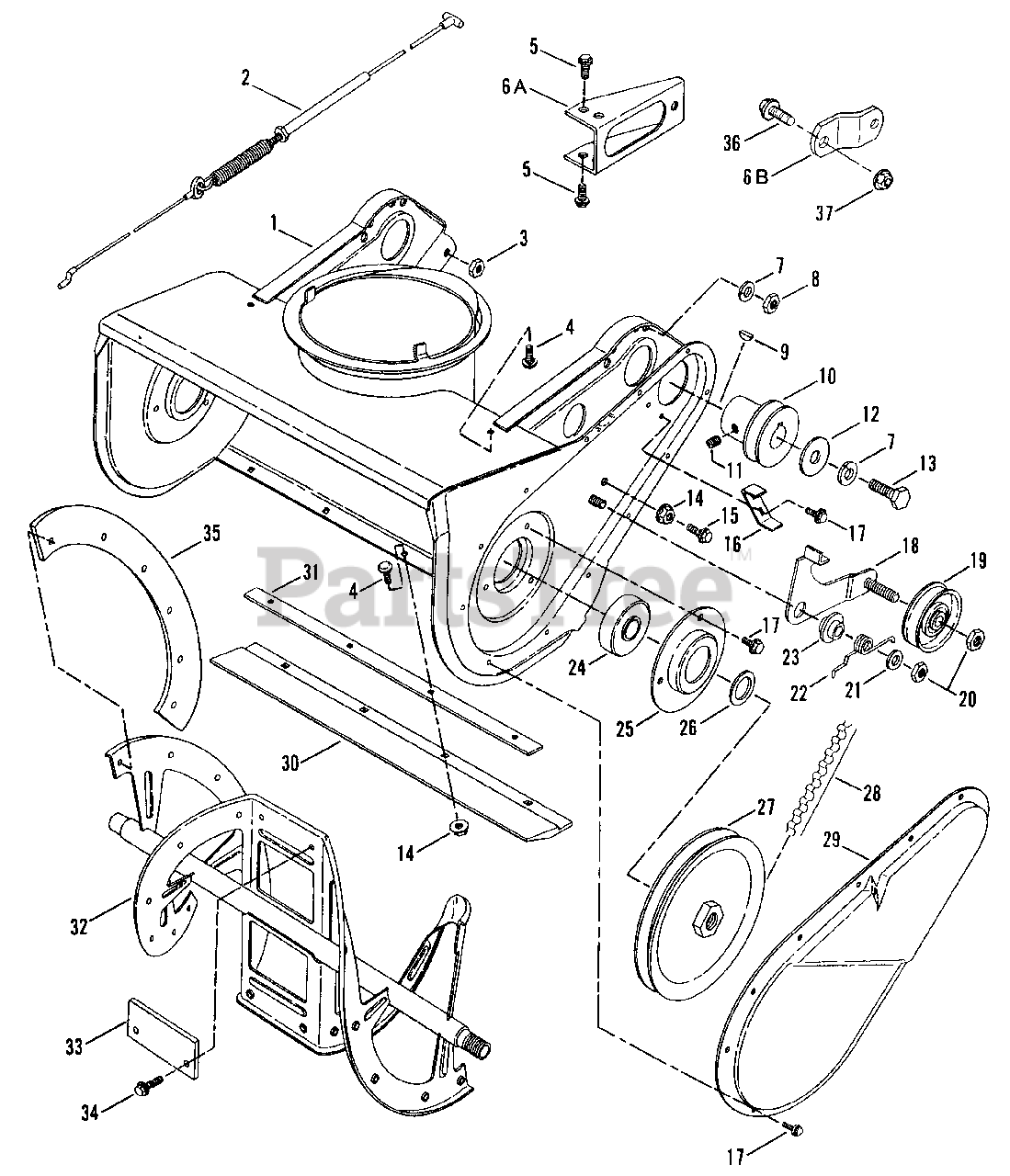

C 3203 (82467) - Snapper 20" Snow Thrower Collector Housing, Belts, Pulleys, Auger Parts Diagram

20" Snow Thrower

Collector Housing, Belts, Pulleys, Auger Parts Diagram

  • Title

1

Snapper 7041605

ASSEMBLY, Blower Housing

$

$

Not available

2

Snapper 7018796

CABLE, Clutch
(Superseded to 7018796YP)

$33.99

$

In Stock, only 3 left!

0

3

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

4

Snapper 7091283

BOLT, #10-24 x 5/8" Flat Head Carriage
(Superseded to 7091283YP)

$4.49

$

In Stock, Qty 11

0

5

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

Note: Was 90302

$4.99

$

In Stock, Qty 20+

0

6A

Snapper 7028063

BRACE, Engine

Note: (Early Production Models)

$

$

Not available

6B

Snapper 7034130

BRACE, Engine
(Superseded to 7034130YP)

Note: (Later Production Models)

$8.49

$

Usually ships in 2-12 days

0

7

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 6

0

8

Snapper 7091511

NUT, 5/16-18 Hex, Grade 8 or 5
(Superseded to 7091511SM)

Note: Was 91069

$3.49

$

In Stock, only 4 left!

0

9

Snapper 7010008

KEY, (#6) 5/32 x 5/8" Woodruff
(Superseded to 7010008YP)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7028363

PULLEY, Engine
(Superseded to 7028363YP)

$

$

Not available

11

Snapper 7090471

SETSCREW, 1/4-20 x 5/16"
(Superseded to 7090471YP)

Note: (Model Year '93 & Earlier)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7014098

WASHER, Flat (.343 I.D. x 1" O.D.)
(Superseded to 7014098SM)

$16.99

$

In Stock, only 1 left!

0

13

Snapper 7090233

SCREW, 5/16-24 x 3/4" Hex Head Cap
(Superseded to 703336)

$4.99

$

In Stock, Qty 14

0

Snapper 7061382

KIT, Engine Pulley (NLA)

Note: (Included item 10, 12,13, & 1 item 7)

$

$

Currently unavailable

14

Snapper 7091079

NUT, #10-24 Hex Flange Lock
(Superseded to 703917)

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Self-Tap, Grade 5
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

16

Snapper 7032345

GUIDE, Belt
(Superseded to 7032345YP)

$7.49

$

Usually ships in 2-12 days

0

17

Snapper 7090981

SCREW, #10-32 x 1/4" Slotted Hex Washer Head, Self-Tapping
(Superseded to 704061)

$3.99

$

In Stock, only 4 left!

0

18

Snapper 7051506

ASSEMBLY, Idler Arm
(Superseded to 7051506YP)

$61.99

$

Usually ships in 2-12 days

0

19

Snapper 7014722

PULLEY, Idler Arm
(Superseded to 7014722YP)

$25.99

$

Usually ships in 2-12 days

0

20

Snapper 7091575

NUT, 5/16-18 hex Center-Lock
(Superseded to 703164)

Note: Was 91067

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7091076

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

22

Snapper 7014920

SPRING, Idler Brake
(Superseded to 7014920YP)

$26.99

$

Usually ships in 2-12 days

0

23

Snapper 7014919

SPACER, Bearing
(Superseded to 7014919YP)

$9.49

$

Usually ships in 2-12 days

0

24

Snapper 7014608

BEARING, Auger
(Superseded to 7014608SM)

$36.99

$

Usually ships in 2-12 days

0

25

Snapper 7032346

RETAINER, Bearing
(Superseded to 7032346YP)

$43.99

$

Usually ships in 2-12 days

0

26

Snapper 7010935

WASHER, 3/4" Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7018635

PULLEY
(Superseded to 7018635SM)

$60.99

$

Usually ships in 2-12 days

0

28

Snapper 7029604

BELT, Auger 32.89
(Superseded to 7029604YP)

Note: Was 14637

$26.99

$

In Stock, only 4 left!

0

29

Snapper 7019753

COVER, Belt

$

$

Not available

30

Snapper 7028427

SCRAPER, Blade
(Superseded to 7028427YP)

$34.99

$

In Stock, only 2 left!

0

31

Snapper 7028312

BLADE, Wear Indicator
(Superseded to 7028312BMYP)

$29.99

$

In Stock, only 2 left!

0

Snapper 7052309

ASSEMBLY, Auger (Not shown)
(Superseded to 7052309YP)

Note: (Includes items 32 thru 35)

$426.99

$

In Stock, only 3 left!

0

32

Snapper 7028067

AUGER
(Superseded to 7052309YP)

$426.99

$

In Stock, only 3 left!

0

33

Snapper 7014612

SHOE, Flite Center 3.5" x 1.56"
(Superseded to 7014612SM)

$5.49

$

In Stock, only 1 left!

0

34

Snapper 7091563

SCREW, #10-24 x 5/6" Self-Tapping
(Superseded to 7091075SM)

Note: Was 14654

$4.49

$

In Stock, Qty 5

0

35

Snapper 7029565

SHOE, Flite
(Superseded to 7029565SM)

$30.99

$

Usually ships in 2-12 days

0

Snapper 7060631

KIT, Flite Shoe 19" (Not shown)
(Superseded to 7060631YP)

Note: (Includes 2 item 33 & 4 item 35)Order items 33 & 35 by Kit Number.

$150.99

$

In Stock, Qty 5

0

36

Snapper 7090584

BOLT, 1/4-20 x 1/2" Hex Flange Lock, Grade 5
(Superseded to 7090584YP)

$3.99

$

Usually ships in 2-12 days

0

37

Snapper 7091545

NUT, 1/4-20 Hex Flange Top Lock
(Superseded to 703916)

Note: Was 90477

$4.99

$

In Stock, only 1 left!

0
