C 3410 - Shindaiwa Brush Cutter Cylinder, Muffler Parts Diagram

Brush Cutter

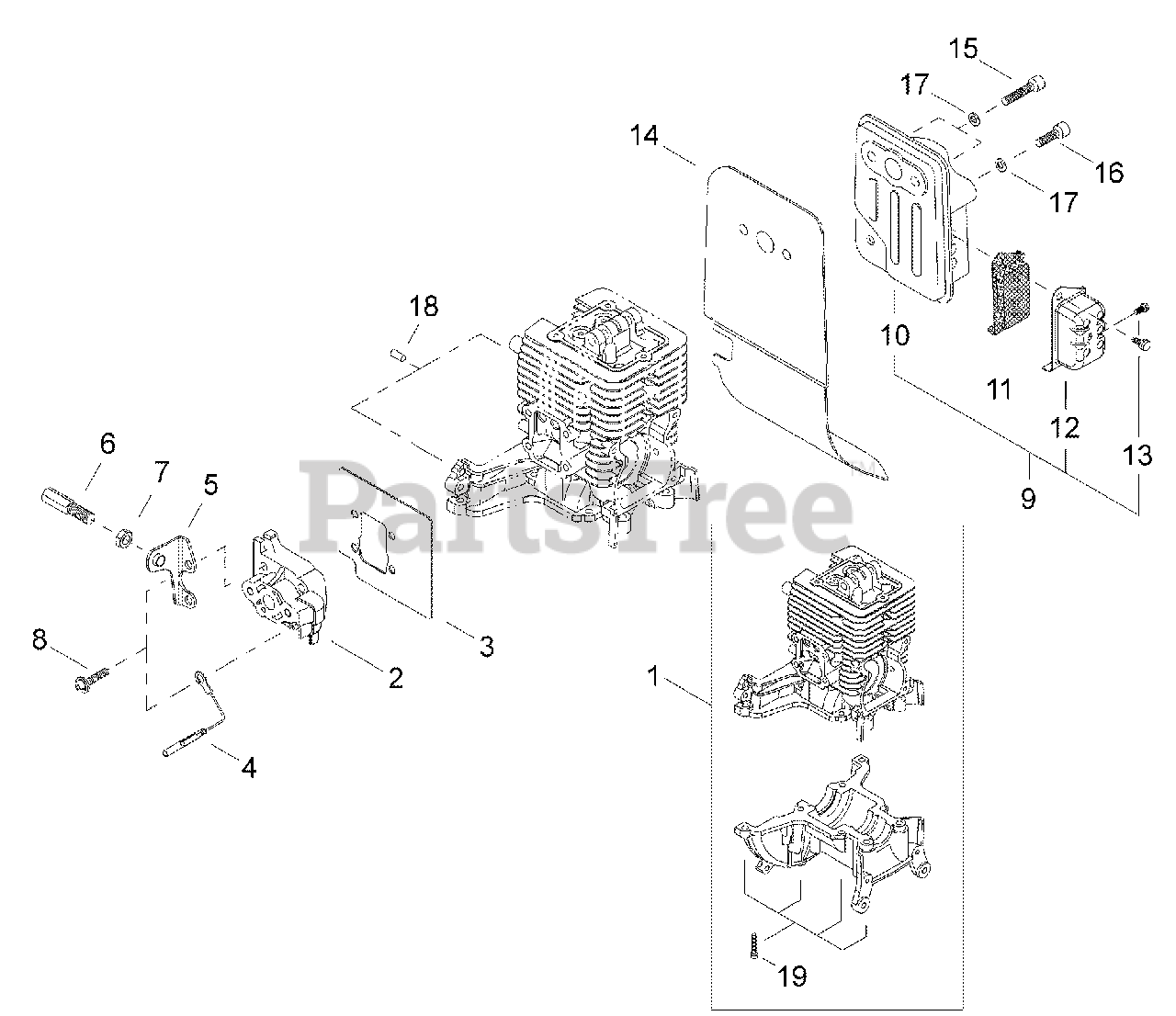

Cylinder, Muffler Parts Diagram

  • Title

1

Echo 60907-98330

CYLINDER BLOCK SET
(Superseded to P021027540)

$153.99

$

In Stock, only 1 left!

0

19

Echo 01020-05160

SCREW - 5X16
(Superseded to 90010505016)

$1.49

$

In Stock, only 2 left!

0

2

Echo 62907-12311

VALVE, REED
(Superseded to A024000020)

$56.99

$

Usually ships in 2-4 days

0

3

Echo 62907-12220

DEFLECTOR, HEAT
(Superseded to V103000980)

$3.49

$

Usually ships in 2-4 days

0

4

Echo 14350-01101

LEAD - GROUND
(Superseded to V485001260)

$4.49

$

Usually ships in 2-4 days

0

5

Echo 62901-83310

BRACKET, THROTTLE CABLE

$3.49

$

Usually ships in 2-4 days

0

6

Echo 62902-83310

NUT, CABLE ADJUST
(Superseded to C486000030)

$19.99

$

Usually ships in 2-4 days

0

7

Echo 01501-06048

LOCKNUT - 6
(Superseded to 9201806000)

$1.49

$

Usually ships in 2-4 days

0

8

Echo 11206-05255

SCREW - 5X25
(Superseded to 9158205025)

$1.49

$

Usually ships in 2-4 days

0

9

Echo 62907-15011

MUFFLER ASSY
(Superseded to A030000342)

$113.99

$

Usually ships in 2-4 days

0

10

Echo 62907-15111

MUFFLER
(Superseded to A300001251)

$103.99

$

Usually ships in 2-4 days

0

11

Echo 62902-15131

SCREEN, SPARK ARRESTOR
(Superseded to A310000390)

$3.99

$

Usually ships in 2-4 days

0

12

Echo 62907-15161

GUIDE, EXHAUST
(Superseded to A313001391)

$8.49

$

Usually ships in 2-4 days

0

13

Echo 11204-04060

SCREW - 4X6
(Superseded to 9157204006)

$1.49

$

Usually ships in 2-4 days

0

14

Echo 62901-15210

SHIELD, EXHAUST
(Superseded to V104001431)

$10.99

$

Usually ships in 2-4 days

0

15

Echo 62901-15310

SCREW - 5X25
(Superseded to V203001000)

$1.99

$

Usually ships in 2-4 days

0

16

Echo 01020-05160

SCREW - 5X16
(Superseded to 90010505016)

$1.49

$

In Stock, only 2 left!

0

17

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

18

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$1.49

$

In Stock, Qty 15

0
