C 3410 - Shindaiwa Brush Cutter Fan Cover, Reed Valve Parts Diagram

Brush Cutter

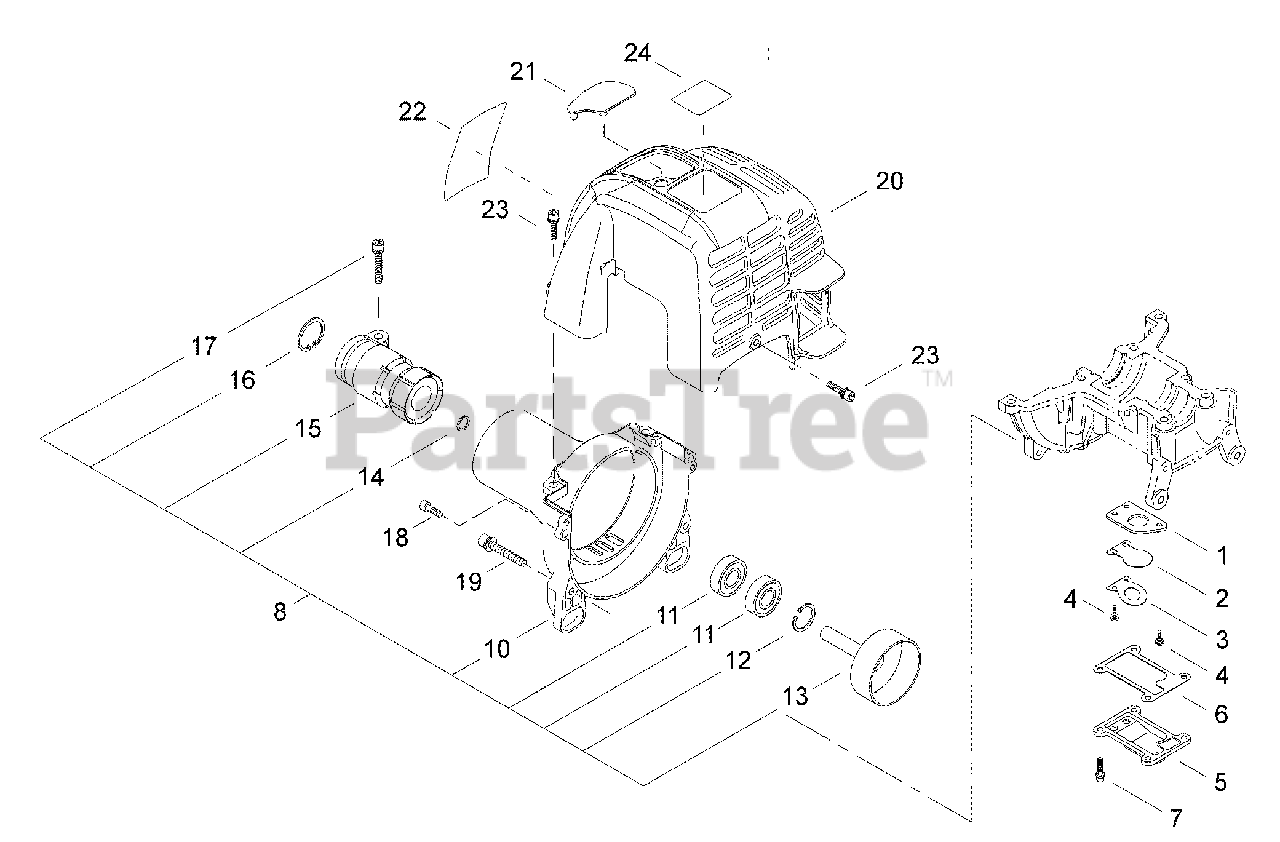

Fan Cover, Reed Valve Parts Diagram

  • Title

1

Echo 62901-21320

PLATE, REED BACKING
(Superseded to A200000750)

$14.99

$

Usually ships in 2-4 days

0

2

Echo 72320-83121

VALVE, REED
(Superseded to A211000030)

$6.49

$

Usually ships in 2-4 days

0

3

Echo 72320-83132

STOP, REED VALVE
(Superseded to A212000040)

$3.99

$

Usually ships in 2-4 days

0

4

Echo 01211-03100

SCREW - 3X10
(Superseded to 9134103010)

$1.49

$

Usually ships in 2-4 days

0

5

Echo 62901-21120

COVER, REED VALVE
(Superseded to A123000000)

$6.99

$

Usually ships in 2-4 days

0

6

Echo 62901-21130

GASKET, REED VALVE
(Superseded to V109000100)

$1.99

$

In Stock, Qty 5

0

7

Echo 11022-04140

SCREW - 4X14
(Superseded to V202000350)

$1.49

$

In Stock, Qty 10

0

8

Echo 60907-98351

FAN CASE ASSY
(Superseded to P021027550)

$

$

Not available

10

Echo 62907-31110

CASE, FAN
(Superseded to A172002030)

$80.99

$

Usually ships in 2-4 days

0

11

Echo 02036-06001

BEARING, BALL - 6001DDUC3
(Superseded to 9400236001)

$8.99

$

In Stock, only 2 left!

0

12

Echo 02432-28120

RING, RETAINING - 28
(Superseded to 9242428000)

$1.99

$

In Stock, Qty 20+

0

13

Echo 62907-31211

DRUM, CLUTCH
(Superseded to A556000840)

$36.99

$

Usually ships in 2-4 days

0

14

Echo 20000-31140

RING, RETAINING
(Superseded to V583000170)

$1.49

$

In Stock, Qty 20+

0

15

Echo 62907-33110

CLAMP, MAIN PIPE
(Superseded to A575000370)

$20.99

$

Usually ships in 2-4 days

0

16

Echo 02432-42170

RING, RETAINING - 42
(Superseded to 9242442000)

$1.99

$

Usually ships in 2-4 days

0

17

Echo 11020-05220

SCREW - 5X22
(Superseded to V203000620)

$0.99

$

Usually ships in 2-4 days

0

18

Echo 01020-05160

SCREW - 5X16
(Superseded to 90010505016)

$1.49

$

In Stock, only 2 left!

0

19

Echo 11022-05400

SCREW - 5X40
(Superseded to 11024-05400)

$1.99

$

In Stock, Qty 6

0

20

Echo 62907-32110

COVER, ENGINE
(Superseded to A160001622)

$35.99

$

Usually ships in 2-4 days

0

21

Echo 62901-32312

COVER, SPARK PLUG
(Superseded to A429000140)

$2.99

$

In Stock, only 2 left!

0

22

Echo 19420-00106

LABEL - C4
(Superseded to X504002530)

$2.49

$

Usually ships in 2-4 days

0

23

Echo 11022-04140

SCREW - 4X14
(Superseded to V202000350)

$1.49

$

In Stock, Qty 10

0

24

Echo 81023

LABEL - MODEL C3410
(Superseded to Discontinued)

$

$

Not available
