C 3410 - Shindaiwa Brush Cutter Throttle Assy Parts Diagram

Brush Cutter

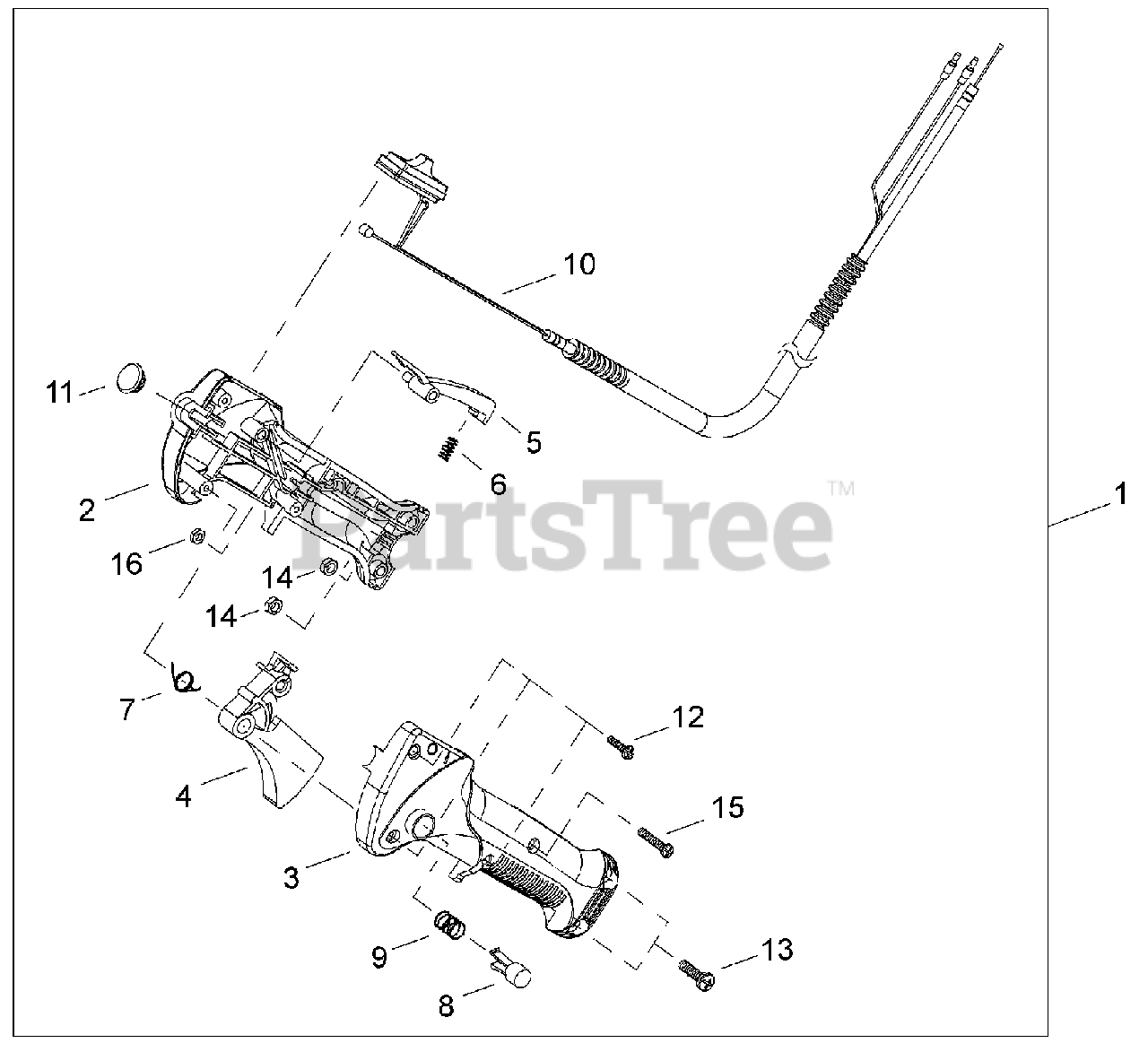

Throttle Assy Parts Diagram

  • Title

1

Echo 64022-64061

THROTTLE CONTROL ASSY
(Superseded to C044000840)

$86.99

$

Usually ships in 2-4 days

0

2

Echo 72550-14512

CONTROL HANDLE - RIGHT
(Superseded to C412000430)

$23.99

$

In Stock, only 2 left!

0

3

Echo 72550-14522

CONTROL HANDLE - LEFT
(Superseded to C412000440)

$24.99

$

Usually ships in 2-4 days

0

4

Echo 70871-65130

TRIGGER, THROTTLE
(Superseded to C450000580)

$4.99

$

In Stock, only 1 left!

0

5

Echo 70871-65140

LOCKOUT, THROTTLE
(Superseded to C460000240)

$2.49

$

In Stock, only 1 left!

0

6

Echo 70871-65150

SPRING, COMPRESSION
(Superseded to V450001020)

$1.49

$

In Stock, Qty 8

0

7

Echo 70871-65160

SPRING, TORSION
(Superseded to V452000690)

$1.49

$

In Stock, Qty 9

0

8

Echo 70871-65170

BUTTON, THROTTLE LOCK
(Superseded to C461000080)

$2.49

$

Usually ships in 2-4 days

0

9

Echo 70871-65180

SPRING, COMPRESSION
(Superseded to V450001010)

$1.49

$

In Stock, only 3 left!

0

10

Echo 64022-64310

CABLE ASSY, CONTROL
(Superseded to V043000500)

$63.99

$

Usually ships in 2-4 days

0

11

Echo 22150-33630

PLUG, RUBBER
(Superseded to V162000410)

$2.99

$

Usually ships in 2-4 days

0

12

Echo 70871-65311

SCREW, TAPPING 4×16
(Superseded to V252000360)

$1.49

$

Usually ships in 2-4 days

0

13

Echo 70871-65320

SCREW M5×20
(Superseded to V253000580)

$1.49

$

In Stock, Qty 10

0

14

Echo 01501-05030

NUT M5
(Superseded to 9201705000)

$1.49

$

In Stock, Qty 10

0

15

Echo 70871-65330

SCREW M4×23
(Superseded to 70871-65331)

$1.99

$

In Stock, Qty 6

0

16

Echo 70871-65340

NUT M4
(Superseded to V262000100)

$1.49

$

In Stock, Qty 7

0
