C 342 B (954040503) - Husqvarna Grass Catcher (2001-11) Grass Catcher Parts Diagram

Grass Catcher

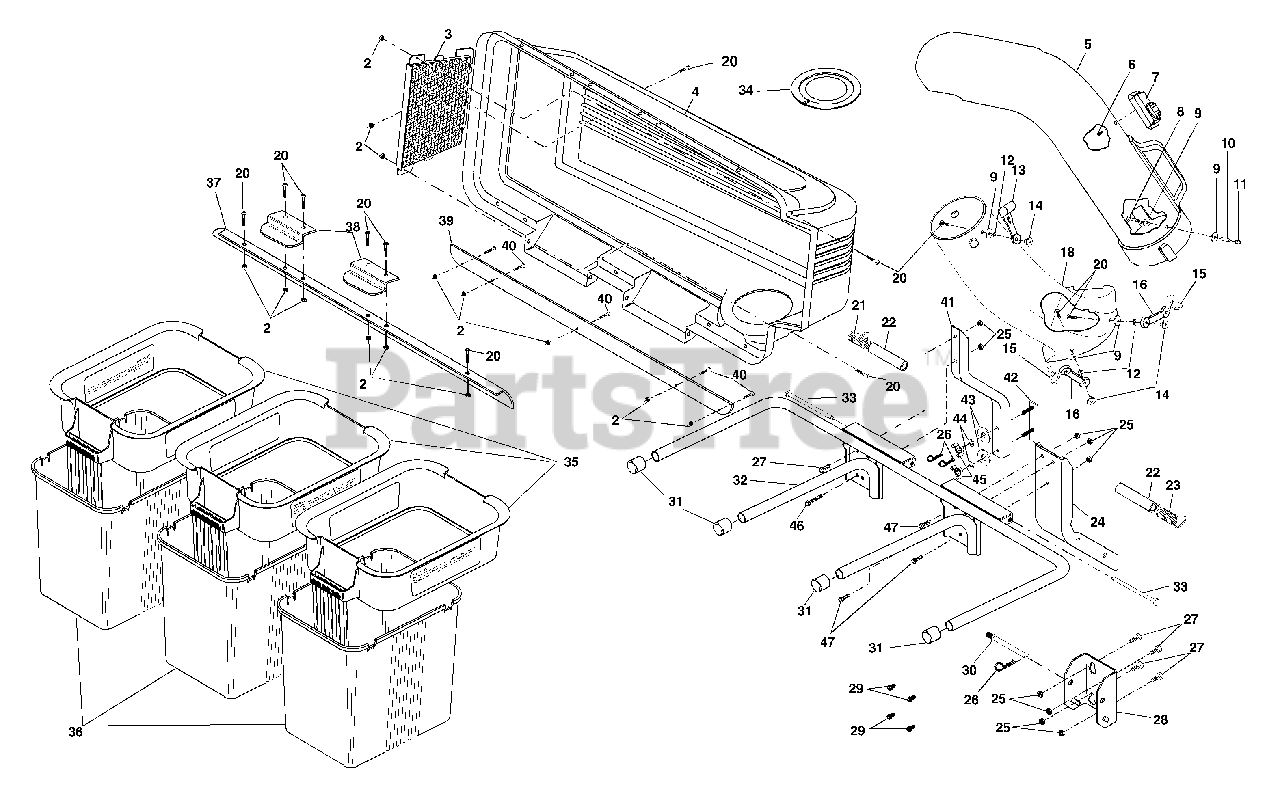

Grass Catcher Parts Diagram

  • Title

2

Husqvarna 532069180

LOCKNUT

$2.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532127533

COVER SCREEN

$20.99

$

In Stock, only 1 left!

0

4

Husqvarna 532134678

COVER BAGGER
(Superseded to 532400436)

$

$

Not available

5

Husqvarna 532126840

CHUTE.UPPER.42"

$89.99

$

Usually ships in 3-10 days

0

6

Husqvarna 818021008

SCREW

$5.99

$

In Stock, Qty 6

0

7

Husqvarna 532140572

INDICATOR DUMP BAG

$7.99

$

In Stock, only 2 left!

0

8

Husqvarna 532087175

SCREW
(Superseded to 874981024)

$5.99

$

In Stock, Qty 10

0

9

Husqvarna 819061216

WASHER

$3.99

$

In Stock, Qty 15

0

10

Husqvarna 532007206

SPACER LT

$5.99

$

In Stock, only 1 left!

0

11

Husqvarna 532060867

NUT
(Superseded to 539108086)

$3.99

$

In Stock, Qty 10

0

12

Husqvarna 810071000

LOCKWASHER #10

$

$

Not available

13

Husqvarna 532109808

LATCH.HOOD.

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 13

0

15

Husqvarna 532130760

HOOK LATCH
(Superseded to 597000601)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 532130759

RUBBER LATCH
(Superseded to 597000601)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532162803

LOWER CHUTE FOR 42" BAGGER
(Superseded to 592866501)

$83.99

$

In Stock, only 3 left!

0

20

Husqvarna 871161010

SCREW
(Superseded to 596039001)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 532132796

SPRING COVER LH

$7.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532133235

SPACER.COVER.BAGGER

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532132983

SPRING COVER RH

$7.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532126813

POST, SUPPORT
(Superseded to 532180925)

$

$

Not available

25

Husqvarna 532063124

LOCKNUT
(Superseded to 873690500)

$

$

Not available

26

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

27

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 532170053

MOUNTING BRACKET, BAGGER

$

$

Not available

29

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 532131137

SUPPORT POST PIN

$14.99

$

In Stock, only 2 left!

0

31

Husqvarna 532174083

PLUG, TUBING END

$7.49

$

In Stock, Qty 14

0

32

Husqvarna 532134639

FRAME

$

$

Not available

33

Husqvarna 532128600

HINGE PIN
(Superseded to 532192786)

$21.99

$

In Stock, only 2 left!

0

34

Husqvarna 532127534

GASKET.COVER.BAGGER

$23.99

$

In Stock, Qty 7

0

35

Husqvarna 532129585

CONTAINER TOP
(Superseded to 532183286)

$53.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532129586

CONTAINER BOTTOM

$77.99

$

In Stock, only 4 left!

0

37

Husqvarna 532134637

BAGGER TOP SEAL

$

$

Not available

38

Husqvarna 532130895

LATCH CER38

$7.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532155857

STRIP.REINFORCEMENT.3.BIN.

$27.99

$

Usually ships in 3-10 days

0

40

Husqvarna 871141008

Screw #10-24 x 1/2

$

$

Not available

41

Husqvarna 532156006

TUBE.SUPPORT.BAGGER

$

$

Not available

42

Husqvarna 532145186

PLATE.ASM.REINFORCEMENT.BLACK

$

$

Not available

43

Husqvarna 819112410

WASHER

$7.49

$

Usually ships in 3-10 days

0

44

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 532128638

NUT WING PM

$4.99

$

In Stock, Qty 13

0

46

Husqvarna 874760536

Bolt, Hex 5/16-18 x 2-1/4

$

$

Not available

47

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$6.99

$

In Stock, only 2 left!

0

Husqvarna 532104419

REPL BY 532 10 50-70
(Superseded to 532105070)

Note: (Not included with bagger)

$

$

Not available

Husqvarna 532156235

Owner's Manual

$

$

Not available
