C 35 LA - Shindaiwa Brush Cutter (Original Version) Gearcase Parts Diagram

Brush Cutter

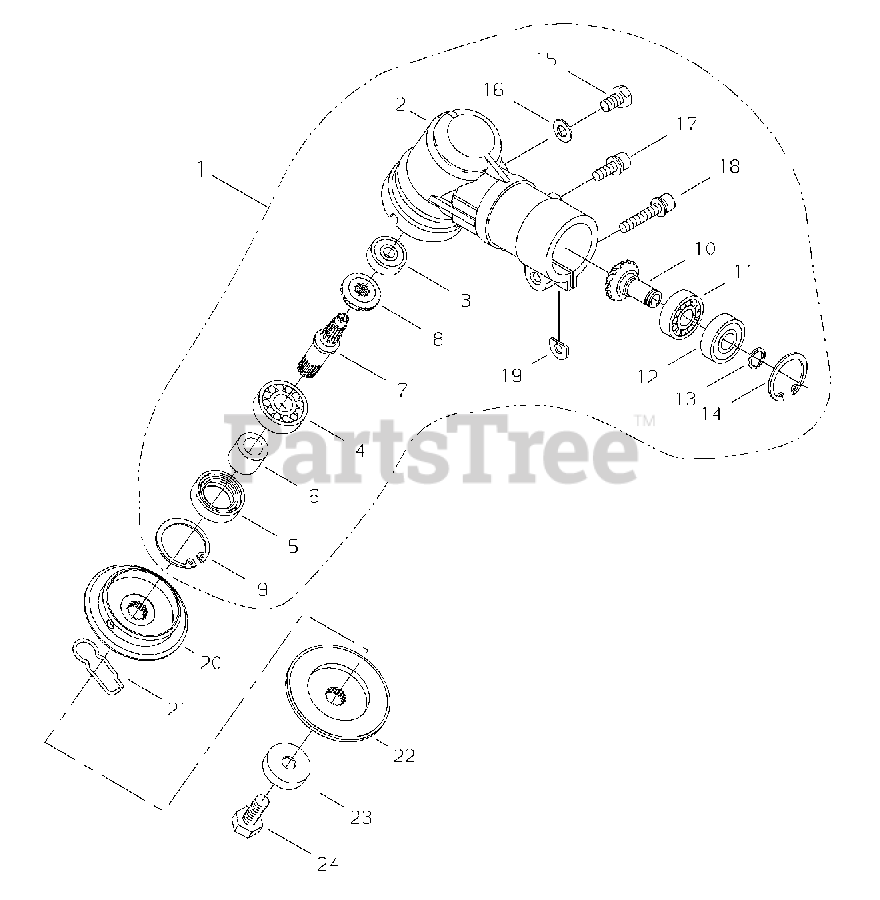

Gearcase Parts Diagram

  • Title

1

Echo 72017-13013

GEAR CASE ASSY
(Superseded to C051000560)

$264.99

$

Usually ships in 2-4 days

0

2

Echo 63020-63110

CASE, GEAR
(Superseded to 63020-63111)

$36.99

$

Usually ships in 2-4 days

0

3

Echo 37004-63310

BEARING, BALL - 6000
(Superseded to 02006-06000)

$16.99

$

In Stock, Qty 15

0

4

Echo 02000-06202

BEARING, BALL - 6202
(Superseded to 90081006202)

$11.99

$

In Stock, only 2 left!

0

5

Echo 72447-13121

SEAL, OIL
(Superseded to V513000000)

$4.99

$

Usually ships in 2-4 days

0

6

Echo 22015-13230

COLLAR
(Superseded to V358000130)

$4.99

$

Usually ships in 2-4 days

0

7

Echo 22015-13210

GEAR - SHAFT
(Superseded to C534000590)

$39.99

$

Usually ships in 2-4 days

0

8

Echo 22015-13220

GEAR - BEVEL
(Superseded to V651000540)

$29.99

$

Usually ships in 2-4 days

0

9

Echo 02432-35150

RING, RETAINING - 35
(Superseded to 9242435000)

$2.49

$

In Stock, Qty 10

0

10

Echo 22015-13390

PINION SET
(Superseded to V651000520)

$31.99

$

Usually ships in 2-4 days

0

11

Echo 37074-63310

BEARING, BALL - 6001
(Superseded to 90080006001)

$11.99

$

In Stock, Qty 20+

0

12

Echo 02002-06001

BEARING, BALL - 6001ZZ
(Superseded to 90080406001)

$13.99

$

In Stock, Qty 5

0

13

Echo 20000-31140

RING, RETAINING
(Superseded to V583000170)

$1.49

$

In Stock, Qty 20+

0

14

Echo 02432-28120

RING, RETAINING - 28
(Superseded to 9242428000)

$1.99

$

In Stock, Qty 20+

0

15

Echo 22015-13410

BOLT - 6X10
(Superseded to V206000250)

$1.99

$

In Stock, Qty 18

0

16

Echo 22015-13420

WASHER
(Superseded to V307000230)

$1.49

$

In Stock, only 3 left!

0

17

Echo 11022-06140

SCREW - 6X14
(Superseded to V204000740)

$1.99

$

Usually ships in 2-4 days

0

18

Echo 11022-06280

SCREW - 6X28
(Superseded to V204000410)

$

$

Not available

19

Echo 22011-13450

SHIM
(Superseded to V340000280)

$1.49

$

In Stock, Qty 6

0

20

Echo 72447-13240

HOLDER - A
(Superseded to C535000770)

$42.99

$

Usually ships in 2-4 days

0

21

Echo 22015-13290

SLIDE PIN
(Superseded to V641000140)

$2.99

$

In Stock, only 1 left!

0

22

Echo 72017-63170

HOLDER
(Superseded to C535000780)

$38.99

$

In Stock, Qty 5

0

23

Echo 22015-13270

GUARD
(Superseded to C535000790)

$6.49

$

Usually ships in 2-4 days

0

24

Echo 22015-13261

BOLT - 10 -- LEFT HAND
(Superseded to V206000220)

$3.49

$

In Stock, only 1 left!

0
