C 35 LA - Shindaiwa Brush Cutter (Original Version) Harness/Debris Shield Parts Diagram

Brush Cutter

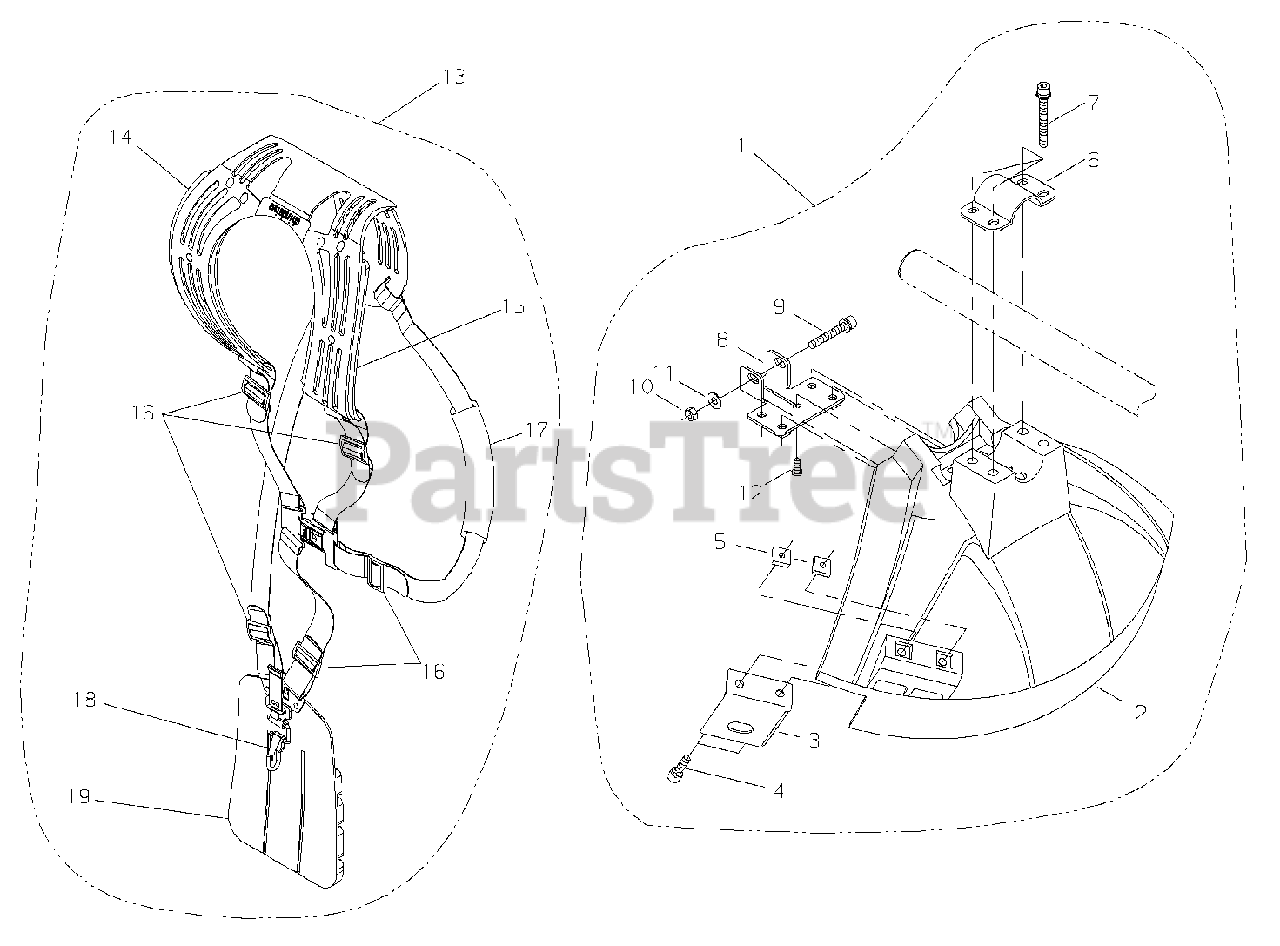

Harness/Debris Shield Parts Diagram

  • Title

1

Echo 72550-16001

GUARD ASSY
(Superseded to P021033210)

$36.99

$

Usually ships in 2-4 days

0

2

Echo 72480-16113

SHIELD, DEBRIS - BLACK
(Superseded to C550000390)

$11.99

$

In Stock, only 4 left!

0

3

Echo 72480-16121

KNIFE, TRIMMER LINE
(Superseded to C554000040)

$5.49

$

In Stock, Qty 10

0

4

Echo 11020-05160

SCREW - 5X16
(Superseded to V203000720)

$0.99

$

In Stock, Qty 20+

0

5

Echo 22420-16120

NUT - 5
(Superseded to V263000130)

$0.99

$

In Stock, Qty 9

0

6

Echo 72480-16210

CLAMP - UPPER
(Superseded to C551000060)

$1.99

$

In Stock, Qty 11

0

7

Echo 11022-05450

SCREW - 5X45
(Superseded to V203000610)

$1.99

$

In Stock, Qty 20+

0

8

Echo 72017-16130

CLAMP - LOWER
(Superseded to C551000110)

$3.99

$

In Stock, Qty 6

0

9

Echo 11022-06400

SCREW - 6X40
(Superseded to V204000450)

$1.99

$

In Stock, only 3 left!

0

10

Echo 01500-06051

NUT - 6
(Superseded to 90050000006)

$0.99

$

In Stock, Qty 20+

0

11

Echo 01613-06100

WASHER - 6
(Superseded to 90060300006)

$0.99

$

In Stock, Qty 20+

0

12

Echo 11202-40100

SCREW
(Superseded to V252000240)

$0.99

$

In Stock, Qty 5

0

13

Echo 64007-67011

HARNESS ASSY

$

$

Currently unavailable

14

Echo 72451-17350

PAD - RIGHT
(Superseded to 64007-67330)

$7.49

$

Usually ships in 2-4 days

0

15

Echo 72451-17360

PAD - LEFT
(Superseded to 64007-67340)

$8.99

$

Usually ships in 2-4 days

0

16

Echo 72451-17340

BUCKLE

$0.99

$

Usually ships in 2-4 days

0

17

Echo 72451-17330

PAD
(Superseded to C652000040)

$3.49

$

Usually ships in 2-4 days

0

18

Echo 72451-17380

HOOK
(Superseded to Discontinued)

$

$

Not available

19

Echo 72451-17370

PAD
(Superseded to Discontinued)

$

$

Not available
