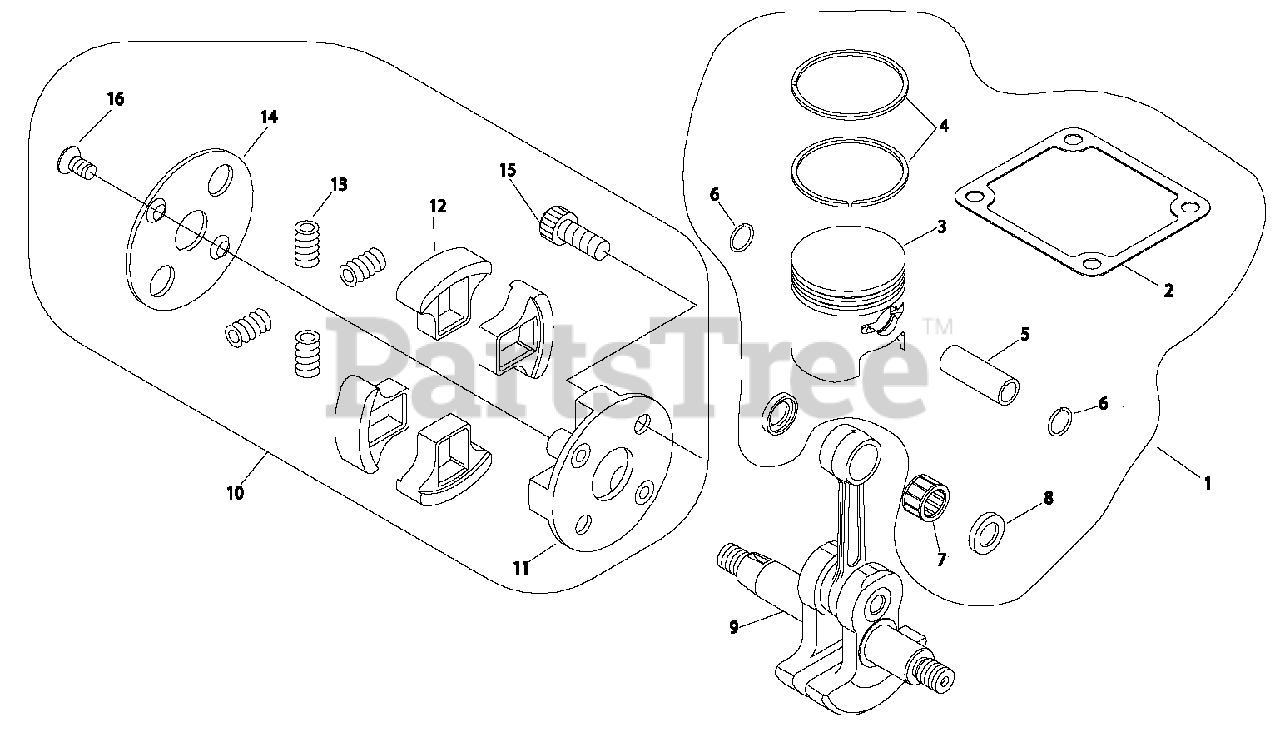

C 35 LA - Shindaiwa Brush Cutter (SN: 09015641 - 09017140) Clutch, Piston Parts Diagram

Brush Cutter

Clutch, Piston Parts Diagram

  • Title

1

Echo P021031560

PISTON KIT

Note: 72051-98011

$74.99

$

Usually ships in 2-4 days

0

2

Echo V100000470

GASKET, CYLINDER

Note: 20010-12121

$1.99

$

In Stock, only 4 left!

0

3

Echo A100000700

PISTON

Note: 20010-41111

$49.99

$

Usually ships in 2-4 days

0

4

Echo A101000380

RING, PISTON

Note: 20010-41210

$5.49

$

Usually ships in 2-4 days

0

5

Echo V608000020

PIN, PISTON
(Superseded to V608000060)

Note: 20010-41310

$5.99

$

Usually ships in 2-4 days

0

6

Echo V580000110

RING, RETAINING

Note: 22100-41230

$1.49

$

In Stock, Qty 10

0

7

Echo V555000090

BEARING, NEEDLE - 10

Note: 20010-41330

$11.99

$

In Stock, only 3 left!

0

8

Echo V307000220

SPACER, PISTON

Note: 70200-41341

$7.49

$

Usually ships in 2-4 days

0

9

Echo A011000860

CRANKSHAFT ASSY

Note: 20010-42002

$70.99

$

Usually ships in 2-4 days

0

10

Echo A056000450

CLUTCH ASSY
(Superseded to A056000451)

Note: 70210-51100

$59.99

$

In Stock, only 2 left!

0

11

Echo A552000120

HUB, CLUTCH

Note: 20020-51112

$

$

Currently unavailable

12

Echo A555000130

SHOE, CLUTCH

Note: 20020-51121

$4.99

$

In Stock, only 1 left!

0

13

Echo A566000150

SPRING, CLUTCH
(Superseded to A566000220)

Note: 20020-51131

$1.99

$

In Stock, only 1 left!

0

14

Echo A551000120

PLATE, CLUTCH

Note: 20020-51140

$8.49

$

Usually ships in 2-4 days

0

15

Echo A557000120

BOLT, CLUTCH

Note: 20020-51150

$2.99

$

Usually ships in 2-4 days

0

16

Echo V203000880

SCREW

Note: 70210-51160

$1.49

$

In Stock, Qty 9

0
