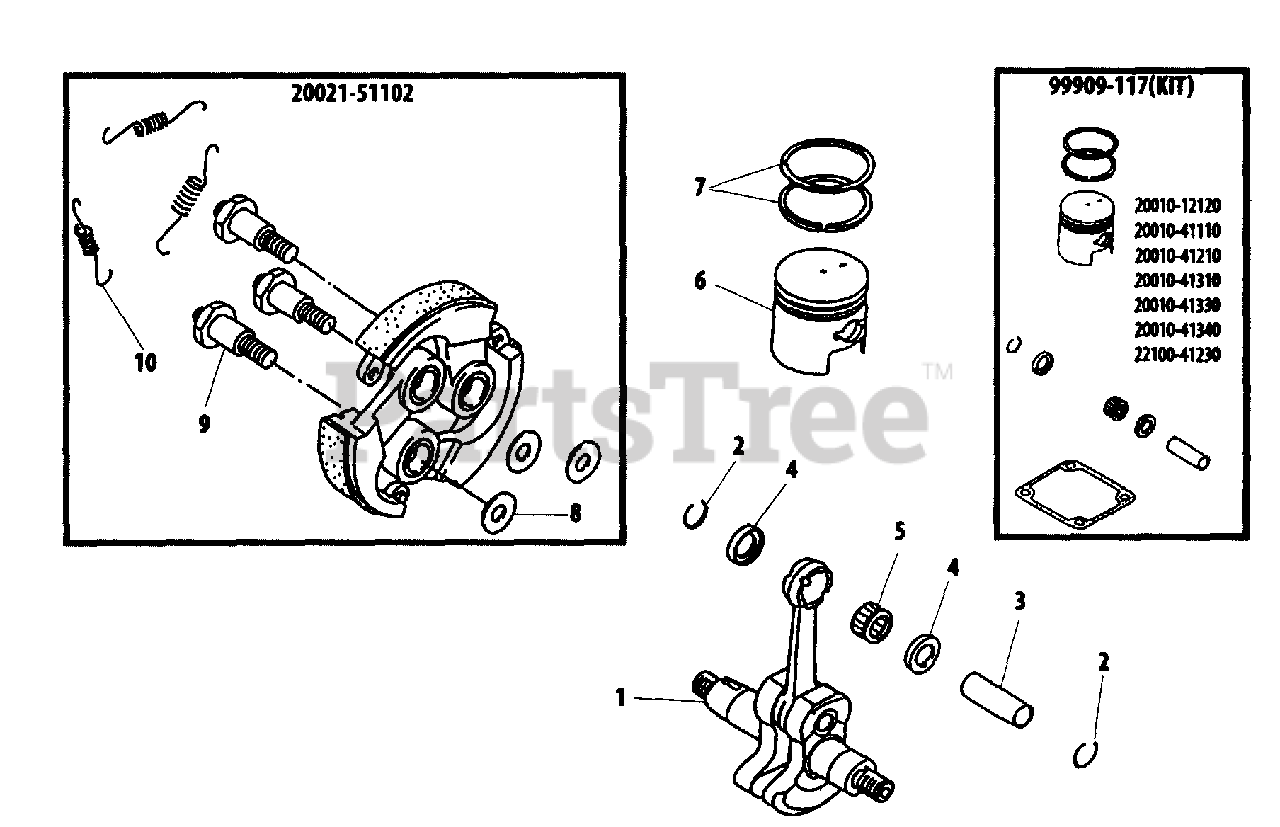

C 35 - Shindaiwa Brush Cutter (Original Version) Clutch, Piston Parts Diagram

Brush Cutter

Clutch, Piston Parts Diagram

  • Title

1

Echo 20010-42002

CRANKSHAFT ASSY
(Superseded to A011000860)

$65.99

$

Usually ships in 2-4 days

0

99909-117

Echo 99909-117

PISTON ASSY
(Superseded to 72051-98010)

$69.99

$

Usually ships in 2-4 days

0

2

Echo 22100-41230

RING, RETAINING
(Superseded to V580000110)

$1.49

$

In Stock, Qty 10

0

3

Echo 20010-41310

PIN, PISTON
(Superseded to V608000020)

$5.49

$

Usually ships in 2-4 days

0

4

Echo 20010-41340

WASHER, THRUST
(Superseded to V307000220)

$6.99

$

Usually ships in 2-4 days

0

5

Echo 20010-41330

BEARING, NEEDLE
(Superseded to V555000090)

$10.99

$

In Stock, only 3 left!

0

6

Echo 20010-41110

PISTON
(Superseded to 72051-98310)

$48.99

$

Usually ships in 2-4 days

0

7

Echo 20010-41210

RING, PISTON
(Superseded to A101000380)

Note: See "Cylinder" illustration and parts list.

$4.99

$

Usually ships in 2-4 days

0

Echo 20010-12120

GASKET, CYLINDER
(Superseded to 20010-12121)

$1.99

$

In Stock, only 4 left!

0

20021-51102

Echo 20021-51102

CLUTCH SHOE ASSY
(Superseded to P021017990)

$66.99

$

Usually ships in 2-4 days

0

8

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$1.49

$

Usually ships in 2-4 days

0

9

Echo 20021-51131

BOLT, CLUTCH
(Superseded to A557000100)

$6.49

$

Usually ships in 2-4 days

0

10

Echo 20021-51120

SPRING, CLUTCH
(Superseded to A566000130)

$2.99

$

Usually ships in 2-4 days

0
