C 35 - Shindaiwa Brush Cutter (SN: 06010001 - 09319999) CARBURETOR / AIR FILTER Parts Diagram

Brush Cutter

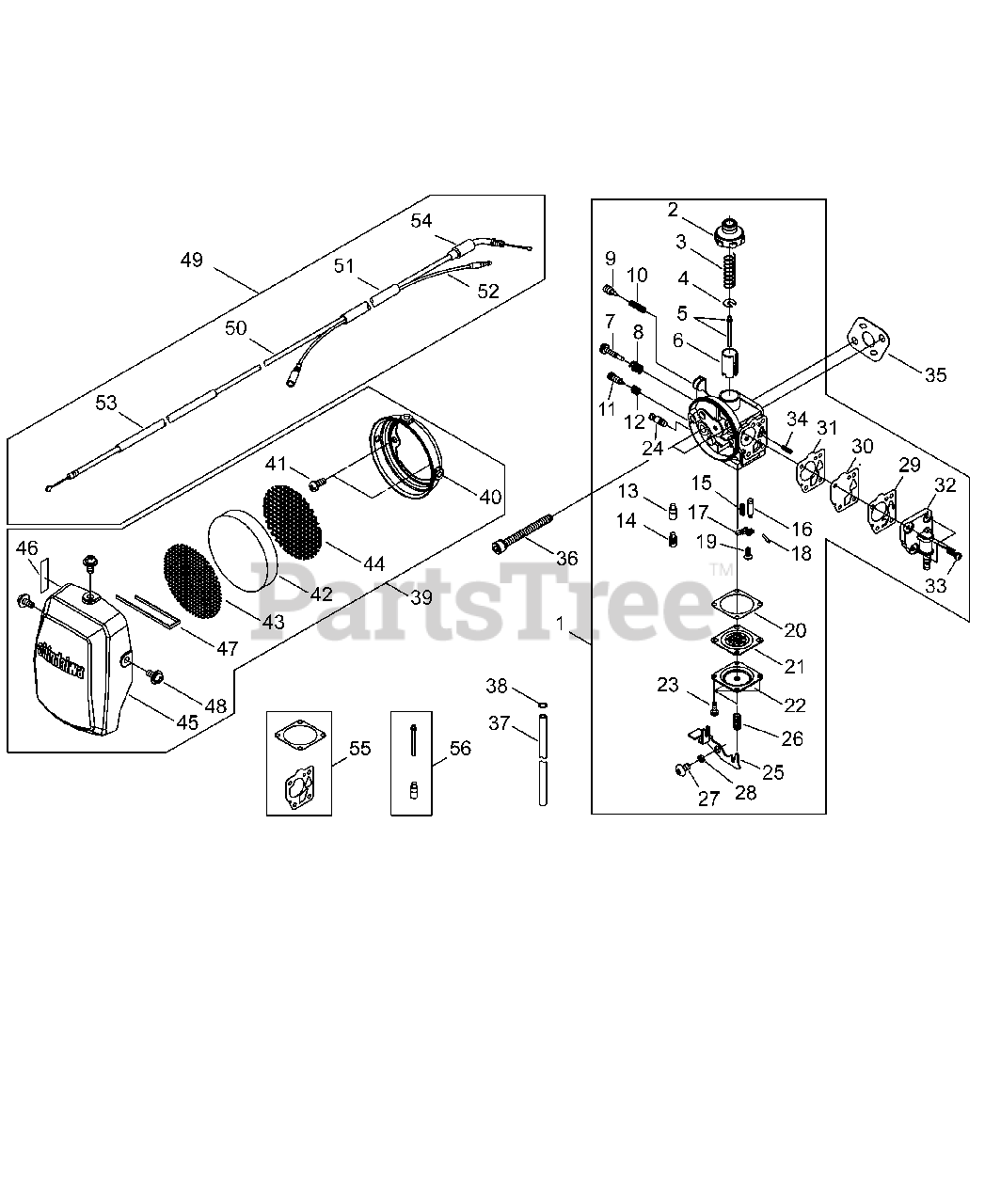

CARBURETOR / AIR FILTER Parts Diagram

  • Title

1

Echo A021003490

CARBURETOR

Note: 20011-81021

$89.99

$

Usually ships in 2-4 days

0

2

Echo P004003400

CAP, THROTTLE

Note: 20000-81130

$7.99

$

Usually ships in 2-4 days

0

3

Echo P004000440

SPRING

Note: 20011-81140

$1.99

$

Usually ships in 2-4 days

0

4

Echo 12411505530

WASHER, SPRING SUPPORT

Note: 20000-81150

$1.99

$

In Stock, Qty 16

0

5

Echo P004003390

NEEDLE, JET

Note: 20000-81170

$12.99

$

In Stock, only 1 left!

0

6

Echo P004001260

VALVE, THROTTLE

Note: 20011-81182

$16.99

$

Usually ships in 2-4 days

0

7

Echo 12415905530

SCREW, IDLE ADJUST

Note: 20000-81310

$2.49

$

In Stock, Qty 6

0

8

Echo 12433305630

SPRING

Note: 20000-81320

$0.99

$

In Stock, Qty 8

0

9

Echo P004000880

SCREW, SLOW AIR

Note: 20000-81330

$2.99

$

Usually ships in 2-4 days

0

10

Echo P004000890

SPRING

Note: 20000-81340

$0.99

$

In Stock, Qty 6

0

11

Echo P004001300

SCREW, MAIN ADJUST

Note: 20011-81351

$5.49

$

In Stock, only 4 left!

0

12

Echo 12435521330

SPRING

Note: 20011-81360

$1.99

$

In Stock, Qty 10

0

13

Echo P004001310

JET, MAIN

Note: 20011-81410

$11.99

$

In Stock, only 1 left!

0

14

Echo P004001320

HOLDER, MAIN JET

Note: 20011-81420

$3.99

$

Usually ships in 2-4 days

0

15

Echo 12433121330

SPRING

Note: 20011-81430

$1.49

$

In Stock, only 2 left!

0

16

Echo P004000930

VALVE, INLET NEEDLE

Note: 20000-81441

$10.99

$

In Stock, Qty 6

0

17

Echo P004001340

LEVER, METERING

Note: 20011-81451

$4.99

$

Usually ships in 2-4 days

0

18

Echo 12433221330

PIN, METERING LEVER

Note: 20011-81460

$1.99

$

In Stock, only 3 left!

0

19

Echo P004001350

SCREW M3×8

Note: 20011-81470

$0.99

$

Usually ships in 2-4 days

0

20

Echo 12435821330

GASKET, METERING DIAPHRAGM

Note: 20011-81510

$2.99

$

Usually ships in 2-4 days

0

21

Echo 12434122830

DIAPHRAGM, METERING

Note: 20011-81520

$14.99

$

In Stock, only 4 left!

0

22

Echo 12432421330

COVER, DIAPHRAGM

Note: 20011-81530

$4.49

$

In Stock, only 1 left!

0

23

Echo P004001000

SCREW M3×8

Note: 20000-81540

$0.99

$

Usually ships in 2-4 days

0

24

Echo P004001360

VALVED, OVERFLOW

Note: 20011-81550

$10.99

$

In Stock, Qty 7

0

25

Echo P004001370

LEVER, TICKLER

Note: 20011-81563

$4.49

$

In Stock, only 1 left!

0

26

Echo P004001400

SPRING

Note: 20011-81573

$0.99

$

In Stock, only 3 left!

0

27

Echo P004001410

SCREW

Note: 20011-81581

$0.99

$

In Stock, Qty 5

0

28

Echo P004001420

COLLAR

Note: 20011-81590

$0.99

$

In Stock, only 1 left!

0

29

Echo P004001880

VALVE, PUMP

Note: 20020-81660

$7.99

$

In Stock, Qty 10

0

30

Echo P004001430

DIAPHRAGM, METERING

Note: 20011-81621

$5.99

$

In Stock, Qty 6

0

31

Echo 12436321330

GASKET, DIAPHRAGM

Note: 20011-81630

$1.99

$

In Stock, Qty 13

0

32

Echo P004001440

BODY, PUMP

Note: 20011-81641

$12.99

$

In Stock, only 1 left!

0

33

Echo P004001030

SCREW

Note: 20000-81650

$0.99

$

In Stock, Qty 20+

0

34

Echo 12436721330

SPRING, COIL

Note: 20011-81680

$1.49

$

Usually ships in 2-4 days

0

35

Echo V103000960

GASKET, CARBURETOR

Note: 20011-83411

$0.99

$

In Stock, Qty 11

0

36

Echo V203000850

BOLT M5×50

Note: 11020-05500

$1.99

$

In Stock, Qty 13

0

37

Echo V471002630

PIPE, FUEL

Note: 20000-83312

$0.99

$

In Stock, Qty 5

0

38

Echo V490000500

CLIP Ø6

Note: 20020-85540

$0.99

$

In Stock, Qty 20+

0

39

Echo A027000090

FILTER ASSY, AIR

Note: 20010-81701

$35.99

$

Usually ships in 2-4 days

0

40

Echo A225000500

CASE, AIR FILTER

Note: 20010-81711

$7.49

$

Usually ships in 2-4 days

0

41

Echo V252000220

SCREW

Note: 20000-81730

$0.99

$

In Stock, only 1 left!

0

42

Echo A226000670

FILTER, AIR

Note: 20000-81740

$3.49

$

In Stock, Qty 20+

0

43

Echo A230000030

SCREEN - OUTER

Note: 20000-81750

$2.99

$

In Stock, only 3 left!

0

44

Echo A230000040

SCREEN, REAR

Note: 20010-81760

$8.99

$

In Stock, only 3 left!

0

45

Echo A232000870

COVER, AIR FILTER

Note: 20010-81771

$7.99

$

Usually ships in 2-4 days

0

46

Echo X506000130

LABEL, CHOKE

Note: 19404-00008

$0.99

$

In Stock, Qty 20+

0

47

Echo A238000060

CLIP, FILTER RETAINING

Note: 20010-81781

$1.49

$

In Stock, Qty 7

0

48

Echo V252000230

SCREW 4

Note: 20000-81735

$0.99

$

In Stock, Qty 11

0

49

Echo V043000490

THROTTLE CONTROL ASSY

Note: 20011-83100

$19.99

$

In Stock, only 2 left!

0

50

Echo V430002870

CABLE, THROTTLE

Note: 20011-83110

$12.99

$

Usually ships in 2-4 days

0

51

Echo V475004740

SLEEVE

Note: 20011-83120

$0.99

$

Usually ships in 2-4 days

0

52

Echo V485001620

LEAD - GROUND

Note: 20011-83130

$3.49

$

Usually ships in 2-4 days

0

53

Echo V475004750

TUBE, THROTTLE CABLE

Note: 20011-83140

$0.99

$

Usually ships in 2-4 days

0

54

Echo A246000020

CAP, THROTTLE CABLE

Note: 20005-83160

$0.99

$

In Stock, Qty 20+

0

55

Echo P050009220

GASKET KIT

Note: 20011-81910

$2.99

$

In Stock, Qty 18

0

56

Echo P050009270

NEEDLE KIT, JET

Note: 70012-98030

$21.99

$

Usually ships in 2-4 days

0
