C 35 - Shindaiwa Brush Cutter (SN: T23620000001 - T23620999999) CRANKCASE / ENGINE COVER / FAN COVER Parts Diagram

Brush Cutter

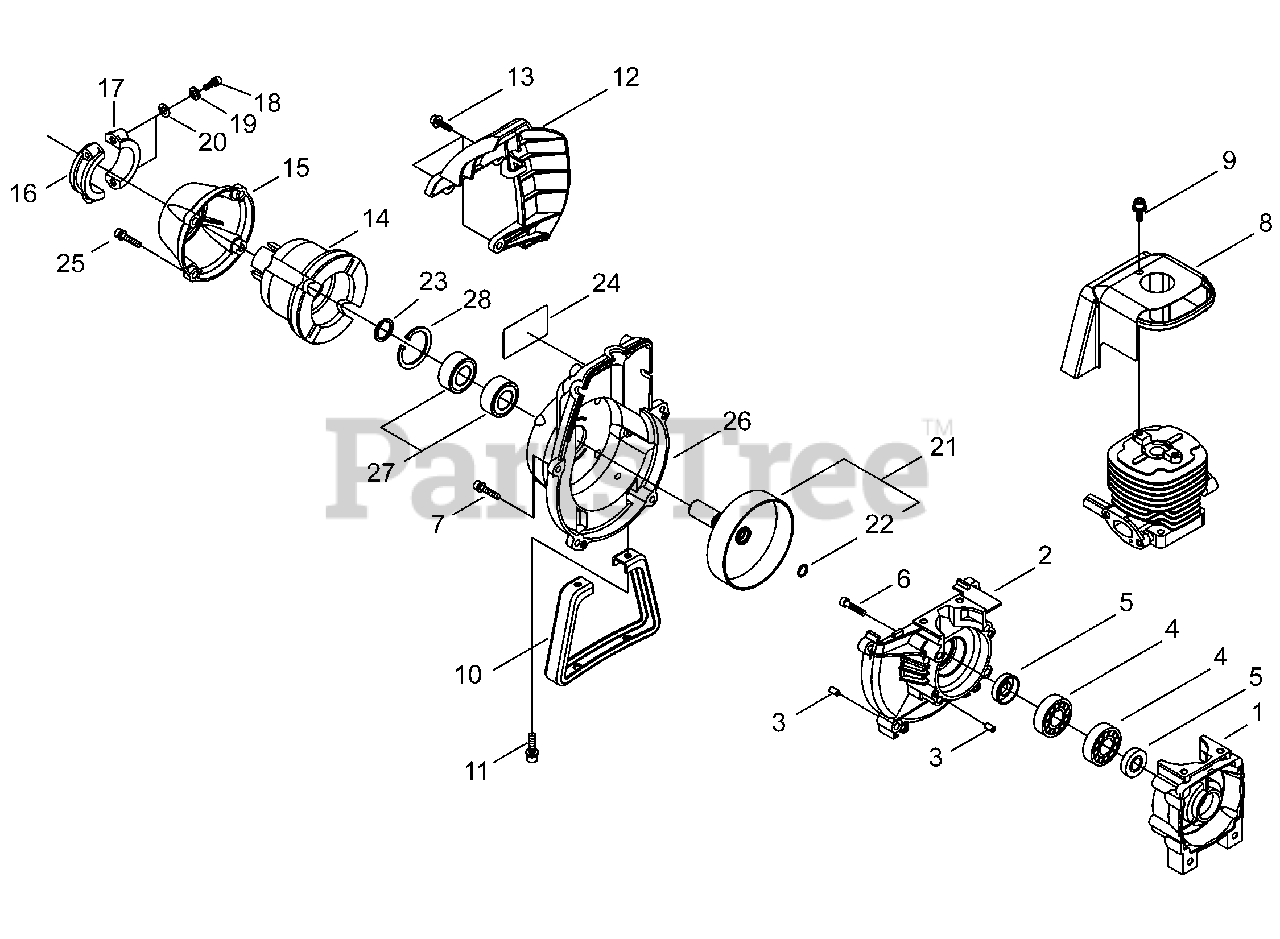

CRANKCASE / ENGINE COVER / FAN COVER Parts Diagram

  • Title

1

Echo A120001160

CRANKCASE S

Note: 70012-21310

$41.99

$

Usually ships in 2-4 days

0

2

Echo A120000430

CRANKCASE M
(Superseded to A120001050)

Note: 70012-21121

$55.99

$

Usually ships in 2-4 days

0

3

Echo V623000060

PIN, LOCATING 5×10
(Superseded to 10021502830)

Note: 12492-50100

$0.99

$

Usually ships in 2-4 days

0

4

Echo V592000030

BEARING, BALL 6202 C3
(Superseded to V592000290)

Note: 12900-62020

$8.49

$

Usually ships in 2-4 days

0

5

Echo V508000050

SEAL, OIL 16

Note: 20010-21211

$7.49

$

In Stock, Qty 11

0

6

Echo 90010505030

BOLT 5×30

Note: 01020-05300

$1.49

$

In Stock, Qty 13

0

7

Echo V203000350

BOLT M5×20
(Superseded to V203000351)

Note: 11022-05200

$1.49

$

In Stock, Qty 7

0

8

Echo A160001720

COVER, ENGINE

Note: 70012-32110

$17.99

$

Usually ships in 2-4 days

0

9

Echo V203001140

BOLT 5×14

Note: 11024-05140

$1.49

$

Usually ships in 2-4 days

0

10

Echo A175000180

STAND

Note: 70200-33112

$11.99

$

In Stock, only 2 left!

0

11

Echo V203000590

BOLT M5×16
(Superseded to V203000591)

Note: 11022-05160

$1.49

$

In Stock, only 4 left!

0

12

Echo A162000180

GUARD, TOP

Note: 20011-34100

$5.99

$

In Stock, only 1 left!

0

13

Echo V202000300

BOLT M4×16
(Superseded to 9111304016)

Note: 11024-04160

$0.99

$

In Stock, Qty 17

0

14

Echo A575000400

CUSHION, AV

Note: 20011-35110

$29.99

$

Usually ships in 2-4 days

0

15

Echo A575000410

CAP, CUSHION

Note: 70012-35130

$20.99

$

Usually ships in 2-4 days

0

16

Echo A575000420

CLAMP (A)

Note: 20011-35141

$5.49

$

Usually ships in 2-4 days

0

17

Echo A575000430

CLAMP (B)

Note: 20011-35151

$4.99

$

Usually ships in 2-4 days

0

18

Echo 90010505025

BOLT 5×25

Note: 01020-05250

$1.49

$

In Stock, only 1 left!

0

19

Echo 90060500005

WASHER, SPRING 5

Note: 01600-05131

$0.99

$

In Stock, Qty 10

0

20

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

Note: 01610-05080

$0.99

$

In Stock, Qty 20+

0

21

Echo A055000000

DRUM, CLUTCH
(Superseded to A556001480)

Note: 20011-31200

$53.99

$

In Stock, only 2 left!

0

22

Echo V582000080

RING, RETAINING

Note: 20011-31220

$0.99

$

Usually ships in 2-4 days

0

23

Echo V583000180

RING, SNAP
(Superseded to V583000181)

Note: 20011-31230

$0.99

$

Usually ships in 2-4 days

0

24

Echo X504002500

LABEL, TRADE

Note: 70012-31152

$

$

Not available

25

Echo V203000350

BOLT M5×20
(Superseded to V203000351)

Note: 11022-05200

$1.49

$

In Stock, Qty 7

0

26

Echo A172001300

COVER, FAN
(Superseded to A172002310)

Note: 70012-31111

$59.99

$

Usually ships in 2-4 days

0

27

Echo 90080206002

BEARING, BALL 6002 DDU

Note: 02006-06002

$18.99

$

In Stock, only 2 left!

0

28

Echo 9242432000

RING, SNAP Ø32

Note: 02432-32120

$1.49

$

In Stock, only 3 left!

0
