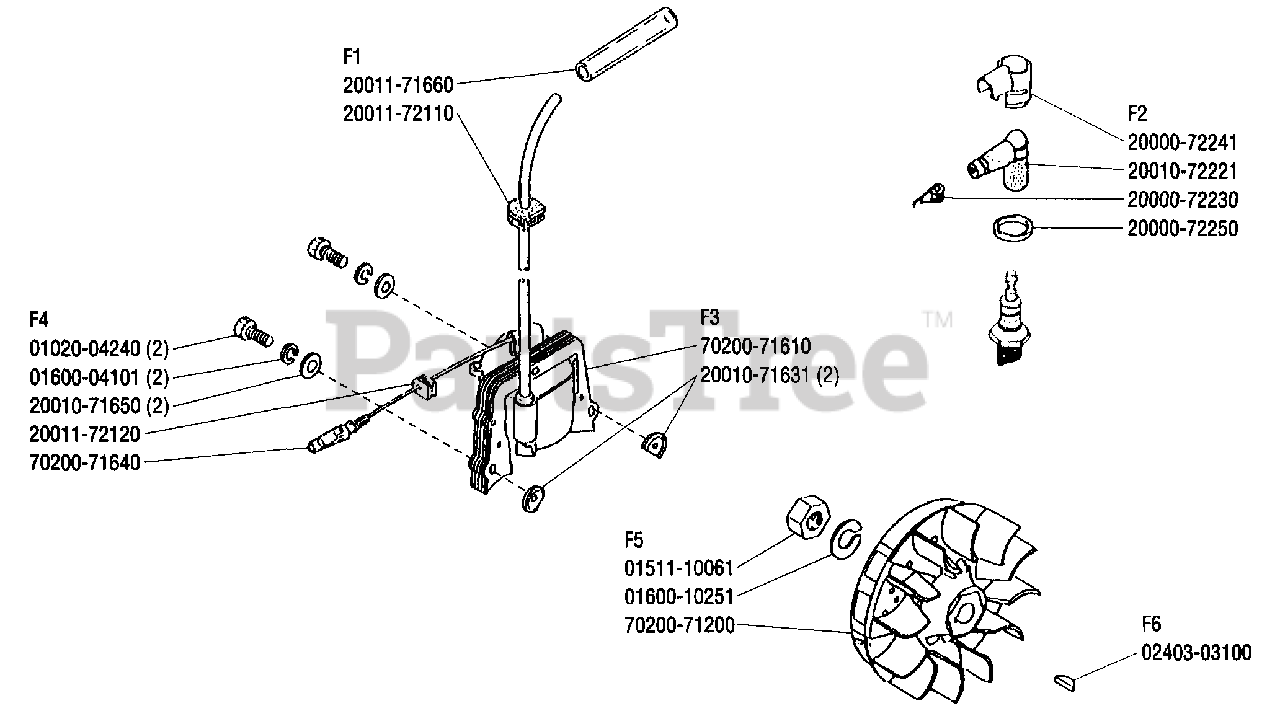

C 350 - Shindaiwa Brush Cutter (Original Version) Flywheel Parts Diagram

Brush Cutter

Flywheel Parts Diagram

  • Title

F1-20011-71660

Echo 20011-71660

TUBE, INSULATOR
(Superseded to V475004880)

$1.49

$

Usually ships in 2-4 days

0

F1-20011-72110

Echo 20011-72110

GROMMET
(Superseded to V135000080)

$1.99

$

Usually ships in 2-4 days

0

F2-20000-72230

Echo 20000-72230

TERMINAL, SPARK PLUG
(Superseded to A426000050)

$1.99

$

In Stock, Qty 6

0

F2-20000-72241

Echo 20000-72241

COVER, CAP
(Superseded to A429000110)

$1.99

$

In Stock, Qty 17

0

F2-20000-72250

Echo 20000-72250

SEAL, SPARK PLUG
(Superseded to V495001440)

$1.49

$

In Stock, only 4 left!

0

F2-20010-72221

Echo 20010-72221

CAP, SPARK PLUG
(Superseded to A427000090)

$7.49

$

In Stock, only 2 left!

0

F3-20010-71631

Echo 20010-71631

COLLAR 4
(Superseded to V352000140)

$1.99

$

Usually ships in 2-4 days

0

F3-70200-71610

Echo 70200-71610

COIL, IGNITION
(Superseded to A411000780)

$72.99

$

In Stock, only 2 left!

0

F4-01020-04240

Echo 01020-04240

BOLT M4×24
(Superseded to 9110004024)

$1.49

$

In Stock, Qty 6

0

F4-01600-04101

Echo 01600-04101

WASHER, SPRING 4 MM
(Superseded to 90060500004)

$0.99

$

In Stock, Qty 20+

0

F4-20010-71650

Echo 20010-71650

WASHER 4.3×9.6×0.8
(Superseded to V302000010)

$1.49

$

In Stock, only 4 left!

0

F4-20011-72120

Echo 20011-72120

GROMMET, LEAD
(Superseded to V136000060)

$1.49

$

Usually ships in 2-4 days

0

F4-70200-71640

Echo 70200-71640

LEAD - IGNITION
(Superseded to A412000030)

$2.49

$

Usually ships in 2-4 days

0

F5-01511-10061

Echo 01511-10061

NUT 10×1.25
(Superseded to 90050300010)

$1.49

$

Usually ships in 2-4 days

0

F5-01600-10251

Echo 01600-10251

WASHER, SPRING 10
(Superseded to 90060500010)

$0.99

$

In Stock, Qty 6

0

F5-70200-71200

Echo 70200-71200

FLYWHEEL
(Superseded to A409000640)

$55.99

$

Usually ships in 2-4 days

0

F6-02403-03100

Echo 02403-03100

KEY, WOODRUFF 3×10
(Superseded to 9311503010)

$0.99

$

In Stock, Qty 13

0
