C 350 - Shindaiwa Brush Cutter (Original Version) Gearcase Parts Diagram

Brush Cutter

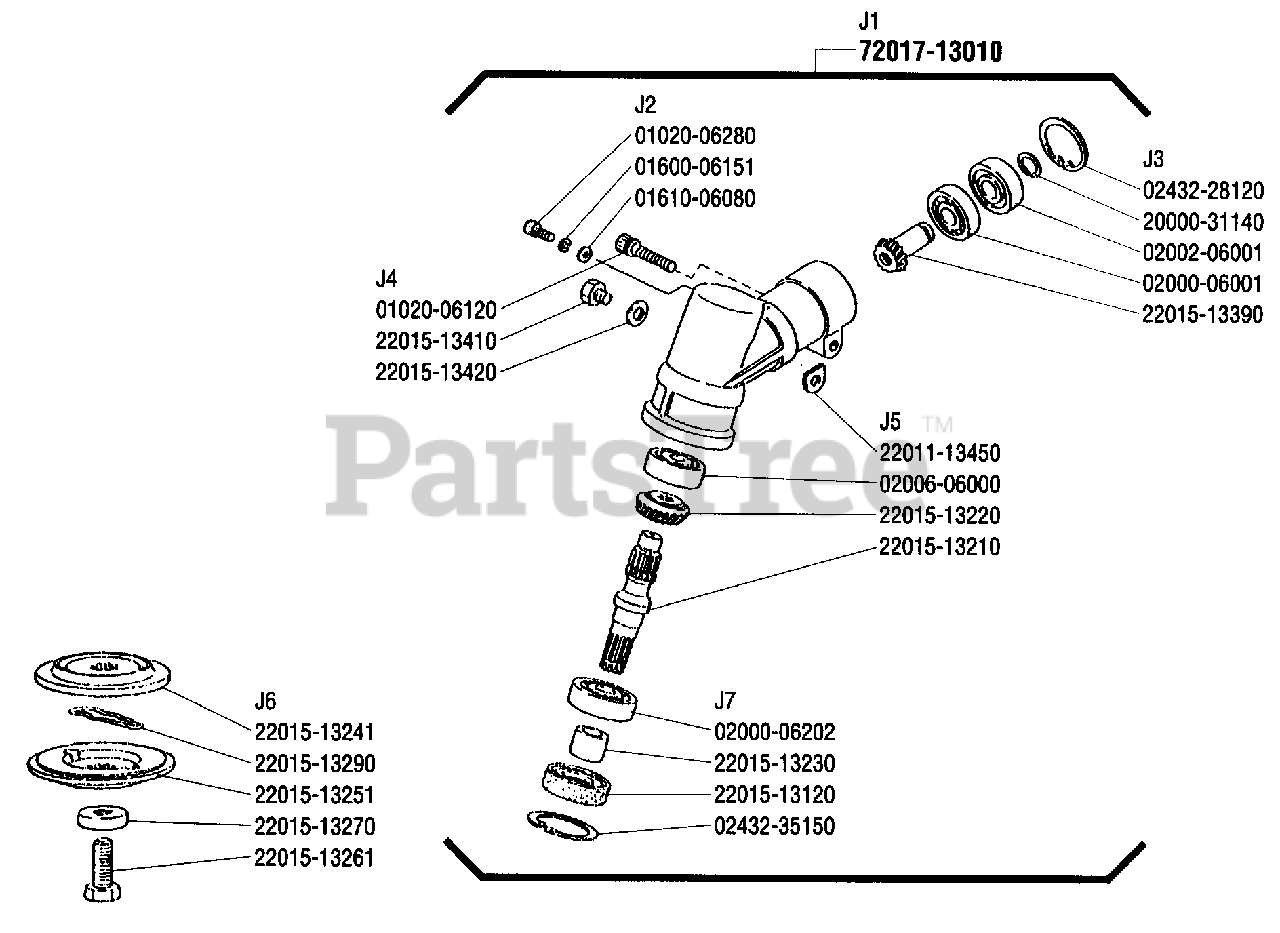

Gearcase Parts Diagram

  • Title

J1-72017-13010

Echo 72017-13010

GEAR CASE ASSY
(Superseded to 72017-13011)

$264.99

$

Usually ships in 2-4 days

0

J2-01020-06280

Echo 01020-06280

SCREW - 6X28
(Superseded to 90010506028)

$1.99

$

Usually ships in 2-4 days

0

J2-01600-06151

Echo 01600-06151

LOCKWASHER - 6
(Superseded to 90060500006)

$0.99

$

In Stock, Qty 16

0

J2-01610-06080

Echo 01610-06080

WASHER - 6
(Superseded to 90060000006)

$0.99

$

In Stock, Qty 20+

0

J3-02000-06001

Echo 02000-06001

BEARING, BALL - 6001
(Superseded to 37074-63310)

$11.99

$

In Stock, Qty 17

0

J3-02002-06001

Echo 02002-06001

BEARING, BALL - 6001ZZ
(Superseded to 90080406001)

$13.99

$

In Stock, Qty 5

0

J3-02432-28120

Echo 02432-28120

RING, RETAINING - 28
(Superseded to 9242428000)

$1.99

$

In Stock, Qty 20+

0

J3-20000-31140

Echo 20000-31140

RING, RETAINING
(Superseded to V583000170)

$1.49

$

In Stock, Qty 20+

0

J3-22015-13390

Echo 22015-13390

PINION SET
(Superseded to V651000520)

$31.99

$

Usually ships in 2-4 days

0

J4-01020-06120

Echo 01020-06120

SCREW - 6X12
(Superseded to 90010506012)

$1.49

$

Usually ships in 2-4 days

0

J4-22015-13410

Echo 22015-13410

BOLT - 6X10
(Superseded to V206000250)

$1.99

$

In Stock, Qty 18

0

J4-22015-13420

Echo 22015-13420

WASHER
(Superseded to V307000230)

$1.49

$

In Stock, only 3 left!

0

J5-02006-06000

Echo 02006-06000

BEARING, BALL - 6000DDU
(Superseded to 90080206000)

$16.99

$

In Stock, Qty 16

0

J5-22011-13450

Echo 22011-13450

SHIM
(Superseded to V340000280)

$1.49

$

In Stock, Qty 6

0

J5-22015-13210

Echo 22015-13210

GEAR - SHAFT
(Superseded to C534000590)

$39.99

$

Usually ships in 2-4 days

0

J5-22015-13220

Echo 22015-13220

GEAR - BEVEL
(Superseded to V651000540)

$29.99

$

Usually ships in 2-4 days

0

J6-22015-13241

Echo 22015-13241

HOLDER (A)
(Superseded to 72447-13240)

$42.99

$

Usually ships in 2-4 days

0

J6-22015-13251

Echo 22015-13251

HOLDER (B)
(Superseded to C535000780)

$38.99

$

In Stock, Qty 5

0

J6-22015-13261

Echo 22015-13261

BOLT - 10 -- LEFT HAND
(Superseded to V206000220)

$3.49

$

In Stock, only 1 left!

0

J6-22015-13270

Echo 22015-13270

GUARD
(Superseded to C535000790)

$6.49

$

Usually ships in 2-4 days

0

J6-22015-13290

Echo 22015-13290

SLIDE PIN
(Superseded to V641000140)

$2.99

$

In Stock, only 1 left!

0

J7-02000-06202

Echo 02000-06202

BEARING, BALL - 6202
(Superseded to 90081006202)

$11.99

$

In Stock, only 2 left!

0

J7-02432-35150

Echo 02432-35150

RING, RETAINING - 35
(Superseded to 9242435000)

$2.49

$

In Stock, Qty 9

0

J7-22015-13120

Echo 22015-13120

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

J7-22015-13230

Echo 22015-13230

COLLAR
(Superseded to V358000130)

$4.99

$

Usually ships in 2-4 days

0
