C 350 - Shindaiwa Brush Cutter (SN: 09010921 - 09011920) Crankcase / Engine Cover / Fan Cover Parts Diagram

Brush Cutter

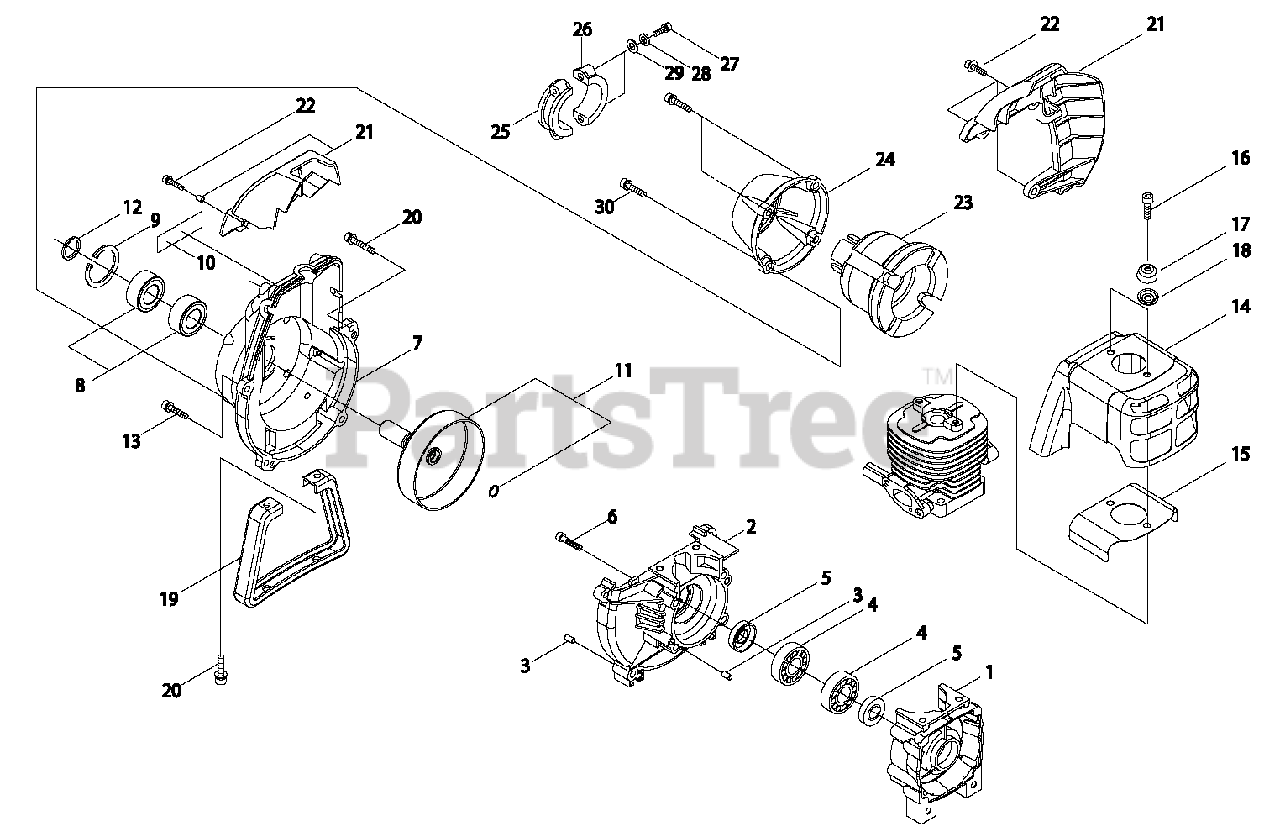

Crankcase / Engine Cover / Fan Cover Parts Diagram

  • Title

1

Echo A120000080

CRANKCASE - REAR
(Superseded to A120000081)

Note: 72935-21111

$42.99

$

Usually ships in 2-4 days

0

2

Echo A120000360

CRANKCASE - FRONT

Note: 72921-21121

$38.99

$

Usually ships in 2-4 days

0

3

Echo V623000060

PIN - LOCATING
(Superseded to 10021502830)

Note: 12492-50100

$0.99

$

Usually ships in 2-4 days

0

4

Echo V592000030

BEARING, BALL - 6202C3
(Superseded to V592000290)

Note: 12900-62020

$7.49

$

Usually ships in 2-4 days

0

5

Echo V508000050

SEAL, OIL - 15

Note: 20010-21211

$7.49

$

In Stock, Qty 12

0

6

Echo 90010505030

SCREW - 5X30

Note: 01020-05300

$1.49

$

In Stock, Qty 6

0

7

Echo A172001300

CASE, FAN
(Superseded to A172002310)

Note: 70012-31111

$53.99

$

Usually ships in 2-4 days

0

8

Echo 90080206002

BEARING, BALL - 6002

Note: 02006-06002

$16.99

$

In Stock, only 1 left!

0

9

Echo 9242432000

RING, RETAINING - 32

Note: 02432-32120

$0.99

$

In Stock, Qty 5

0

10

Echo X504002490

NAME PLATE

Note: 70200-31151

$1.99

$

Usually ships in 2-4 days

0

11

Echo A055000000

DRUM, CLUTCH
(Superseded to A556001480)

Note: 20011-31200

$53.99

$

Usually ships in 2-4 days

0

12

Echo V583000180

RING, RETAINING
(Superseded to V583000181)

Note: 20011-31230

$0.99

$

Usually ships in 2-4 days

0

13

Echo V203000350

SCREW - 5X20
(Superseded to V203000351)

Note: 11022-05200

$0.99

$

In Stock, Qty 20+

0

14

Echo A160001600

COVER, ENGINE

Note: 70196-32110

$40.99

$

Usually ships in 2-4 days

0

15

Echo V101000020

SHIELD, CYLINDER

Note: 70196-32141

$1.99

$

In Stock, only 4 left!

0

16

Echo V203000840

SCREW - 5X14

Note: 11020-05140

$0.99

$

In Stock, only 4 left!

0

17

Echo A459000020

COVER

Note: 70196-32160

$2.49

$

In Stock, Qty 9

0

18

Echo V340000260

WASHER

Note: 70196-32150

$1.49

$

In Stock, only 2 left!

0

19

Echo A175000180

GUARD, FUEL TANK

Note: 70200-33112

$11.99

$

Usually ships in 2-4 days

0

20

Echo V203000590

SCREW - 5X16
(Superseded to V203000591)

Note: 11022-05160

$0.99

$

In Stock, Qty 20+

0

21

Echo A162000180

PROTECTOR ASSY

Note: 20011-34100

$5.49

$

Usually ships in 2-4 days

0

22

Echo V202000300

SCREW - 4X16
(Superseded to 9111304016)

Note: 11024-04160

$0.99

$

In Stock, Qty 20+

0

23

Echo A575000400

CUSHION

Note: 20011-35110

$26.99

$

Usually ships in 2-4 days

0

24

Echo A575000410

CONNECTOR, CAP

Note: 70012-35130

$18.99

$

Usually ships in 2-4 days

0

25

Echo A575000420

CLAMP - A

Note: 20011-35141

$4.99

$

Usually ships in 2-4 days

0

26

Echo A575000430

CLAMP - B

Note: 20011-35151

$4.49

$

Usually ships in 2-4 days

0

27

Echo 90010505025

SCREW - 5X25

Note: 01020-05250

$1.49

$

In Stock, Qty 20+

0

28

Echo 90060500005

LOCKWASHER - 5

Note: 01600-05131

$0.99

$

In Stock, only 4 left!

0

29

Echo 90060000005

WASHER - 5

Note: 01610-05080

$0.99

$

In Stock, Qty 20+

0

30

Echo V203000350

SCREW - 5X20
(Superseded to V203000351)

Note: 11022-05200

$0.99

$

In Stock, Qty 20+

0
