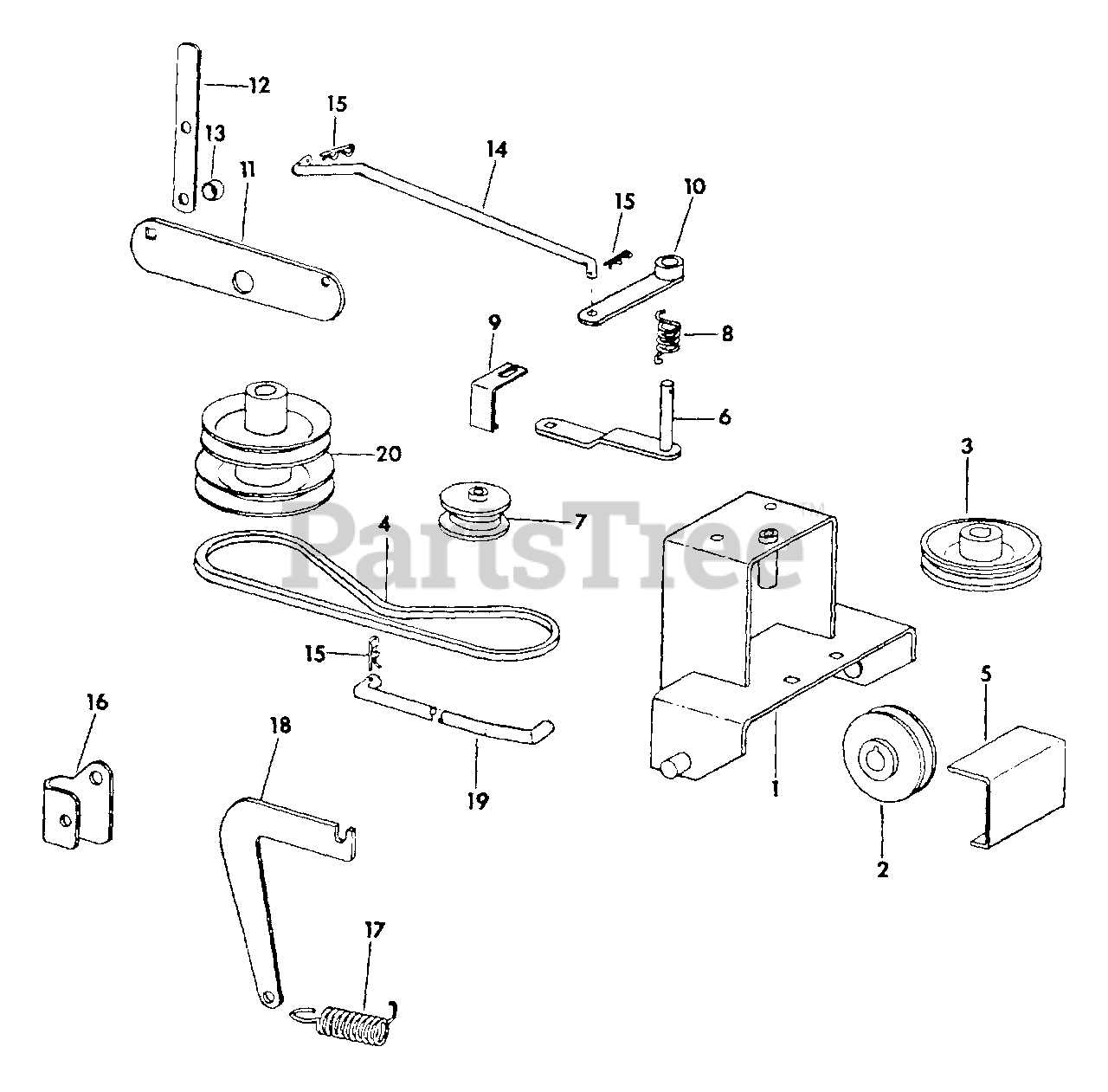

C-36 - Cub Cadet 36" Snow Thrower Attachment Drive and Controls Parts Diagram

36" Snow Thrower Attachment

Drive and Controls Parts Diagram

  • Title

1

58573-C1

BRACKET GEAR BOX

$

$

Not available

Cub Cadet IH-180120

SCREW, 3/8-16 X 3/4 ZND HEX-HD CAP
(Superseded to 710-0216)

$4.49

$

In Stock, only 4 left!

0

180173

SCREW, 1/2-13 X 1 ZND HEX-HD CAP

$

$

Not available

Cub Cadet IH-120378

NUT, 1/2-13 ZND HEX.
(Superseded to 912-0206)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 120382

WASHER, 3/8 ZND REG LOCK

$

$

Currently unavailable

Cub Cadet IH-120384

WASHER, 1/2 ZND REG LOCK
(Superseded to 936-0921)

$4.99

$

In Stock, Qty 9

0

2

58574-C1

SHEAVE W/SET SCREW

$

$

Not available

3

Cub Cadet 386274-R1

SHEAVE W/SET SCREW

$

$

Currently unavailable

4

Cub Cadet IH-58764-C1

BELT, DRIVE

$

$

Not available

5

Cub Cadet 58575-C1

SHIELD SHEAVE

$

$

Currently unavailable

Cub Cadet IH-18779-R1

SCREW, 3/8-16 X 1-1/2 ZND HEX-HD CAP
(Superseded to 710-0344)

$6.49

$

In Stock, only 3 left!

0

6

Cub Cadet IH-58576-C1

ARM, IDLER

$

$

Currently unavailable

7

Cub Cadet IH-58568-C1

PULLEY, IDLER

$

$

Not available

18479-R1

BOLT, 3/8-16 X 2 ZND SQ-NK CRG

$

$

Not available

Cub Cadet 120382

WASHER, 3/8 ZND REG LOCK

$

$

Currently unavailable

8

Cub Cadet IH-58578-C1

SPRING, TORSION

$

$

Not available

9

Cub Cadet IH-58577-C1

GUIDE, BELT

$

$

Currently unavailable

10

58579-C1

ARM, CLUTCH

$

$

Not available

17176-R1

PIN, 3/16 X 1 COILED SPRING

$

$

Not available

11

Cub Cadet IH-58580-C1

PLATE MOUNTING

$

$

Currently unavailable

18764-R1

SCREW, 5/16-18 X 3/4 ZND HEX-HD CAP

$

$

Not available

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet IH-58581-C1

LEVER CONTROL

$

$

Currently unavailable

18685-R1

BOLT, 3/8-16 X 1-1/2 ZND SQ-NK CRG

$

$

Not available

13

Cub Cadet IH-58586-C1

SPACER, CONTROL LEVER

$

$

Currently unavailable

Cub Cadet IH-446548

WASHER, 3/8 X 3/4 X .095

$

$

Currently unavailable

14

Cub Cadet IH-58582-C1

ROD, CONTROL

$

$

Currently unavailable

15

Cub Cadet IH-475579-R1

PIN, CONTROL ROD HAIR
(Superseded to 714-3020)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120394

WASHER, 13/32 X 13/16 X .065 ZND
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-120396

WASHER, 17/32 X 1-1/16 X .095 ZND
(Superseded to 936-0272)

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet IH-57218-C1

BRACKET LIFT ARM

$

$

Currently unavailable

18781-R1

SCREW 3/8-16 X 2 ZND HEX-HD CAP

$

$

Not available

Cub Cadet IH-385525-R1

NUT, 3/8-16 HEX. LOCK
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet IH-58587-C1

SPRING, HELPER

$

$

Currently unavailable

18

Cub Cadet IH-58588-C1

BRACKET, HELPER SPRING

$

$

Currently unavailable

19

58584-C1

ROD, LIFT

$

$

Not available

20

Cub Cadet IH-58585-C1

PULLEY, DRIVE

$

$

Not available

Cub Cadet IH-73235-C2

PRODUCT GRAPHIC, CAUTION

$

$

Not available

Cub Cadet 78862-C2

PRODUCT GRAPHIC, CAUTION

$

$

Currently unavailable
