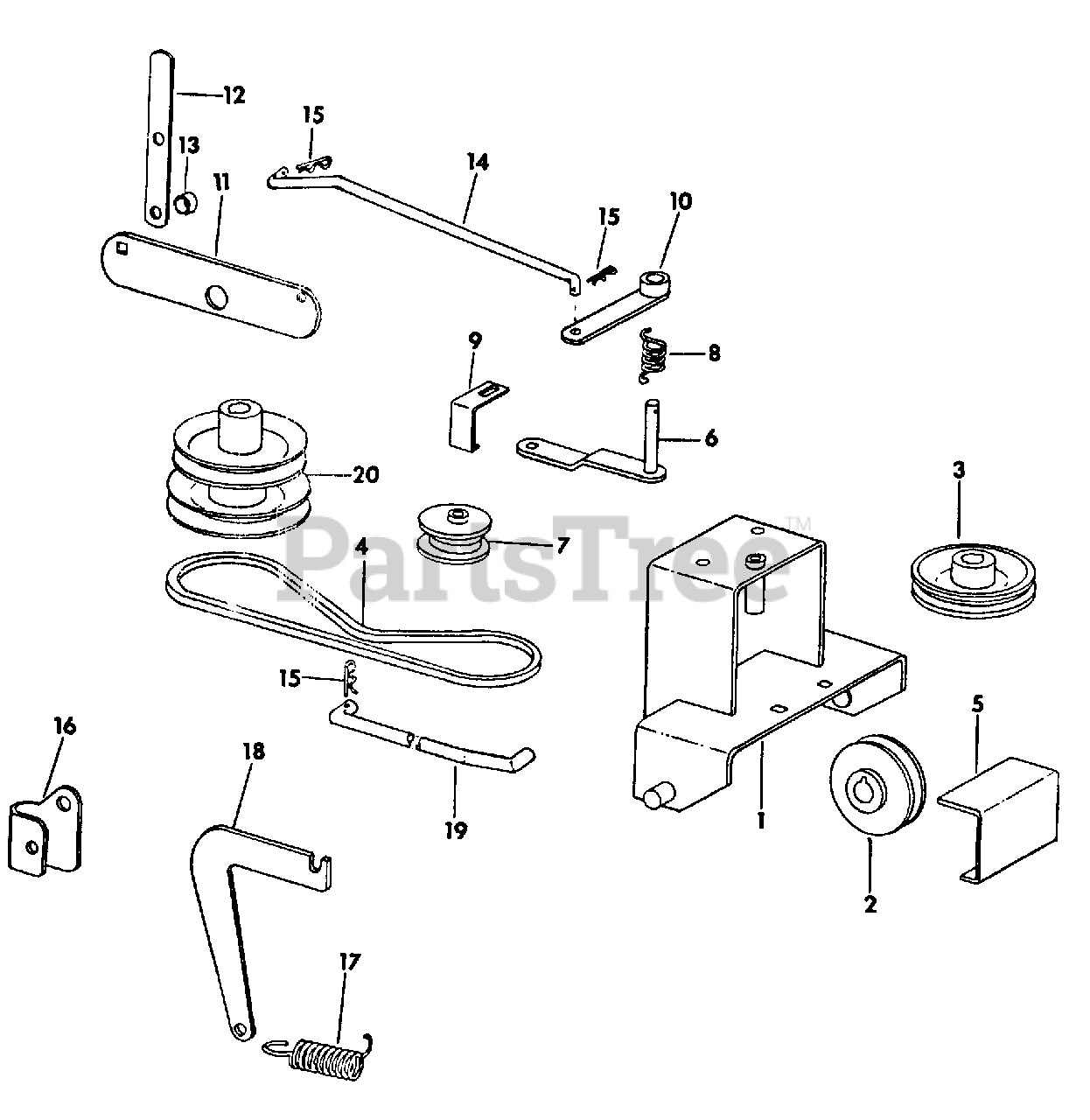

C-36 - Cub Cadet 36" Snow Thrower Attachment Drive & Controls Parts Diagram

36" Snow Thrower Attachment

Drive & Controls Parts Diagram

  • Title

1

Cub Cadet 58-573-C1

Bracket, Gear Box

$

$

Currently unavailable

Cub Cadet IH-180120

Screw, 3/8-16 X 3/4 Znd Hex-Hd Cap
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

Cub Cadet 180-173

Screw, 1/2 X 13 X 1 Znd Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet IH-120378

Nut, 1/2-13 Znd Hex
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

Washer, 3/8 Znd Reg Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120384

Washer, 1/2 Znd Reg Lock
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 58-574-C1

Sheave w/Set Screw

$

$

Currently unavailable

3

Cub Cadet 386-274-C1

Sheave w/Set Screw

$

$

Currently unavailable

4

Cub Cadet 58-764-C1

Belt, Drive

$

$

Currently unavailable

5

Cub Cadet 58-575

Shield, Sheave

$

$

Currently unavailable

Cub Cadet 18-779-R1

Screw, 3/8-16 X 1-1/2 Znd Hex-Hd Cap

$

$

Currently unavailable

6

Cub Cadet 58-576-C1

Arm, Idler

$

$

Currently unavailable

7

Cub Cadet 58-568-C1

Pulley, Idler

$

$

Currently unavailable

Cub Cadet 18-479-R1

Bolt, 3/8-16 X 2 Znd Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120382

Washer, 3/8 Znd Reg Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

8

Cub Cadet 58-578-C1

Spring, Torsion

$

$

Currently unavailable

9

Cub Cadet 58-577-C1

Guide, Belt

$

$

Currently unavailable

10

Cub Cadet 58-579-C1

Arm, Clutch

$

$

Currently unavailable

Cub Cadet 17-176-R1

Pin, 3/16 X 1 Coiled Spring

$

$

Currently unavailable

11

Cub Cadet 58-580-C1

Plate, Mounting

$

$

Currently unavailable

Cub Cadet 18-764-R1

Screw, 5/16-18 X 3/4 Znd Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet IH-120214

Washer, 5/16 Znd Reg Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 58-581-C1

Lever, Control

$

$

Currently unavailable

Cub Cadet 18-685-R1

Bolt, 3/8-16 X 1-1/2 Znd Sq-Nk Crg

$

$

Currently unavailable

13

Cub Cadet 58-586-C1

Spacer, Control Lever

$

$

Currently unavailable

Cub Cadet IH-446548

Washer, 3/8 X 3/4 X .095

$

$

Currently unavailable

14

Cub Cadet 58-582-C1

Rod, Control

$

$

Currently unavailable

15

Cub Cadet 475-579-R1

Pin, Control Rod Hair

$

$

Currently unavailable

Cub Cadet IH-120394

Washer, 13/32 X 13/16 X .065 Znd
(Superseded to 936-0140)

$

$

Not available

Cub Cadet HI-120396

Washer, 17/32 X 1-1/16 X .095 Znd

$

$

Currently unavailable

16

Cub Cadet 57-218-C1

Bracket, Lift Arm

$

$

Currently unavailable

Cub Cadet 18-781-R1

Screw, 3/8-16 X 2 Znd Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet 385-525-R1

Nut, 3/8-16 Hex Lock

$

$

Currently unavailable

17

Cub Cadet 58-587-C1

Spring, Helper

$

$

Currently unavailable

18

Cub Cadet 58-588-C1

Bracket, Helper Spring

$

$

Currently unavailable

19

Cub Cadet 58-584-C1

Rod, Lift

$

$

Currently unavailable

20

Cub Cadet 58-585-C1

Pulley, Drive

$

$

Currently unavailable
