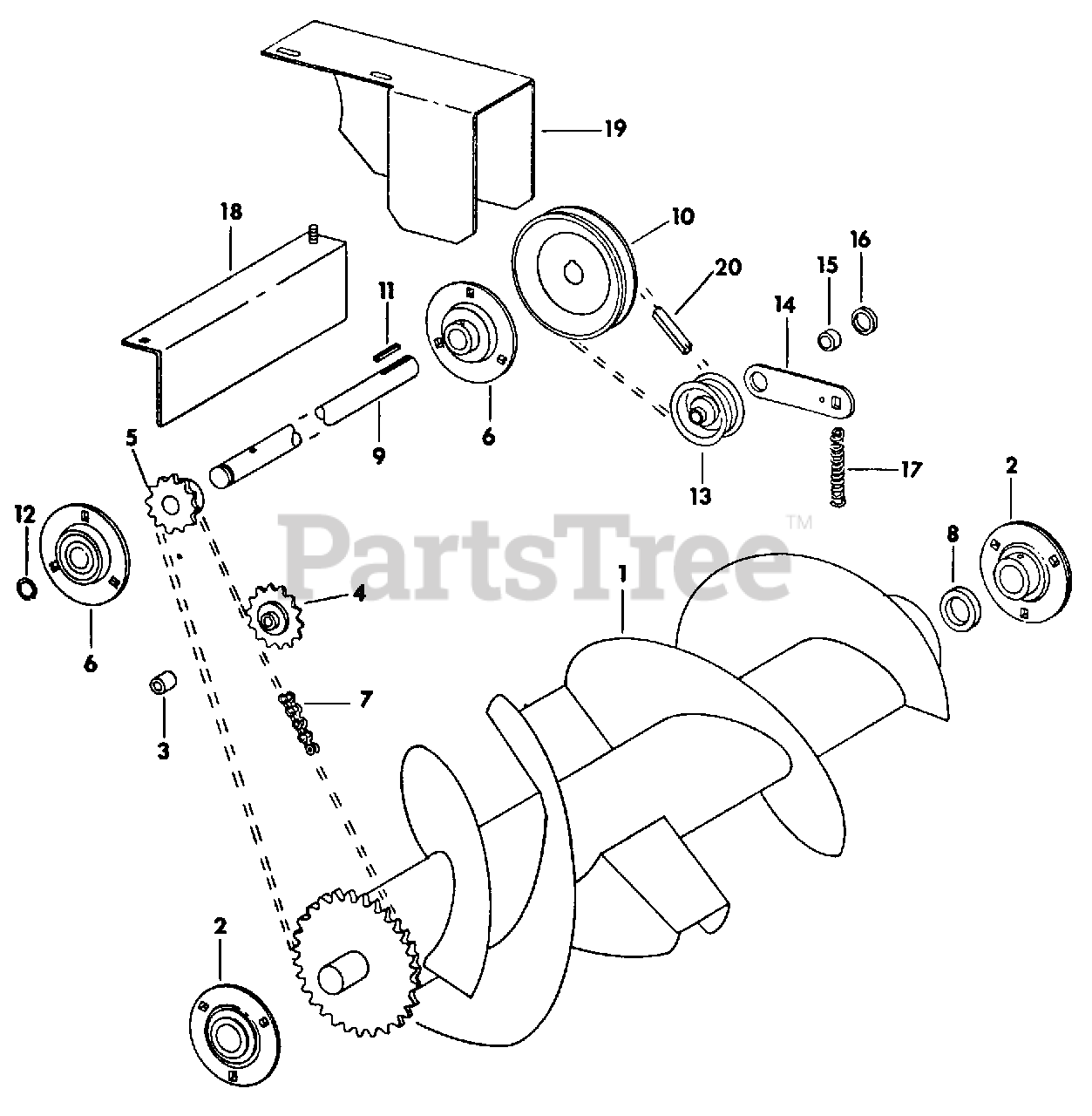

C-36 - Cub Cadet 36" Snow Thrower Attachment Motor Drive Parts Diagram

36" Snow Thrower Attachment

Motor Drive Parts Diagram

  • Title

1

Cub Cadet 58-561-C1

Rotor Assy, Welded

$

$

Currently unavailable

2

Cub Cadet 475-698-R91

Bearing w/o Locking Collar

$

$

Currently unavailable

Cub Cadet 16-897-R1

Bolt, 5/16 X 3/4 Znd Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120214

Washer, 5/16 Znd Reg Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 493-605-R1

Spacer, Chain Idler Mounting

$

$

Currently unavailable

Cub Cadet IH-180132

Screw, 3/8-16 X 2-1/4 Znd Hex-Hd Cap
(Superseded to 710-3011)

$6.49

$

In Stock, Qty 20+

0

Cub Cadet IH-446548

Washer, 3/8 X 3/4 X .065

$

$

Currently unavailable

Cub Cadet IH-120382

Washer, 3/8 Znd Med Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8-16 Znd Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 493-604-R1

Idler, Chain

$

$

Currently unavailable

5

Cub Cadet 58-762-C1

Sprocket

$

$

Currently unavailable

Cub Cadet 137-218

Pin, 5/32 X 1-1/4 Znd Cotter

$

$

Currently unavailable

6

Cub Cadet 493-606-R91

Bearing w/Set Screw

$

$

Currently unavailable

Cub Cadet 16-888-R1

Bolt, 5/16-18 X 1-1/4 Znd Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet 16-897-R1

Bolt, 5/16-18 X 3/4 Znd Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120214

Washer, 5/16 Znd Reg Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 58-763-C1

Chain, Roller

$

$

Currently unavailable

8

Cub Cadet 58-599-C1

Spacer, Rotor

$

$

Currently unavailable

9

Cub Cadet 58-562-C1

Shaft, Drive

$

$

Currently unavailable

Cub Cadet 19-689-R1

Pin, 1/4 X 1-1/4 Hv Coiled Spring

$

$

Currently unavailable

10

Cub Cadet 58-563-C1

Sheave

$

$

Currently unavailable

11

Cub Cadet Q-5-024

Key, 3/16 X 1 Sq-Parallel

$

$

Currently unavailable

12

Cub Cadet 269-181-R1

Ring, Shaft Retaining

$

$

Currently unavailable

13

Cub Cadet 58-568-C1

Pulley, Idler

$

$

Currently unavailable

14

Cub Cadet 58-564-C1

Arm, Idler

$

$

Currently unavailable

15

Cub Cadet 58-565-C1

Bushing, Idler Arm Pivot

$

$

Currently unavailable

16

Cub Cadet 58-566-C1

Spacer, Idler Arm Pivot

$

$

Currently unavailable

Cub Cadet IH-180128

Screw, 3/8-16 X 3/4 Znd Hex-Hd Cap
(Superseded to 710-0347)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-446548

Washer, 3/8 X 3/4 X .065 Znd

$

$

Currently unavailable

Cub Cadet IH-120382

Washer, 3/8 Znd Reg Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8-16 Znd Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 58-567-C1

Spring, Idler Arm Tension

$

$

Currently unavailable

Cub Cadet IH-120169

Pin, 5/32 X 1 Znd Cotter

$

$

Not available

18

Cub Cadet 58-570-C1

Shield, Shaft

$

$

Currently unavailable

Cub Cadet 16-897-R1

Bolt, 5/16-18 X 3/4 Znd Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120214

Washer, 5/16 Znd Reg Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 58-569-C1

Guard, Belt

$

$

Currently unavailable

20

Cub Cadet 58-765-C1

Belt, Drive

$

$

Currently unavailable
