C-36 - Cub Cadet 36" Snow Thrower Attachment Thrower Housing & Chute Assembly Parts Diagram

36" Snow Thrower Attachment

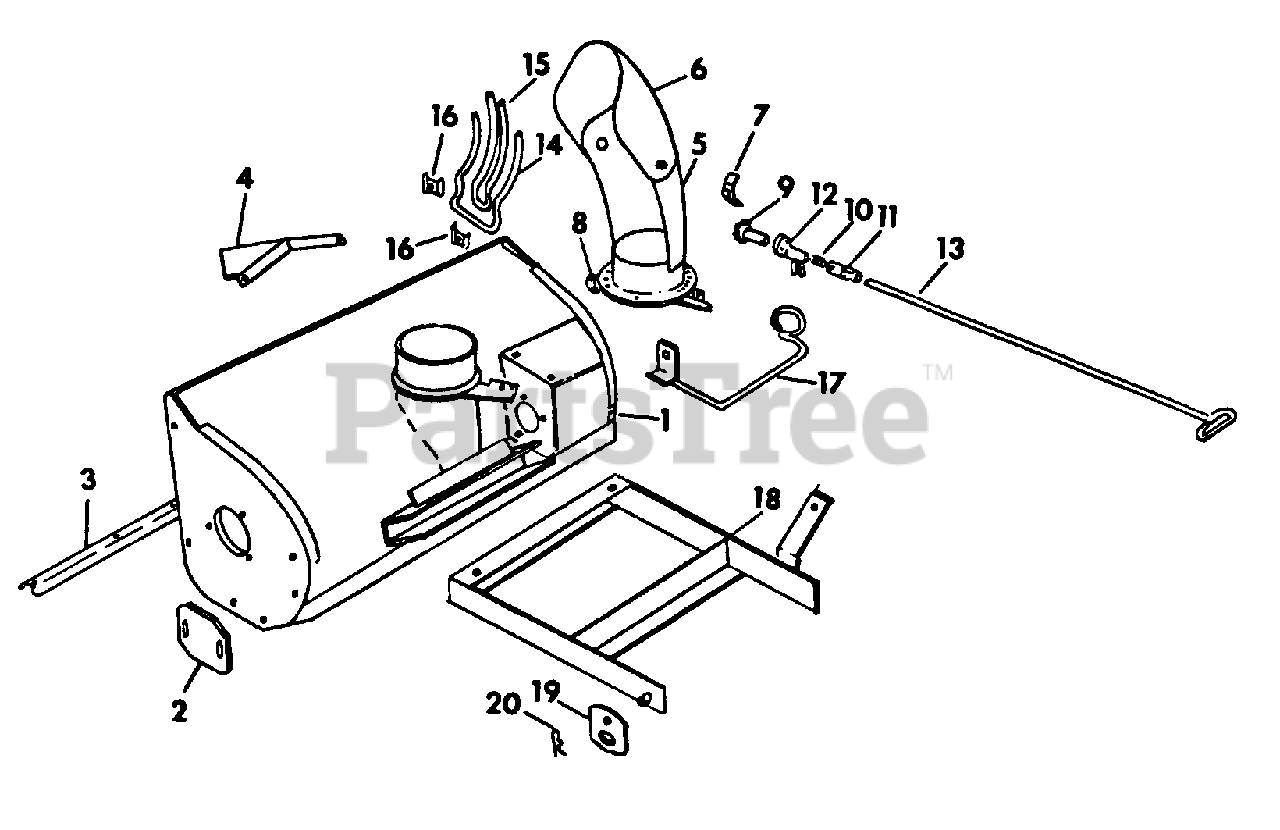

Thrower Housing & Chute Assembly Parts Diagram

  • Title

1

Cub Cadet 58-560-C1

Housing Assy, Welded

$

$

Currently unavailable

2

Cub Cadet 475-565-R1

Runner

$

$

Currently unavailable

Cub Cadet 17-351-R1

Bolt, 3/8-16 X 1 Znd Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-446548

Washer, 3/8 X 3/4 X .095

$

$

Currently unavailable

Cub Cadet IH-120382

Washer, 3/8 Znd Reg Lock
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8-16 Znd Hex
(Superseded to 712-0798)

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 397-023-R1

Blade, Scraper

$

$

Currently unavailable

Cub Cadet 18-673-R1

Bolt, 5/16-18 X 1/2 Znd Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120214

Washer, 5/16 Znd Reg Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 397-046-R1

Guard, Deflector

$

$

Currently unavailable

Cub Cadet 18-673-R1

Bolt, 5/16-18 X 1/2 Znd Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120214

Washer, 5/16 Znd Reg
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 548-195-R1

Chute Assy, Welded

$

$

Currently unavailable

6

Cub Cadet 548-196-R2

Cap, Deflector

$

$

Currently unavailable

7

Cub Cadet 548-197-R1

Nut, Wing

$

$

Currently unavailable

Cub Cadet 16-888-R1

Bolt, 5/16 X 1-1/4 Znd Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-178551

Washer, 3/8 Ext-Int lock
(Superseded to IH-178551P)

$6.49

$

Usually ships in 3-6 days

0

Cub Cadet 120-386

Washer, 5/16 X 3/4 X 16 Ga Znd

$

$

Currently unavailable

Cub Cadet 472-146-R1

Nut, 5/16-18 Lock

$

$

Currently unavailable

8

Cub Cadet 397-040-R1

Clip, Retainer

$

$

Currently unavailable

Cub Cadet 18-626-R1

Bolt, 1/4-20 X 1/2 Znd Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120380

Washer, 1/4 Znd Reg Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

9

Cub Cadet 62-415-C2

Sprocket, Chute Adjusting -12 Teeth- -Replaces 397 041 R1

$

$

Currently unavailable

10

Cub Cadet 397-042-R1

Spring

$

$

Currently unavailable

11

Cub Cadet 397-043-R1

Joint Assy, Universal

$

$

Currently unavailable

Cub Cadet IH-120169

Pin, 5/32 X 1 Znd Cotter

$

$

Not available

Cub Cadet IH-120394

Washer, 13/32 X 13/16 X .065 Znd
(Superseded to 936-0140)

$

$

Not available

12

Cub Cadet 397-044-R1

Support, Brg

$

$

Currently unavailable

Cub Cadet 12-872-R1

Bolt, 5/16-18 X 1 Znd Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120214

Washer, 5/16 Znd Reg Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 397-045-R1

Rod, Chute Control

$

$

Currently unavailable

14

Cub Cadet 542-845-R1

Rod, Chute Deflector Side

$

$

Currently unavailable

15

Cub Cadet 543-154-R1

Rod, Chute Deflector Center

$

$

Currently unavailable

16

Cub Cadet 542-842-R1

Clamp

$

$

Currently unavailable

Cub Cadet 18-626-R1

Bolt, 1/4-20 X 1/2 Znd Sq-Nk Crg

$

$

Currently unavailable

Cub Cadet IH-120380

Washer, 1/4 Znd Reg Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

Cub Cadet IH-120375

Nut, 1/4-20 Znd Hex
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 493-618-R1

Bracket, Chute Control Rod

$

$

Currently unavailable

18

Cub Cadet 58-571-C1

Bracket, Lift

$

$

Currently unavailable

Cub Cadet IH-180190

Screw, 1/2-13 X 3 Znd Hex-Hd Cap
(Superseded to 710-0182A)

$7.49

$

In Stock, only 2 left!

0

Cub Cadet IH-120384

Washer, 1/2 Znd Reg Lock
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120378

Nut, 1/2-13 Znd Hex
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 58-572-C1

Clip, Retainer

$

$

Currently unavailable

20

Cub Cadet 475-579-R1

Pin, Lift Bracket Hair

$

$

Currently unavailable
