C 42 C (954040509) - Husqvarna Grass Catcher (2002-05) BAGGER Parts Diagram

Grass Catcher

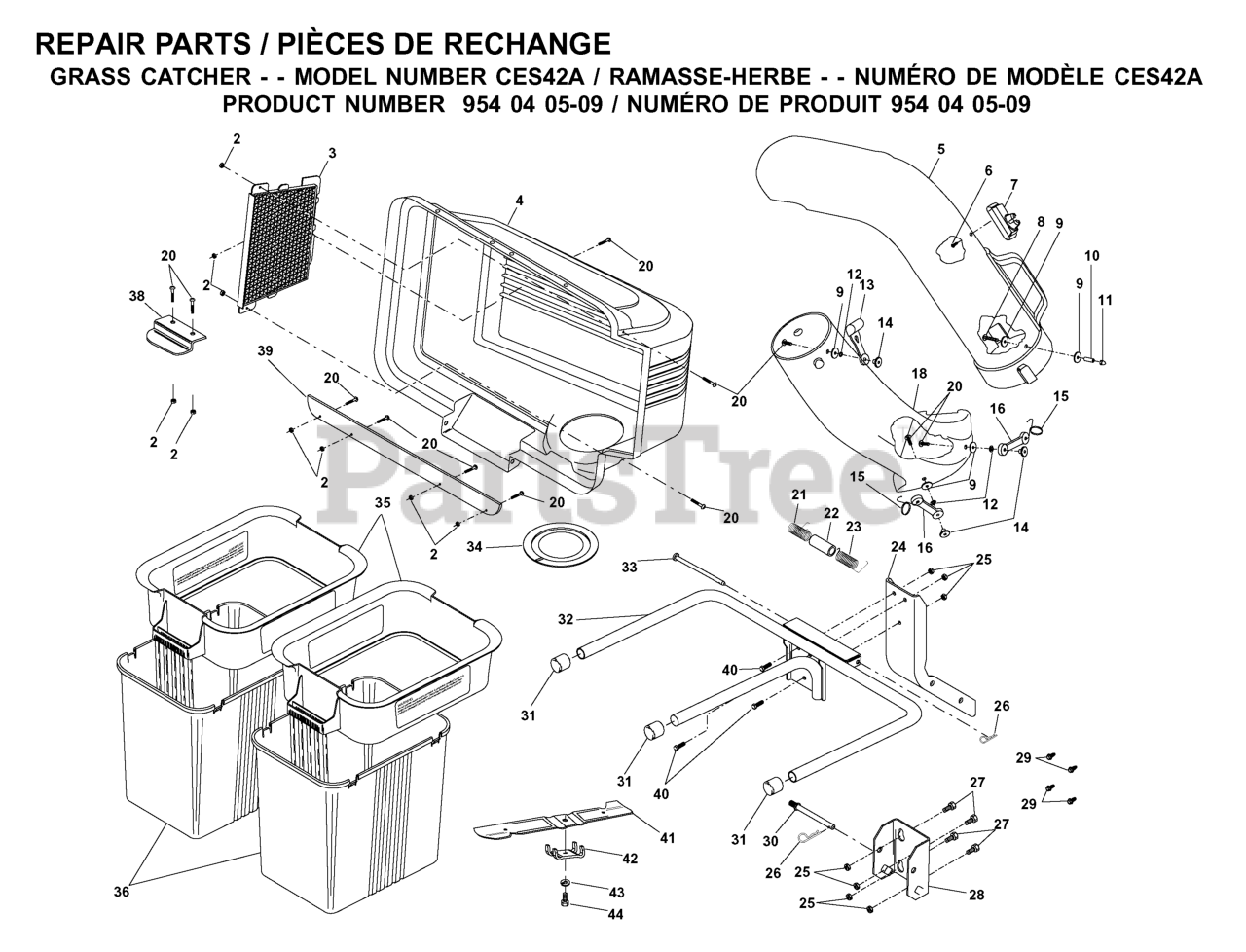

BAGGER Parts Diagram

  • Title

12

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 532132796

SPRING COVER LH

$6.49

$

In Stock, only 2 left!

0

29

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 532133235

SPACER.COVER.BAGGER

$7.49

$

In Stock, only 1 left!

0

25

Husqvarna 532063124

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532128600

HINGE PIN
(Superseded to 532192786)

$12.99

$

Usually ships in 3-10 days

0

20

Husqvarna 871161010

SCREW
(Superseded to 871081010)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 532180420

ADAPTER.BLADE.PNT.CSS.36/38/42

$

$

Not available

8

Husqvarna 532087175

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 16

0

24

Husqvarna 532180925

POST.SUPPORT.BAGGER.2BIN

$40.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532162803

LOWER CHUTE FOR 42" BAGGER
(Superseded to 592866501)

$106.99

$

In Stock, only 1 left!

0

10

Husqvarna 532007206

SPACER LT

$7.49

$

In Stock, Qty 15

0

23

Husqvarna 532132983

SPRING COVER RH

$6.49

$

In Stock, only 2 left!

0

4

Husqvarna 532161314

COVER
(Superseded to 532171061)

$121.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

3

Husqvarna 532127533

COVER SCREEN

$18.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532126919

BAGGER FRAME

$

$

Not available

5

Husqvarna 532126840

CHUTE.UPPER.42"

$120.99

$

In Stock, only 1 left!

0

27

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 532129586

CONTAINER BOTTOM

$80.99

$

In Stock, only 4 left!

0

13

Husqvarna 532109808

LATCH.HOOD.

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 532130759

RUBBER LATCH
(Superseded to 597000601)

$4.99

$

In Stock, Qty 12

0

2

Husqvarna 53269180

Nut, Crownlock #10-24

$

$

Not available

34

Husqvarna 532127534

GASKET.COVER.BAGGER

$12.99

$

In Stock, Qty 6

0

38

Husqvarna 532130895

LATCH CER38

$7.49

$

In Stock, only 2 left!

0

11

Husqvarna 532060867

NUT
(Superseded to 539108086)

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 532181712

BOLT.3/8-24X1.25 GR8
(Superseded to 583116901)

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532131137

SUPPORT POST PIN

$10.99

$

In Stock, only 3 left!

0

6

Husqvarna 818021008

SCREW

$6.49

$

In Stock, only 1 left!

0

40

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0

28

Husqvarna 532170053

MOUNTING BRACKET, BAGGER

$

$

Not available

41

Husqvarna 532180417

42" CROSS BLADE

$26.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532129585

CONTAINER TOP
(Superseded to 532183286)

$31.99

$

In Stock, only 1 left!

0

9

Husqvarna 819061216

WASHER

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532130760

HOOK LATCH
(Superseded to 597000601)

$4.99

$

In Stock, Qty 12

0

39

Husqvarna 532155042

STRIP.REINFORCE.BAGGER.2BIN.BL

$18.99

$

In Stock, only 2 left!

0

--

Husqvarna 532182126

NEEDS DESCRIPTION

$

$

Currently unavailable

31

Husqvarna 532174083

PLUG, TUBING END

$7.49

$

In Stock, only 2 left!

0

43

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

--

Husqvarna 532104419

REPL BY 532 10 50-70
(Superseded to 532105070)

$

$

Not available

7

Husqvarna 532140572

INDICATOR DUMP BAG

$8.99

$

In Stock, only 1 left!

0
