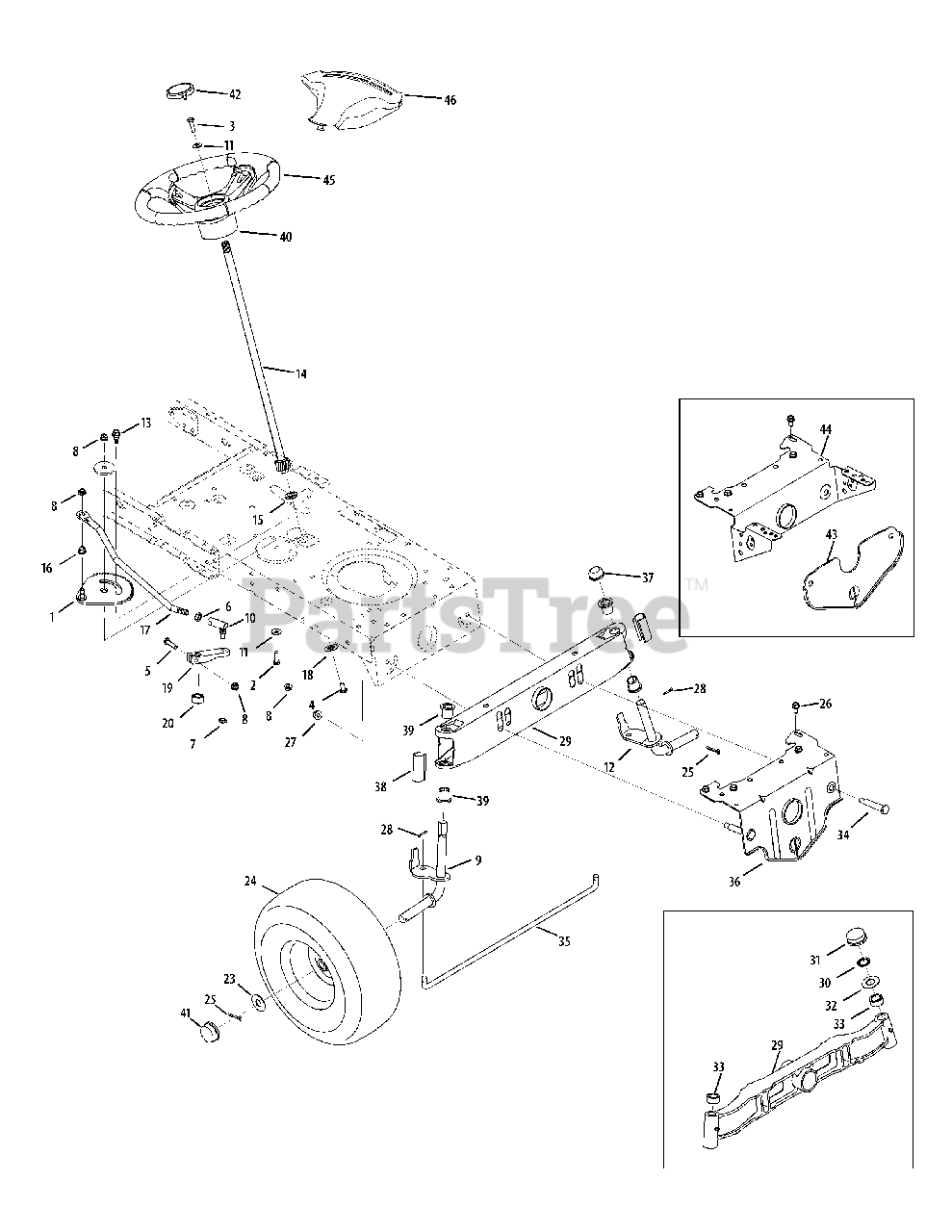

C 76 GF (13AC76GF897) - Columbia 38" Lawn Tractor (2011) Steering & Front Axle Parts Diagram

38" Lawn Tractor

Steering & Front Axle Parts Diagram

  • Title

1

MTD 617-04094

Steering Gear Assembly

$27.99

$

In Stock, Qty 20+

0

2

MTD 710-0514

Hex Hd. Cap Screw 3/8-16 x 1,00 Gr. 5

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0643

Hex Screw 5/16-18 x 1.00 Special

$6.49

$

In Stock, Qty 20+

0

4

MTD 710-1309

Machine Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-3180

Hex Screw 5/16-18 x 1.75" Lg.

$4.99

$

In Stock, Qty 20+

0

6

MTD 912-0240

Hex Jam Nut 7/16-20

$3.99

$

In Stock, Qty 20+

0

7

MTD 912-0214

Hex Cent-L Nut 3/8-24 Gr. B
(Superseded to 712-0214)

$5.99

$

In Stock, Qty 20+

0

8

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

9

MTD 638-04008P

Axle Assembly, RH

$48.99

$

In Stock, Qty 5

0

9

MTD 938-04013

Axle Assembly, RH (w/46" deck)

$52.99

$

In Stock, only 2 left!

0

10

MTD 923-0448A

Ball Joint, 7/16 - 20

$22.99

$

In Stock, Qty 20+

0

11

MTD 736-0242

Cupped Washer .345 ID x .88 OD x .060

$3.99

$

In Stock, Qty 20+

0

12

MTD 938-04007A-0637

Axle Assembly, LH

$42.99

$

In Stock, only 1 left!

0

12

MTD 938-04014A-0637

Axle Assembly, LH (w/46" deck)

$52.99

$

Usually ships in 3-6 days

0

13

MTD 738-04141

Shoulder Screw .435 x .3485, 5/16-18

$4.99

$

In Stock, Qty 20+

0

14

MTD 738-0919A

Steering Shaft, 5/8 Spline x 21.86
(Superseded to 738-0919B)

$54.99

$

In Stock, Qty 20+

0

15

MTD 941-04124

Hex Flange Bearing 5/8
(Superseded to 741-04124)

$4.99

$

In Stock, Qty 20+

0

16

MTD 941-04454

Plastic Bushing .375 ID x .5

$6.49

$

In Stock, only 4 left!

0

17

MTD 747-05385

Steering Drag Link
(Superseded to 747-05385A)

$19.99

$

In Stock, Qty 20+

0

18

MTD 948-0389

Cap, 1.25 x .16

$4.99

$

In Stock, Qty 20+

0

19

MTD 748-04065-0637

Steering Block
(Superseded to 748-04278-0637)

$19.99

$

In Stock, Qty 5

0

20

MTD 748-04068

Spacer .710 ID x .125 OD x .56

$3.99

$

In Stock, Qty 20+

0

22

MTD 738-04162A

Shoulder Spacer
(Superseded to 738-04162C)

$12.99

$

In Stock, Qty 20+

0

23

MTD 736-04228A

Flat Washer .781 ID x 1.59 OD Special
(Superseded to 736-04228B)

$4.99

$

In Stock, Qty 20+

0

24

MTD 634-04639

Wheel Assembly Complete
(Superseded to 634-05067)

Variations

MTD 634-04639-0911

Wheel Assembly Complete - Carlisle Gray (0911)

$172.99

$

In Stock, only 4 left!

0

MTD 634-04639-0961

Wheel Assembly Complete - Carlisle Gray (0961)

$90.99

$

Usually ships in 3-6 days

0

$140.99

$

Usually ships in 3-6 days

0

24

MTD 734-1731

Tire Only

Note: Not shown

Variations

MTD 734-1731-0901

Tire, 15 X 6 Square Tread - Carlisle (0901)

$46.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0902

TIRE-MULTI TRAC 15 - Dico (0902)

$41.99

$

In Stock, only 3 left!

0

MTD 734-1731-0904

Tire, 15 X 6 Square Tread - Cheng (0904)

$46.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$46.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0906

Tire, 15 X 6 Square Tread - Kenda (0906)

$46.99

$

Usually ships in 3-6 days

0

$103.99

$

In Stock, only 1 left!

0

24

MTD 634-04634

Rim Only

Note: Not shown

Variations

MTD 634-04634-0662

RIM ASM-6 X 4.5 - OYSTER GRAY (0662)

$76.99

$

Usually ships in 3-6 days

0

MTD 634-04634-4042

RIM ASM-6 X 4.5 - CRAFTSMAN GRAY (4042)

$80.99

$

Usually ships in 3-6 days

0

$66.99

$

Usually ships in 3-6 days

0

24

MTD 934-0255

Valve

Note: Not shown

$3.99

$

In Stock, Qty 20+

0

24

MTD 634-04086

Wheel Assembly Complete
(Superseded to 634-05067)

Variations

MTD 634-04086-0911

Wheel Assembly Complete - Carlisle Gray (0911)

$172.99

$

In Stock, only 4 left!

0

MTD 634-04086-0941

Wheel Assembly, Complete - Carlisle Yellow (0941)

$160.99

$

Usually ships in 3-6 days

0

MTD 634-04086-0961

Wheel Assembly Complete - Carlisle Gray (0961)

$90.99

$

Usually ships in 3-6 days

0

MTD 634-04086-0991

WHEEL ASM COMPLETE - Carlisle White (0991)

$172.99

$

Usually ships in 3-6 days

0

MTD 634-04086-4009

WHEEL ASM COMPLETE - TEE WHITE (4009)

$172.99

$

Usually ships in 3-6 days

0

MTD 634-04086-0931

WHEEL ASM COMPLETE - Carlisle Beige (0931)

$160.99

$

Usually ships in 3-6 days

0

$140.99

$

Usually ships in 3-6 days

0

24

MTD 734-1731

Tire Only

Note: Not shown

Variations

MTD 734-1731-0901

Tire, 15 X 6 Square Tread - Carlisle (0901)

$46.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0902

TIRE-MULTI TRAC 15 - Dico (0902)

$41.99

$

In Stock, only 3 left!

0

MTD 734-1731-0904

Tire, 15 X 6 Square Tread - Cheng (0904)

$46.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$46.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0906

Tire, 15 X 6 Square Tread - Kenda (0906)

$46.99

$

Usually ships in 3-6 days

0

$103.99

$

In Stock, only 1 left!

0

24

MTD 934-04081

Rim Only
(Superseded to 634-05066)

Note: Not shown

Variations

MTD 934-04081-0499

Rim Assembly, Front - CUB BEIGE (0499)

$98.99

$

Usually ships in 3-6 days

0

MTD 934-04081-0662

Rim Assembly, Front - OYSTER GRAY (0662)

$98.99

$

Usually ships in 3-6 days

0

MTD 934-04081-0674

RIM ASM-FRONT - YARDMAN YELLOW (0674)

$98.99

$

Usually ships in 3-6 days

0

MTD 934-04081-4009

Rim Assembly, Front Tee White - TEE WHITE (4009)

$98.99

$

Usually ships in 3-6 days

0

MTD 934-04081-4042

RIM ASM-FRONT - CRAFTSMAN GRAY (4042)

$98.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

24

MTD 934-0255

Valve

Note: Not shown

$3.99

$

In Stock, Qty 20+

0

25

MTD 714-04039A

Cotter Pin 5/32 x 1.25
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

26

MTD 710-04484

S-Tapp Screw 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

27

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

28

MTD 914-0474

Cotter Pin 1/8" Dia x .75
(Superseded to 714-0474)

$

$

Not available

29

MTD 683-0128B

Pivot Bar, (stamped steel)

Variations

MTD 683-0128B-0498

Steel Axle Pivot Bar Assembly - OLD CUB YELLOW (0498)

$90.99

$

In Stock, Qty 20+

0

MTD 683-0128B-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$90.99

$

In Stock, Qty 20+

0

MTD 683-0128B-0691

Steel Axle Pivot Bar Assembly - BLACK JACK (0691)

$90.99

$

In Stock, Qty 20+

0

MTD 683-0128B-0606

Pivot Bar - MAJESTIC ORANGE (0606)

$90.99

$

In Stock, Qty 20+

0

MTD 683-0128B-0638

Pivot Bar - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

MTD 683-0128B-0650

Steel Axle Pivot Bar Assembly - RED METALLIC (0650)

$90.99

$

In Stock, Qty 20+

0

MTD 683-0128B-0665

Steel Axle Pivot Bar Assembly - YARDMAN GREEN (0665)

$90.99

$

In Stock, Qty 20+

0

MTD 683-0128B-0709

Steel Axle Pivot Bar Assembly - MASTERCRAFT GREEN (0709)

$90.99

$

In Stock, Qty 20+

0

MTD 683-0128B-4062

Steel Axle Pivot Bar Assembly - COOL GRAY (4062)

$90.99

$

In Stock, Qty 20+

0

$83.99

$

Usually ships in 3-6 days

0

29

MTD 919-04177A

Pivot Bar (cast iron)
(Superseded to 919-04177E)

$231.99

$

Usually ships in 3-6 days

0

30

MTD 726-04035

Push Nut 3/4"

$6.49

$

In Stock, Qty 12

0

31

MTD 731-04693

Axle End Cap

$4.49

$

In Stock, Qty 16

0

32

MTD 936-0316

Flat Washer .78 x 1.59 x .060
(Superseded to 736-0316)

$3.99

$

In Stock, Qty 20+

0

33

MTD 748-04068

Spacer .71 x .125 x .56

$3.99

$

In Stock, Qty 20+

0

34

MTD 738-04128

Shoulder Screw .500 x 2.380, 3/8-16

$7.49

$

In Stock, only 2 left!

0

35

MTD 747-04299A

Tie Rod

$28.99

$

In Stock, Qty 6

0

36

MTD 783-05326B-0637

Pivot Bar Bracket

$38.99

$

Usually ships in 3-6 days

0

37

MTD 726-0341

Push Cap, .750

$4.49

$

In Stock, Qty 20+

0

38

MTD 731-04057A

Axle End Cap, Standard

$4.99

$

In Stock, Qty 20+

0

39

MTD 741-0660A

Flange Bearing .760 ID x .937 OD

$2.99

$

In Stock, Qty 20+

0

40

MTD 631-04028

Steering Wheel, Standard Grip

$64.99

$

In Stock, Qty 7

0

41

MTD 931-0484A

Plastic Hub Cap

$5.99

$

In Stock, Qty 20+

0

42

MTD 731-04039

Steering Wheel Cap (w/o logo)

$7.99

$

In Stock, Qty 6

0

42

MTD 731-04040

Steering Wheel Cap (sprig logo)

$9.49

$

In Stock, only 1 left!

0

43

MTD 783-04568

Front Deck Hanger Bracket

Variations

MTD 783-04568-0637

Deck Hanger Bracket - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

MTD 783-04568-4008

Deck Hanger Bracket - WINE RED (4008)

$47.99

$

Usually ships in 3-6 days

0

MTD 783-04568-0691

BRACKET:DECK HANGE - BLACK JACK (0691)

$47.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

44

MTD 783-04601C

Pivot Bracket

Variations

MTD 783-04601C-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

MTD 783-04601C-0638

BRACKET-PIVOT BAR - MTD/TROY-BILT RED (0638)

$49.99

$

Usually ships in 3-6 days

0

MTD 783-04601C-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$49.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

45

MTD 631-04028

Steering Wheel

$64.99

$

In Stock, Qty 7

0

45

MTD 631-04008A

Steering Wheel, Soft Grip
(Superseded to 631-04008B)

$88.99

$

In Stock, Qty 10

0

46

MTD 731-04065A

Steering Wheel Cover (MTD)

$13.99

$

Usually ships in 3-6 days
