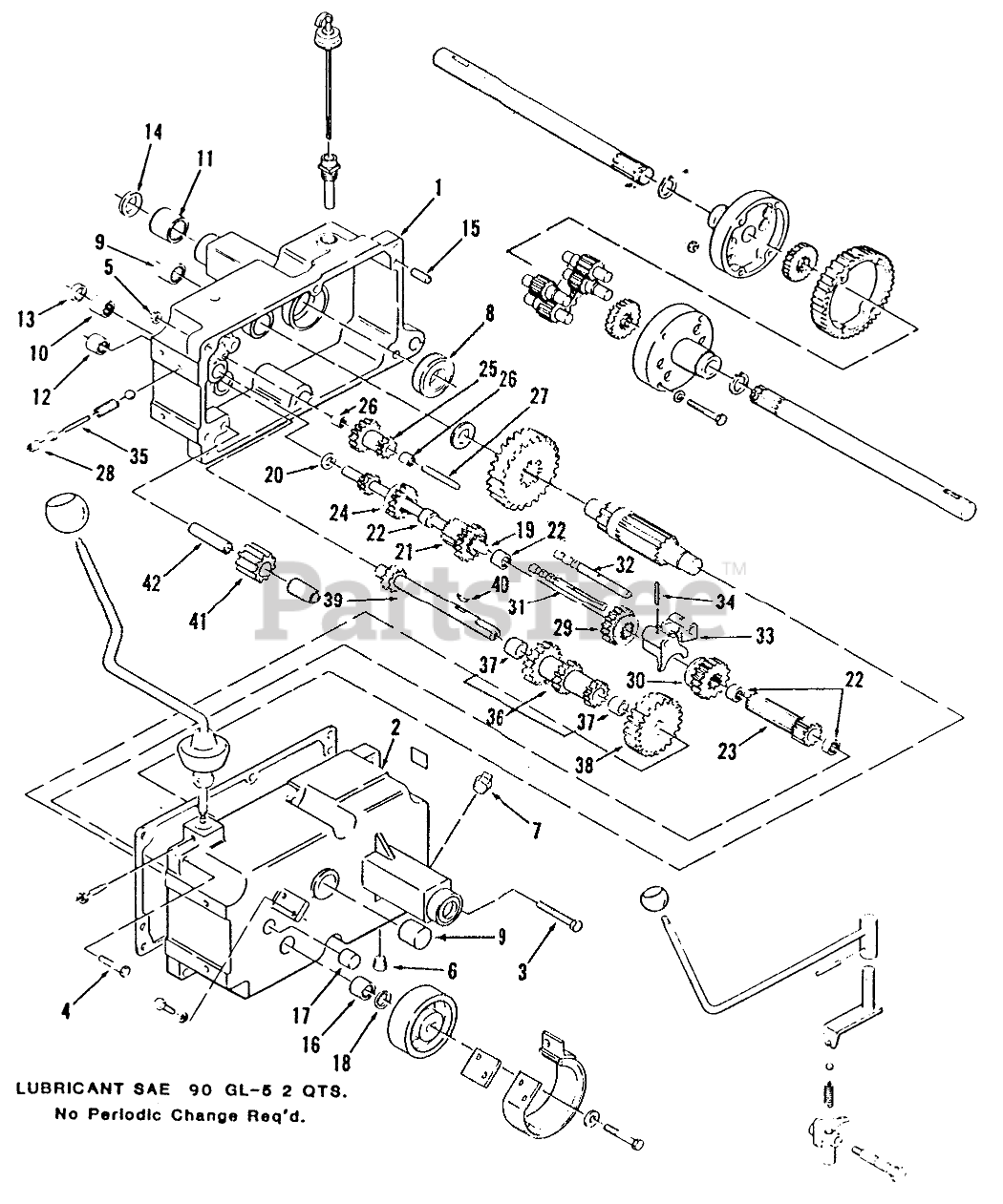

C1-12R801 (512-D) - Toro Lawn Tractor (1986) MECHANICAL TRANSMISSION-8-SPEED Parts Diagram

Lawn Tractor

MECHANICAL TRANSMISSION-8-SPEED Parts Diagram

  • Title

Toro 110996

Transmission Assembly

$

$

Not available

Toro 110995

Transmission Assembly
(Superseded to 94-6671)

$6405.99

$

Usually ships in 3-6 days

0

1

Toro 111204

CASE TRANS RH

$1467.99

$

Usually ships in 3-6 days

0

Toro 111200

Case Trans RH
(Superseded to 111200-01)

$

$

Not available

2

Toro 111203

CASE TRANS LH

$

$

Not available

Toro 111198

Case Trans LH
(Superseded to 95-5143-01)

$1150.99

$

Usually ships in 3-6 days

0

3

Toro 908043

HHCS
(Superseded to 323-15)

$1.99

$

In Stock, Qty 19

0

4

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

5

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

6

Toro 943460

PLUG 1/4 PIPE ALLEN
(Superseded to 285-22)

$1.49

$

Usually ships in 3-6 days

0

7

Toro 943420

Plug
(Superseded to 281-2)

$2.49

$

Usually ships in 3-6 days

0

8

Toro 111199

BEARING-BALL

$122.99

$

In Stock, only 4 left!

0

9

Toro 1532

BEARING-NEEDLE

$50.99

$

In Stock, only 4 left!

0

10

Toro 1542

BEARING-NEEDLE

$37.99

$

In Stock, only 2 left!

0

11

Toro 1528

BEARING-NEEDLE

$51.99

$

In Stock, only 1 left!

0

Toro 9416

BEARING

$70.99

$

Usually ships in 3-6 days

0

12

Toro 1529

BEARING-NEEDLE

$43.99

$

Usually ships in 3-6 days

0

13

Toro 100442

SEAL-OIL

$6.49

$

Usually ships in 3-6 days

0

14

Toro 100863

OIL SEAL

$14.99

$

In Stock, Qty 10

0

Toro 100443

SEAL-OIL

$11.99

$

In Stock, only 2 left!

0

15

Toro 3915

PIN-DOWEL

$7.99

$

Usually ships in 3-6 days

0

16

Toro 1523

BEARING-NEEDLE

$37.99

$

Usually ships in 3-6 days

0

17

Toro 1531

Bearing Needle

$

$

Not available

18

Toro 100441

SEAL-OIL

$8.49

$

In Stock, only 3 left!

0

19

Toro 7201

SHAFT-INPUT

$

$

Not available

20

Toro 7418

WASHER-THR

$6.49

$

In Stock, Qty 6

0

21

Toro 7204

GEAR

$

$

Not available

22

Toro 1518

BEARING-NEEDLE

$26.99

$

Usually ships in 3-6 days

0

23

Toro 5175

GEAR

$272.99

$

Usually ships in 3-6 days

0

24

Toro 7205

GEAR-SLIDING

$

$

Not available

25

Toro 7206

Gear
(Superseded to 100-1338)

$273.99

$

Usually ships in 3-6 days

0

26

Toro 7207

BEARING-NEEDLE

$30.99

$

Usually ships in 3-6 days

0

27

Toro 7208

GEAR-SHAFT REDUCTION

$11.99

$

In Stock, only 2 left!

0

28

Toro 1243

CUP-PLUG

$5.49

$

Usually ships in 3-6 days

0

29

Toro 5173

GEAR-HI AND 2ND

$146.99

$

Usually ships in 3-6 days

0

30

Toro 5174

GEAR-LOW AND REVERSE

$192.99

$

Usually ships in 3-6 days

0

31

Toro 5615

RAIL-SHIFT

$116.99

$

Usually ships in 3-6 days

0

32

Toro 5616

RAIL-REAR SHIFT

$78.99

$

Usually ships in 3-6 days

0

33

Toro 3503

FORK-SHIFT

$136.99

$

Usually ships in 3-6 days

0

34

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 10

0

35

Toro 5614

PIN-SHIFT

$

$

Not available

36

Toro 7269

GEAR-CLUSTER

$

$

Not available

37

Toro 1504

BUSHING-BRONZE

$43.99

$

Usually ships in 3-6 days

0

38

Toro 3527

GEAR-CLUSTER SHAFT

$

$

Not available

39

Toro 9840

Cluster Shaft
(Superseded to 704156)

$

$

Not available

40

Toro 937089

KEY-WOODRUFF

$1.99

$

In Stock, Qty 5

0

41

Toro 4204

GEAR/BUSHING ASM-REVERSE IDLER

$161.99

$

Usually ships in 3-6 days

0

42

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available

Toro 111196

END CAP-DIFFERENTIAL

$254.99

$

In Stock, only 2 left!

0

Toro 911423

BOLT-HEX
(Superseded to 1-800805)

$5.49

$

In Stock, Qty 20+

0

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1066.99

$

Usually ships in 3-6 days

0

Toro 101889

GEAR-AXLE DIFFERENTIAL

$85.99

$

Usually ships in 3-6 days

0

Toro 105875

AXLE-REAR

$358.99

$

Usually ships in 3-6 days

0

Toro 105876

RING-SNAP

$4.99

$

In Stock, only 2 left!

0

43

Toro 1516

BUSHING

$12.99

$

Usually ships in 3-6 days

0

44

Toro 106447

ASSY-DIPSTICK

$

$

Not available

45

Toro 106448

NIPPLE-TRANS FILL

$

$

Not available

46

Toro 3912

GASKET-TRANSMISSION

$8.99

$

In Stock, Qty 5

0

47

Toro 1239

SETSCREW

$10.99

$

In Stock, Qty 9

0

48

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

49

Toro 3577

COVER-DUST

$

$

Not available

50

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

51

Toro 102974

GEAR ASM

$

$

Not available

52

Toro 101625

PINION SHAFT

$

$

Not available

53

Toro 101626

GEAR

$

$

Not available

54

Toro 108758

KNOB

$13.99

$

In Stock, Qty 5

0

55

Toro 3517

BALL-DETENT

$0.99

$

In Stock, only 4 left!

0

56

Toro 106030

SPRING-SHIFT STOP

$2.99

$

Usually ships in 3-6 days

0

57

Toro 7213

BOLT-DETENT

$54.99

$

Usually ships in 3-6 days

0

58

Toro 7214

SHIFT ASM

$40.99

$

Usually ships in 3-6 days

0

59

Toro 7209

Shift Fork
(Superseded to 116636-03)

$

$

Not available

60

Toro 3517

BALL-DETENT

$0.99

$

In Stock, only 4 left!

0

61

Toro 106030

SPRING-SHIFT STOP

$2.99

$

Usually ships in 3-6 days

0

62

Toro 110727

SHIFT ROD ASM

$79.99

$

Usually ships in 3-6 days

0

63

Toro 933184

PIN-SPIROL

$1.49

$

In Stock, Qty 8

0

64

Toro 111197

END CAP-DIFFERENTIAL

$

$

Not available

65

Toro 908138

Bolt 3/8-16 x 3 1/4
(Superseded to 323-20)

$3.49

$

In Stock, only 4 left!

0

66

Toro 107374

WASHER

$0.99

$

Usually ships in 3-6 days

0

67

Toro 108881

NUT

$6.49

$

In Stock, Qty 10

0

68

Toro 105063

DIFFERENTIAL BULL GR

$

$

Not available

70

Toro 101623

GEAR-PINION, 11T

$113.99

$

Usually ships in 3-6 days

0

71

Toro 3908

AXLE GEAR

$152.99

$

Usually ships in 3-6 days

0

72

Toro 5961

AXLE-REAR

$

$

Not available

73

Toro 7939

Snap Ring
(Superseded to 32151-36)

$4.99

$

In Stock, Qty 11

0

74

Toro 110725

ASM-Rod
(Superseded to 95-7684)

$171.99

$

In Stock, only 1 left!

0

75

Toro 1001

Knob

$

$

Not available

76

Toro A-1392

MANUAL

$

$

Not available
