C3-12K502 (112-C) - Toro Rear-Engine Riding Mower (1988) ELECTRIC STARTER Parts Diagram

Rear-Engine Riding Mower

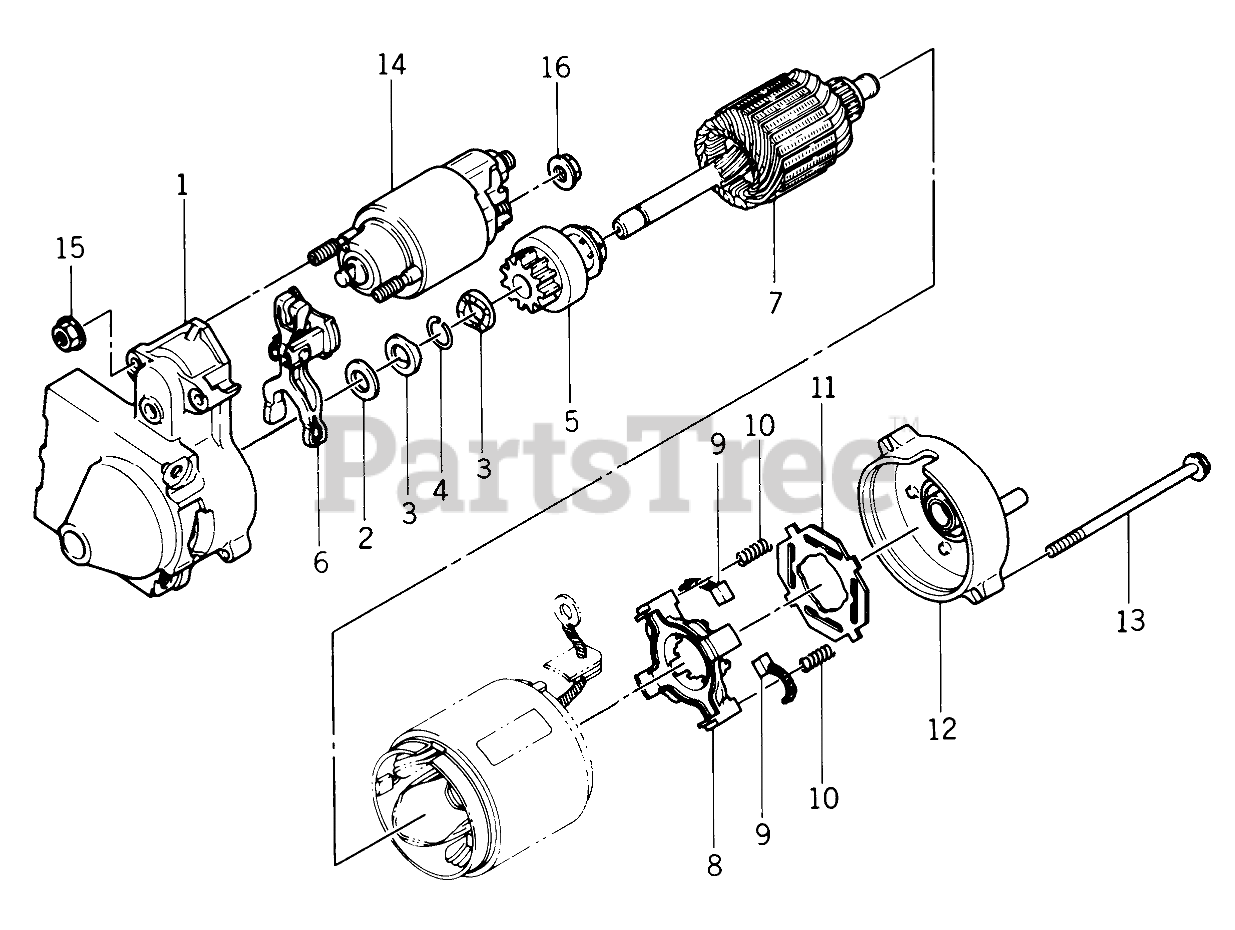

ELECTRIC STARTER Parts Diagram

  • Title

1

Toro KW10077

COVER ASSY

$

$

Not available

2

Toro KW10201

WASHER

$

$

Not available

3

Toro KW10132

STOPPER

$

$

Not available

4

Toro KW10219

RING-SNAP

$

$

Not available

5

Toro KW10047

CLUTCH ASSY

$

$

Not available

6

Toro KW10051

LEVER-SHIFT

$

$

Not available

7

Toro KW10084

ARMATURE

$

$

Not available

8

Toro KW10048

HOLDER-BRUSH

$

$

Not available

9

Toro KW10081

BRUSH

$

$

Not available

10

Toro KW10082

SPRING-BRUSH

$

$

Not available

11

Toro KW10073

INSULATOR

$37.99

$

Usually ships in 3-6 days

0

12

Toro KW10078

COVER ASSY

$

$

Not available

13

Toro KW10190

BOLT

$38.99

$

Usually ships in 3-6 days

0

14

Toro KW10098

SWITCH ASSY

$

$

Not available

15

Toro KW10197

NUT

$

$

Not available

16

Toro KW10198

NUT

$

$

Not available
