C5-60SC04 - Toro 60" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) SIDE DISCHARGE MOWER-60 IN. (152 CM) VEHICLE IDENTIFICATION NUMBER C5-60SC04 Parts Diagram

60" Side-Discharge Mower Deck

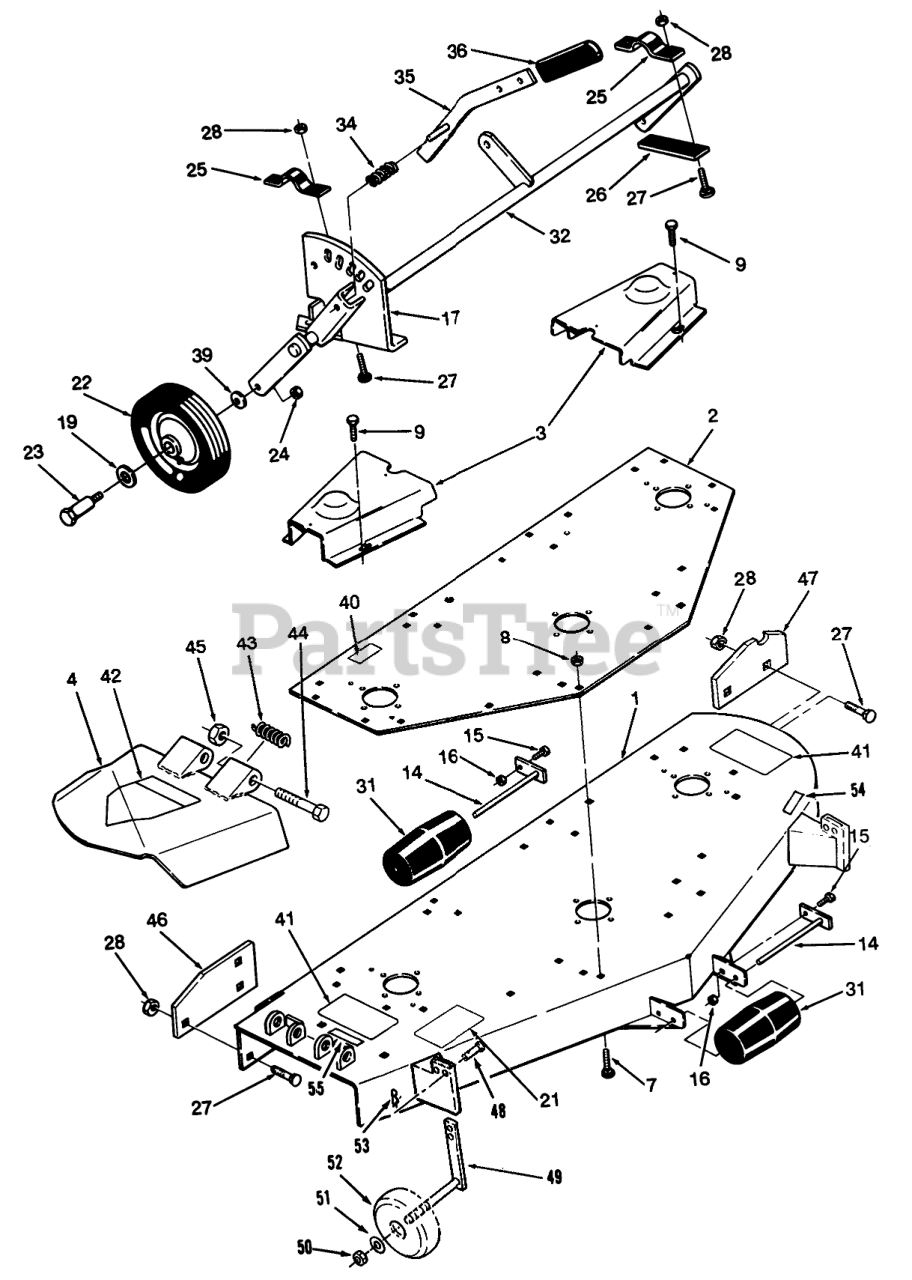

SIDE DISCHARGE MOWER-60 IN. (152 CM) VEHICLE IDENTIFICATION NUMBER C5-60SC04 Parts Diagram

  • Title

1

Toro 79-5370

Deck
(Superseded to 92-6507)

$2677.99

$

Usually ships in 3-6 days

0

2

Toro 113053

PLATE-TOP REINFOR R

$

$

Not available

3

Toro 115346

Belt Cover
(Superseded to 115346-01)

$235.99

$

Usually ships in 3-6 days

0

4

Toro 119620

Chute Guard Assembly
(Superseded to 92-6508)

$

$

Not available

7

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

14

Toro 113603

ROLLER-SHAFT

$40.99

$

Usually ships in 3-6 days

0

15

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 121190

Quadrant
(Superseded to 121190-01)

$

$

Not available

19

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 115223

DECAL-BELT INSTALL

$

$

Not available

22

Toro 114275

ASSY-GAUGE WHEEL

$

$

Not available

23

Toro 323-15

SCREW-HH

$1.99

$

In Stock, Qty 19

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 113057

Clamp
(Superseded to 113057-03)

$

$

Not available

26

Toro 113056

BAR

$

$

Not available

27

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

28

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

31

Toro 113349

ROLLER-ANTI SCALP

$67.99

$

In Stock, only 2 left!

0

32

Toro 113058

Gage Wheel Support
(Superseded to 113058-01)

$495.99

$

Usually ships in 3-6 days

0

34

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 9

0

35

Toro 102431

Lever
(Superseded to 102431-01)

$

$

Not available

36

Toro 102597

GRIP

$1.99

$

In Stock, only 1 left!

0

39

Toro 109901

SPACER

$28.99

$

Usually ships in 3-6 days

0

40

Toro 111655

DECAL-HOC

$3.49

$

Usually ships in 3-6 days

0

41

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

42

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

43

Toro 40-6230

SPRING

$38.99

$

Usually ships in 3-6 days

0

44

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.49

$

In Stock, only 1 left!

0

45

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

46

Toro 79-1240

Wear Plate RH
(Superseded to 79-1240-01)

$

$

Not available

47

Toro 79-1230

PLTE WEAR LH
(Superseded to 79-1230-03)

$

$

Not available

48

Toro 932963

Pin-Clevis
(Superseded to 9329634)

$3.99

$

Usually ships in 3-6 days

0

49

Toro 68-2350

GAGE-WHEEL

$115.99

$

In Stock, only 3 left!

0

50

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

51

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

52

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$22.99

$

In Stock, Qty 20+

0

53

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 14

0

54

Toro 68-3380

DECAL - WHEEL ADJUSTMENT

$11.99

$

Usually ships in 3-6 days

0

55

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

Toro 112403

DECAL-OVERLAY

Note: Not illustrated

$7.49

$

Usually ships in 3-6 days

0

Toro 3314758

Manual-Operators

Note: Not illustrated

$

$

Currently unavailable
